1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque
1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque
1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque
1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque
Specifications
Brand Name :
Runpaq
Model Number :
K26
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton
Normal volt :
3.6VDC lithium battery
Application :
zone valve open / close
Empty run current :
<25 mA (23 C) (motor #320)
Current at full loading :
about 550 mA
Motor :
DC5V #320 motor
Torque :
1.8NM (1600:1)
Open / close time :
< 8 S (1600:1)
Reduction ratio :
1600 : 1 (For DN15, 20 mini motorized ball valve);
Model :
K26
Description

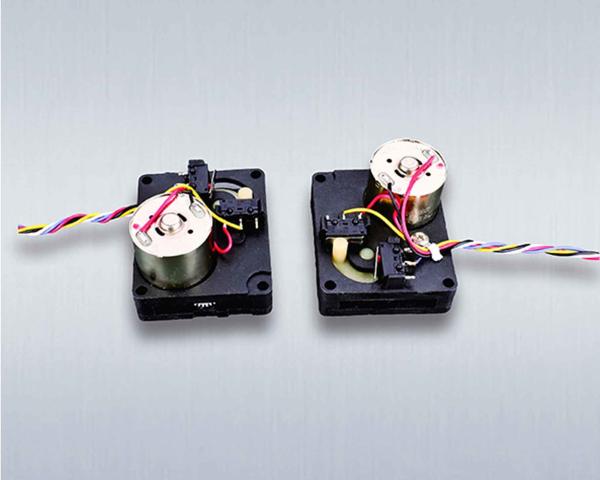

1NM dC actuator motor for 3 way zone valve, flow control valve1/2

Product description

The water flow control or heat control in water utility, HVAC, such as mini motorized ball valve , smart water meter with ball valve, zone valve, heat control, need be made through a mini motorized ball valve. Our DC2.5-5V driven motor actuators are available with different torque, speed reduction ratio and rotate speed. The actuator motor is well designed for the motorized ball valve open or close. The valve diameter range: DN15, DN20, DN25, DN32, DN40, up to DN80.The torque range from 1.8NM to 4.5 NM.


Technical data-Model K26
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <500 mA (motor #320)
4. Torque: >1.8 NM (1600:1)
5. Open/close time: <8 S (1600:1)
6. Velocity reduction ratio: for DN15, DN20 ball valve (1600:1)
7. Protection: 0

Wiring definition

No Color of wire Definition
1 blue on position signal, valve open
2 white on position signal, public
3 yellow on position signal, valve close
4 black positive (+)
5 red negative (-)

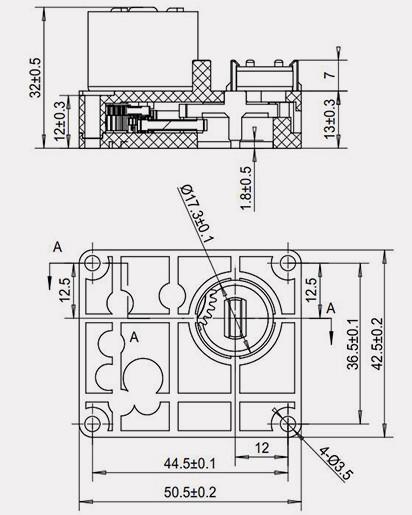

Production overview
1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque1NM DC5V 3 Way Zone Valve Motor Flow Control 1.8NM Torque
