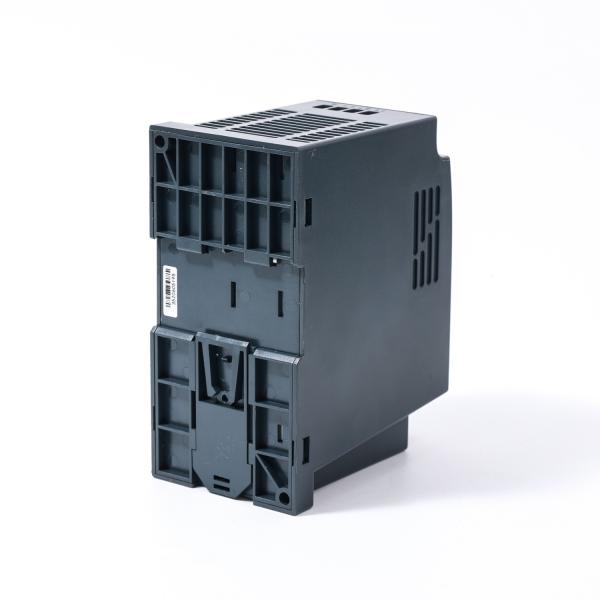

Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw
Specifications
Brand Name :
ZONCN
Model Number :
NZ200-0R75G-4
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T,L/C,Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
variable frequency drive
Product name :
frequency inverter
Brand :
ZONCN
Series :
NZ200
Model :
NZ200-0R75G-4
Input Voltage :
380v/440v/480v
Control mode :
Vector control
Power range :
0.4kw-630kw
Price :
Economical
Panel :
LED display
Description

Chinese Inverter VFD 380v Three Phase Variable Frequency Drives 0.75kw 1.5kw

NZ200 VFD Inverter Features

Features of ZONCN NZ200 Series Economical Vector VFD Inverter

  1. Advanced Motor Control

    • The VFD inverter supports open-loop vector control and V/F control, ensuring precise speed regulation and smooth motor operation.

  2. Strong Overload Capacity

    • This VFD inverter can handle 150% rated current for 60 seconds and 180% rated current for 3 seconds, making it suitable for heavy-duty applications.

  3. High Performance & Environmental Adaptability

    • The VFD inverter delivers superior performance and operates reliably in harsh industrial environments.

  4. Compact & Easy Installation

    • With a simple structure and compact size, this VFD inverter is easy to install, saving space in control cabinets.

  5. Economical Vector Control with High Torque

    • As an economical vector VFD inverter, it provides high torque output, ensuring smooth motor startup even under heavy loads.

  6. Enhanced Reliability with Anti-Disturbance Features

    • The VFD inverter features instantaneous power loss ride-through and fast current limiting, reducing frequent fault alarms.

  7. Comprehensive Protection Functions

    • This VFD inverter includes output phase loss, overcurrent, overvoltage, overload, and overheating protection, improving system safety.

  8. PMSM Control Support (Z200T Series)

    • The Z200T series VFD inverter supports permanent magnet synchronous motor (PMSM) control, expanding its application range.

NZ200 VFD Specification

VFD Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450

ZONCN NZ200 VFD Applications
