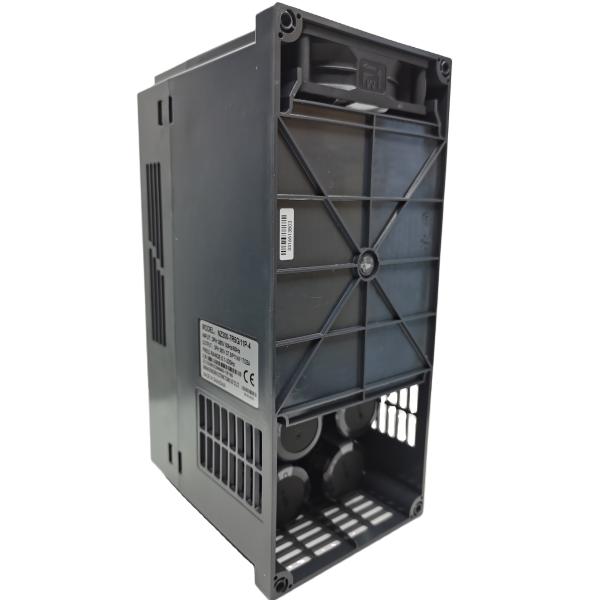

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
Specifications
Brand Name :
ZONCN
Model Number :
NZ200-7R5G-4
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Product name :
frequency inverter
Brand :
ZONCN
rated voltage :
380v
Power :
7.5kw/10hp
Output current :
17A
Control mode :
Vector control
Communication :
RS485
condition :
100% new
Model :
NZ200-7R5G-4
Warranty :
18 months
Description

ZONCN NZ200 Series Econonic Vector control inverter


Company introduction

ZONCN, a professional inverter manufacturer which was established in 2006. Our factories both located in Shanghai and Wuhu city. The voltage ranges from 110v to 1140v, powers range from 0.4kw to 1000kw. Our factory has passed ISO 9001 quality control system and all the products have CE certification. Our annual sales quantity is more than 1 Million units.

At present, NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF(IP65/IP54 protection), are ZONCN's general series of inverter, which are widely used in various applications, such as conveyor, water treatment, textile, CNC machine, fan and pump, packaging and printing, injection&extrusion machines, industrial washing machine, air compressor and many other industrial applications.



ZONCN will always warmly welcome you to visit our factory for business negotiation and cooperation.

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters

Inverter Nameplate Description

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters

Inverter Specification

Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450





Inverter Dimension

A. 0.4kw-37kw

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters


B. 45kw-450kw
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters




Inverter Packing
NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters




Inverter Application

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters

Inverter Recommendation

NZ200 VFD 7.5KW AC DRIVES 380V Variable Frequency Drive 380v AC Inverters
