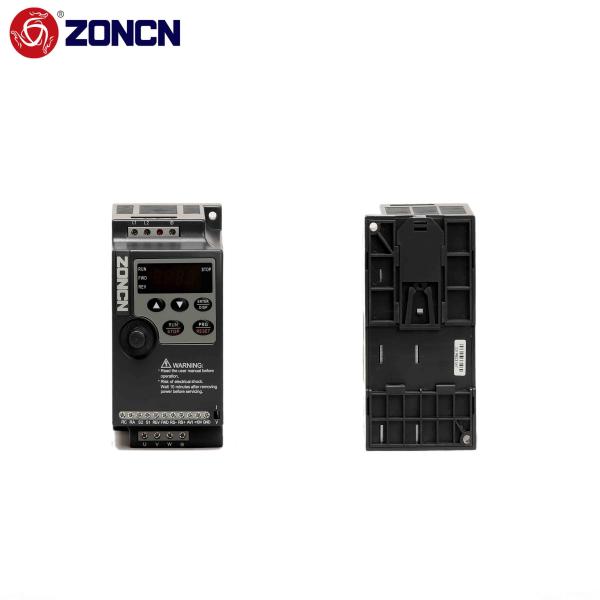

Sensorless Vector Control Low Voltage Inverter 220v NZ100-2R2G-2
Sensorless Vector Control Low Voltage Inverter 220v NZ100-2R2G-2
Specifications
Brand Name :
ZONCN
Model Number :
NZ100-2R2G-2
Certification :
CE+KC
Place of Origin :
Shanghai, China
MOQ :
1 unit
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000 units a month
Delivery Time :
7-30 work days
Packaging Details :
Carton；
Ambient Temperature :
-10°C to 40°C
Certifications :
CE, RoHS, ISO9001
Control Method :
V/F Control
Control Mode :
SVPWM, sensorless vector control
Cooling Method :
Fan Cooling
Cooling Style :
1:100(SVC)
Display :
LCD
Input Frequency :
50Hz or 60Hz
Input Voltage :
100-240V
Output Voltage :
0-100V
Overload Capacity :
150% for 1 minute, 200% for 10 seconds
Power Range :
0.1-100kW
Protection Level :
IP20
Speed Control Accuracy :
± 0.2% ( sensorless vector control)
Start/Stop Method :
Keypad/External Signal
Description

Variador De Frecuencia ZONCN Low Frequency Inverter 220v Voltage 2.2kw NZ100-2R2G-2

NZ100 series vfd inverter V/F control AC drives 2.2KW 220V

Basic product introduction:

· Small and affordable design

· Exposed terminals, convenient for wiring

· Mountable on DIN rail (up to 5.5KW)

· RS485 communication using Modbus protocol

· No maintenance required

· Compatible with MODBUS ASCII protocol

The NZ100 series variable frequency drive (VFD) offers several advantages. Firstly, its compact size makes it easy to install in various applications. Additionally, the installation process is simple and straightforward, requiring minimal effort. The VFD is also cost-effective, providing an economical solution for achieving variable speed control.Moreover, the NZ100 VFD is energy-efficient, helping to save power and reduce electricity consumption. It is designed to protect machinery from potential damage, ensuring their longevity and reliability. Lastly, the NZ100 series VFD is versatile and suitable for a wide range of applications that require variable frequency control.

Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20

Product wiring diagram:

Sensorless Vector Control Low Voltage Inverter 220v NZ100-2R2G-2

Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
