380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz
380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz
380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz
380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz
Specifications
Brand Name :
ZONCN
Model Number :
NZ100-0R75G-2
Certification :
KC; CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Brand :
ZONCN
Input :
380V+/-15%
Output :
0-380V
Power :
0.75kw/1hp; 1.5kw/2hp
Output Frequency :
0 - 400Hz
OEM :
Accept
Control Method :
V/F control only
Communication :
RS485
Description

ZONCN NZ100 Series Mini variable frequency inverter

Nameplate Description

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

Specification

Model Input Voltage Output Power (KW) Input Current (A) Output Current (A) Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.

Dimension

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

Wiring Diagram

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

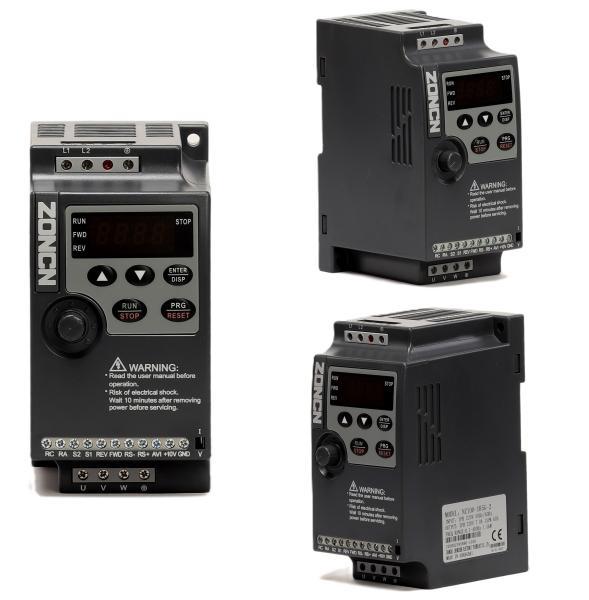

Product picture

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

Keypad Description

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

Packing&Shipping

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

Workshop

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

Wuhu Zoncn Automation Equipment Co. Ltd is a professional factory that focus on producing inverter and servo products. We have 6 main series, they are, NZ100, NZ200, Z2000, Z8000, T9000 and H5000-BF, they are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment and many industry applications. We have professional technical engineers, and all the products have CE certification.

Exhibition

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

FAQ

Q1. What is your MOQ?

A: 1 unit.

Q2. What is the input voltage you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V

Q3. What is the power range you can do ?
A: From 0.4 kw to 1000 kw.

Q4. What is your terms of payment?
A: T/T 100% in advance( Paypal / TT, etc.)

Q5. What is your delivery time?
A: within 15 days after receiving full payment normally.

Q6. What is your warranty time?
A. 18 months after delivering from factory.
