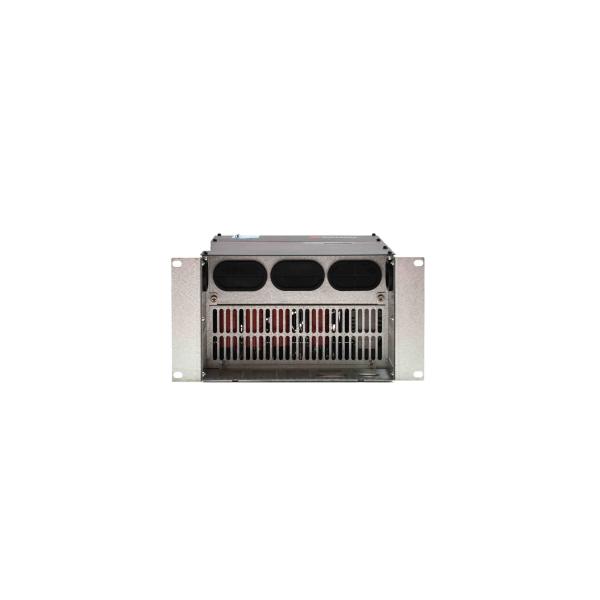

Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N
Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N
Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N
Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N
Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N
Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N
Specifications
Brand Name :
ZONCN
Model Number :
SP500T-30KY-4-N
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
1 unit
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000 units per month
Delivery Time :
7-30 work days
Packaging Details :
Carton Packing
Material :
Metal
Voltage :
380v±15%
Warranty :
18 months
Rated Power :
30KW
Electricity :
Alternating current
Description

Air Compressor Integrator Industry Specific AC 380v 30kw Frequency Inverter SP500T-30KY-4-N for Compressor

Product introduction:

· Highly integrated air compressor control process and variable frequency drive technology

· 4.3-inch, 7-inch, 10-inch touch screen is available

· The control loop terminal adopts the plug and pull type plug terminal

· Built-in 220v AC power supply, providing 24v DC external output

· The product is intelligent and has a comprehensive alarm function

· Input and output missing phase alarm, phase sequence error alarm, PT100 and PTC detection, etc.

Product specification:

Control mode Open loop vector control, V / F control
Maximum frequency Open loop vector control:0～600Hz,V / F control: 0～600Hz
Carrier frequency 0.5kHz～15kHz,The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency x 0.025%
Startup torque

0.5 Hz/150%
Speed range 1:100

Speed stability accuracy

 ± 0.2%
Torque control accuracy ±10%
Overload capacity 60s for 150% of the rated current, 3s for 180% of the rated current.

Torque boost

 Fixed boost；Customized boost 0.1%–30.0%
V/F curve

Straight-line V/F curve；Multi-point V/F curve

N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation

Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
Communication methods RS485
JOG control JOG frequency range: 0.00Hz–50.00 Hz
JOG acceleration/deceleration time: 0.0–6500.0s
Built-in PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes.

Frequency source

 Digital setting
Analog Input 2 pressure sensor: 4 ~ 20mA input
2 temperature sensor: PT100
Digital input 2 normal digital input
1 PTC protection circuit (compatible with normal digital inputs)
1 Remote start/stop input
Digital Output 1 relays output normally open (built in 220VAC voltage)
LED diode display 3 LED displays are standard
Protection Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Installation location Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt

Ambient temperature

 -10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)

Humidity

 Less than 95%RH, without condensing

Vibration

Less than 5.9 m/s2 (0.6 g)

Storage temperature

 -20℃~+60℃

SP500 30KW wiring diagram:

Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N

SP500 series touch screen:

Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N

Air Compressor Industry Specific Inverter 380v 30kw SP500T-30KY-4-N

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
