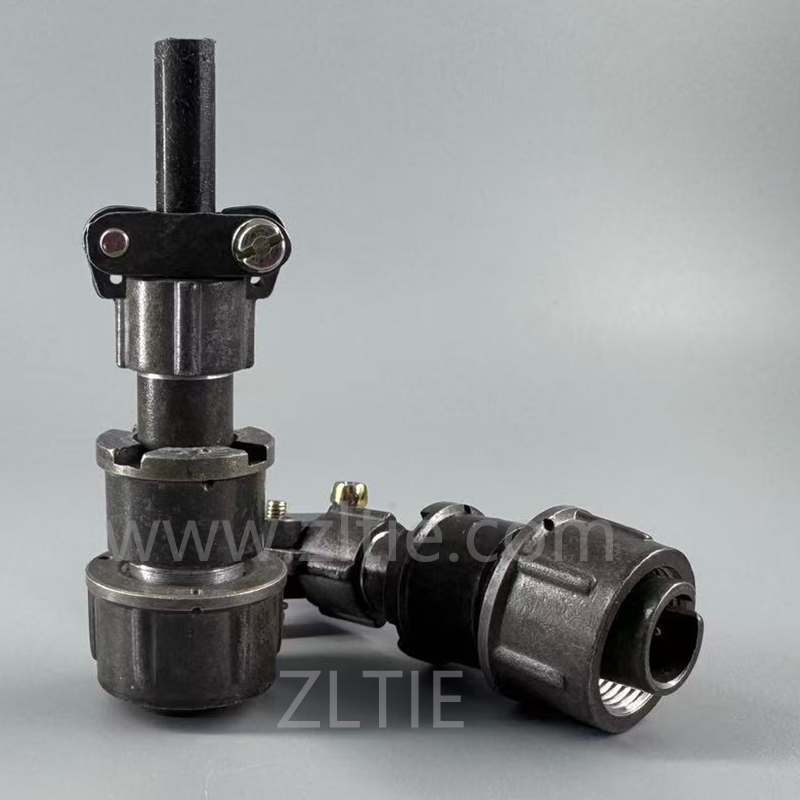

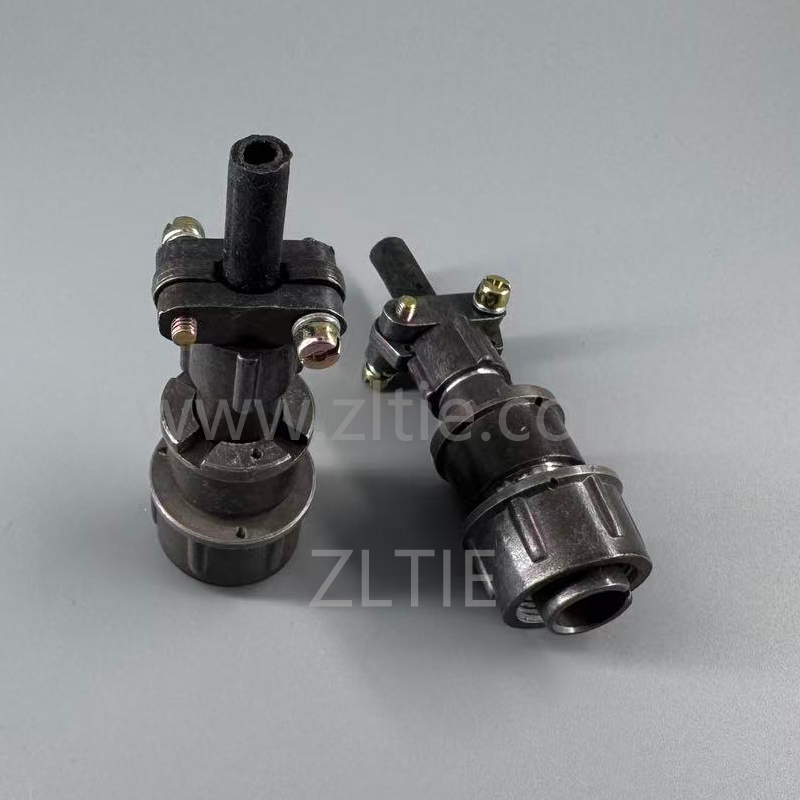

2PM-14 Series 4Pin Male Straight Cable Plug Unshielded – 2РМТ14КПН4Ш1В1В
2PM-14 Series 4Pin Male Straight Cable Plug Unshielded – 2РМТ14КПН4Ш1В1В
Specifications
Model Number :
2PM14J4QB2
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10 work days
Description

Product Details:

2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.

2PM-14 Series 4Pin Male Straight Cable Plug Unshielded – 2РМТ14КПН4Ш1В1В

2PM-14 Series 4Pin Male Straight Cable Plug Unshielded – 2РМТ14КПН4Ш1В1В

ATTRIBUTES:

  • Connector Type: Plug
  • Shell Size: 14
  • Orientation: Straight
  • Number of Positions: 4 Pin
  • Contact Size:Φ1.0
  • Shell Material: Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
  • Contact Finish: Silver/Gold
  • Fastening Type: Threaded
  • Rated Current: 5A
  • Rated Voltage: ≤700V (AC)
  • Operating Temperature: -60℃ – +200℃
  • Insulation Resistance: Normal ≥1000MΩ Moistheat ≥20MΩ
  • Contact Resistance: 0.8-5MΩ
