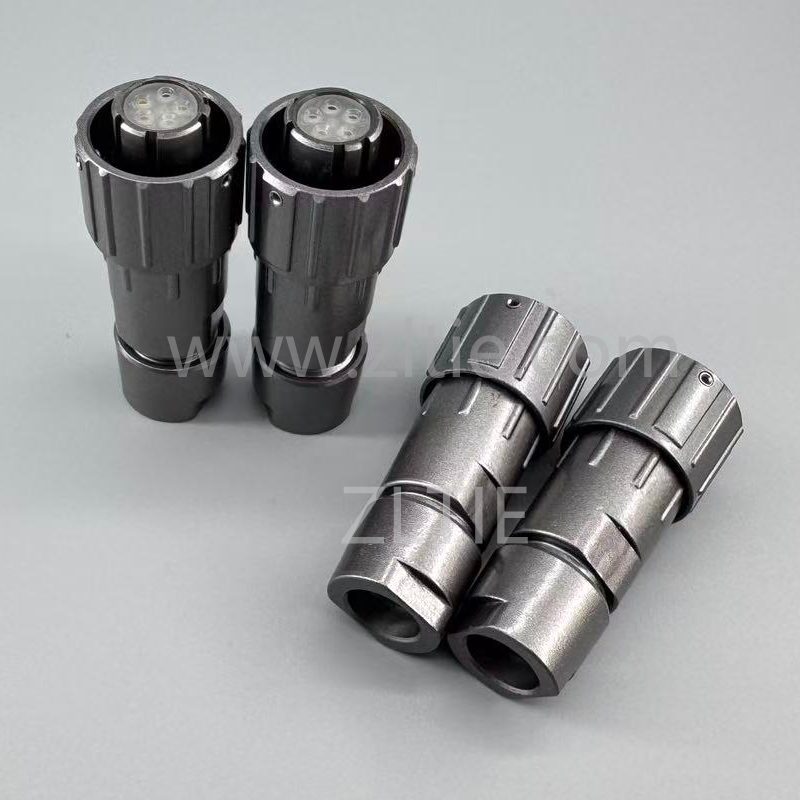

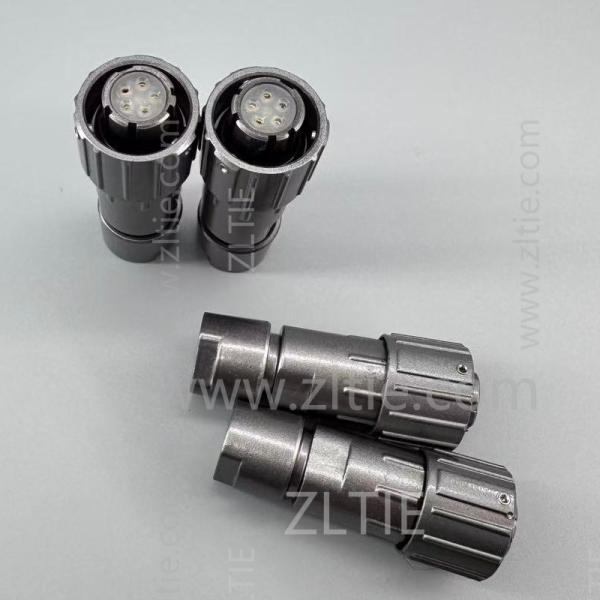

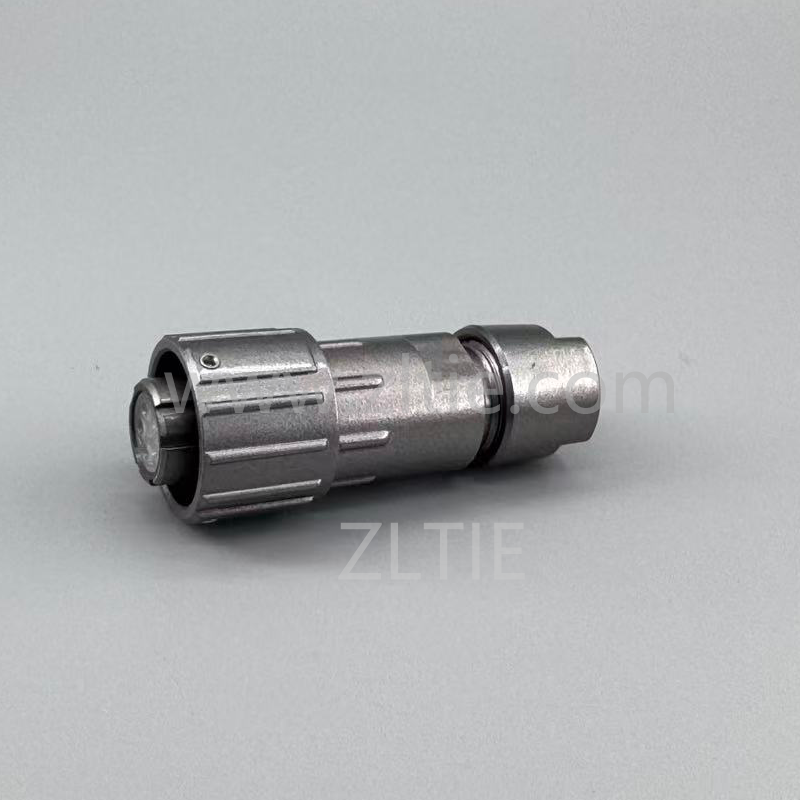

FQ14 Series 5 Pin Straight Female Aviation Connector Plug Metal Circular Connector
FQ14 Series 5 Pin Straight Female Aviation Connector Plug Metal Circular Connector
Specifications
Model Number :
FQ14-5TK
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10 work days
Description

Product Details:

FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.

The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.

FQ14 Series 5 Pin Straight Female Aviation Connector Plug Metal Circular Connector

FQ14 Series 5 Pin Straight Female Aviation Connector Plug Metal Circular Connector

ATTRIBUTES:

Connector Type: Plug

Shell Size: 14

Contact Size: 5*1.0mm

Nummber of Positions: 5 Pin

Connection Method: Bayonet Connection

Terminal Method: Solder

Rated Current: 5A

Contact Resistance: ≤5MΩ

Rated Voltage: 400V

Material of Contacts: Copper with Gold Plated

Copper with Gold Plated: PBT

Shell Material: Aluminum Alloy Surface Anodizing Treatment

Ambient Temperature: -55°C~+100°C

Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%

Atmospheric: 1Kpa

Vibration: 10 ~ 200Hz, 150M/S²

IP Rating: IP67

Life Duration: 500 Cycles
