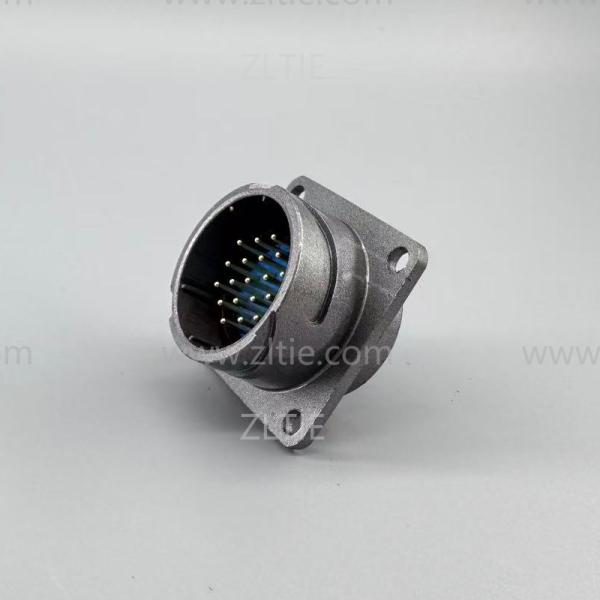

FQ24 Series 19-Pin Square Flange Male Socket
FQ24 Series 19-Pin Square Flange Male Socket
Specifications
Model Number :
FQ24-19ZJ
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10 work days
Description

Product Details:

FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.

The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.

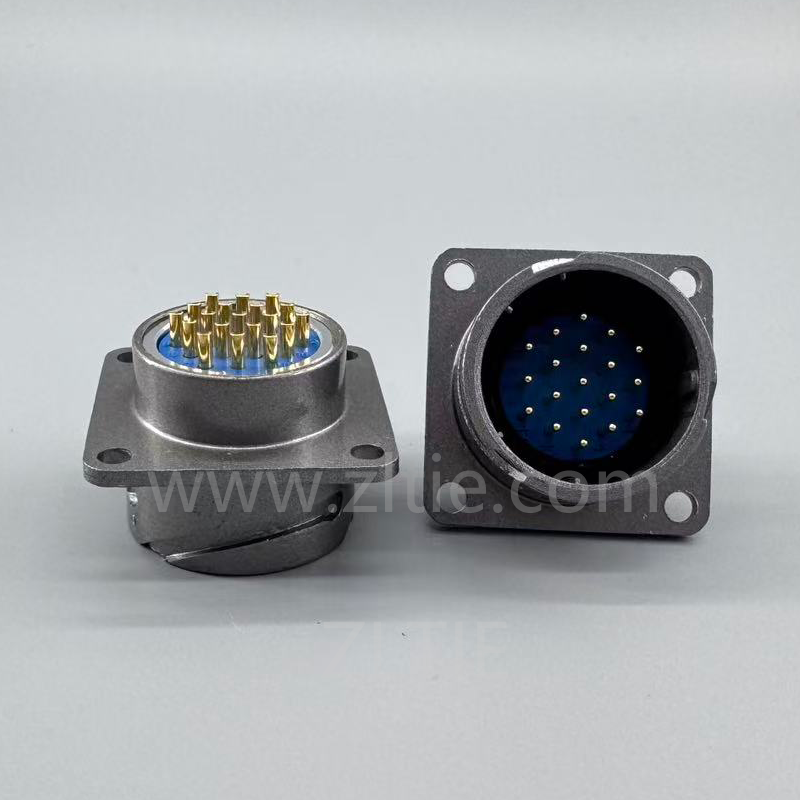

FQ24 Series 19-Pin Square Flange Male Socket

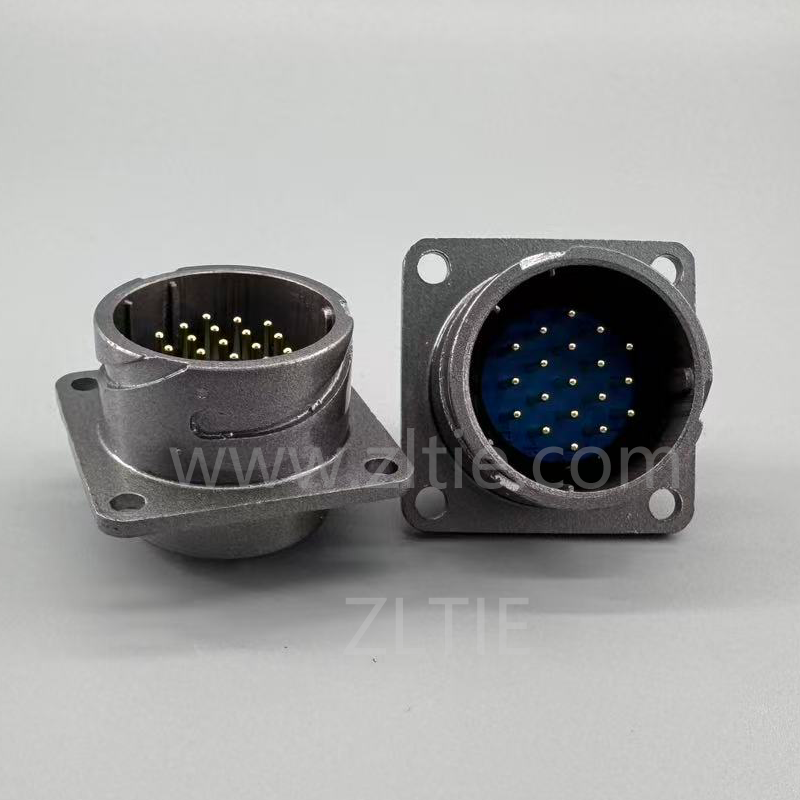

FQ24 Series 19-Pin Square Flange Male Socket

ATTRIBUTES:

  • Connector Type: Socket
  • Shell Size: 24
  • Contact Size: 19*1.0m
  • Nummber of Positions: 19 Pin
  • Connection Method: Bayonet Connection
  • Terminal Method: Solder
  • Rated Current: 5A
  • Contact Resistance: ≤5MΩ
  • Rated Voltage: 400V
  • Material of Contacts: Copper with Gold Plated
  • Copper with Gold Plated: PBT
  • Shell Material: Aluminum Alloy Surface Anodizing Treatment
  • Ambient Temperature: -55°C~+100°C
  • Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%
  • Atmospheric: 1Kpa
  • Vibration: 10 ~ 200Hz, 150M/S²
  • IP Rating: IP67
  • Life Duration: 500 Cycles
