Aluminium ZLP630 6m safety lock suspended platform, construction gondola
Aluminium ZLP630 6m safety lock suspended platform, construction gondola
Specifications
Brand Name :
Suspended platform
Model Number :
ZLP630 suspended platform
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set suspended platform
Price :
USD2100 suspended platform
Payment Terms :
TT,LC
Supply Ability :
400 sets suspended platform per month
Delivery Time :
5-7 days
Packaging Details :
The hoist motor of suspended platform are packaged in plywood case, and in steel pallet.
Warranty :
one year for suspended platform, 6 years for gear of hoist
Suspended platform :
steel, aluminium suspended platform
Platform size :
6000*690*1180 suspended platform
Lifting speed :
~9.5m/min suspended platform
Hoist :
LTD63 suspended platform
Motor :
1.5kw*2 suspended platform
Safety lock :
LS30 suspended platform
Wire rope :
8.3mm suspended platform
Counter weight :
1000kgs
Application :
Building cleaning suspended platform
Description

Aluminium ZLP630 6m safety lock suspended platform, construction gondola

Email: anicali@hrgondola.com

Aluminium ZLP630 6m safety lock suspended platform, construction gondola

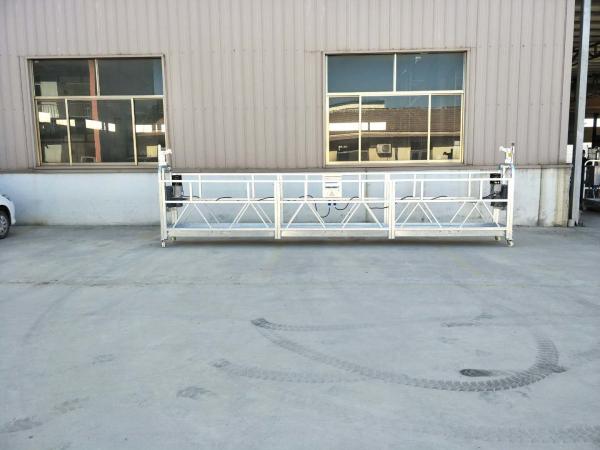

Suspended platforms are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.

The connection of the individual parts of the structure in each unit is made with nuts and bolts.

The platform is equipped with wheels for easy movement around the construction site.

The working platform as bolt type and pin type.

Aluminium ZLP630 6m safety lock suspended platform, construction gondola

Suspension mechanism of suspended platform

With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working platform is 2.2mm.

Specification of suspended platform

Item

ZLP630

ZLP800

Rated load

630kg

800kg

Lifting speed

~9.5m/min

~8.5m/min

Platform size (length×width×height)

(2000*3)*690*1180mm

(2500*3)*690*1180mm

Suspension mechanism

Front beam extension

1.1m-1.5m

Height adjustment

1.45m-1.75m

Hoist

Type

LTD63

LTD80

Motor

Type

Customization

Customization

Power

1.5KW

2.0KW

Voltage

380V

380V

Speed

1400n/min

1400n/min

Braking torque

15N·m

15N·m

Safety lock

Type

LS30

Angle of tilted locking rope

3°—8°

Allowable impact force

30kN

Weight

Working platform

300kg

370kg

Hoist

52kg×2

56kg×2

Safety lock

5.5kg×2

5.5kg×2

Suspension mechanism

320kg (without counter

weight)

320kg without

counter weight)

Electricity box

18kg

18kg

Total weight

812kg

872kg

Counter weight

1000kg (25×40pieces)

1000kg (25×40pieces)

Wire rope

Type

4×31SW+FC-ф8.3

4×31SW+FC-ф8.3

Cable

Type

3×2.5+2×1.5YC-5 (one piece)

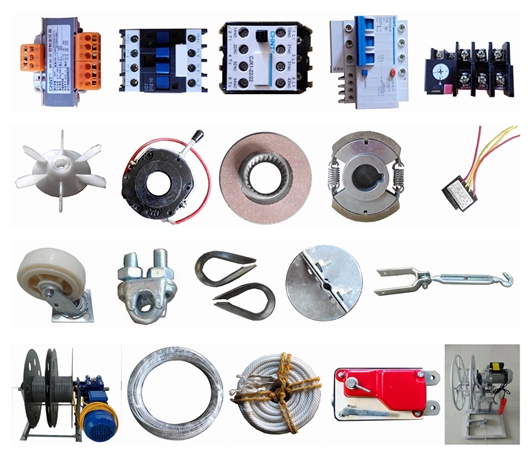

Spare parts of temporary suspended platform

Aluminium ZLP630 6m safety lock suspended platform, construction gondola
