Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
Specifications
Brand Name :
ZK
Model Number :
ZKL
Place of Origin :
China
Ttl Weight :
3.9-35.6(t)
After Warranty Service :
Online Support
Advantage :
High Degree Of Automation
Color :
Customized
Business Scope :
Design, Manufacturer, Onsite Guidance
Voltage :
380V
Pelletization Rate :
≥ 70%
Dia :
1000-4200(mm)
Description

Product Description:

ZK disc granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate. The motor and reducer adopt flexible belt driving, so the life time is increased by the smooth start and low impact.

1. The diameter of the disc balling machine of our company is 1m-7.5m.
2. The inclination angle of the ball plate is 35-55°, and the rotation speed is 7-25 (r/min).
3. Application: Mainly used in cement industry, iron industry and chemical fertilizer industry.

Application of Disc Granulator:


The disc granulator is the main equipment for pelletizing by powder material and widely used in cement industry, steel industry and fertilizer industry.

Working Principle of Disc Granulator:


The uniform particle core was made by raw material powder, then sent into the disc, after that the core go along a parabola by centrifugal force, friction force and gravity in the disc, the moisture will go out of the core surface in the rolling process, because of the cohesiveness and plasticity, the core will become bigger with raw powder in the process. The pellet has well intensity because of the material cohesiveness and the natural volatilization of surface liquid film. When the disc inclination, edge height, rotate speed and moisture all fixed, the pellets with different diameter will rolling down from disc edge by different angle cause of different gravity, then discharging from the disc edge by rotating inclined disc body.

Features:

  • Product Name: Granulation Equipment
  • Warranty: 1 Year
  • Pelletization Rate: ≥ 70%
  • Business Scope: Design, Manufacturer, Onsite Guidance
  • Features: High Granulation Rate
  • Voltage: 380V

Our Granulation Equipment product includes:

  • Coal Powder Granulator Machine
  • Phosphate Ore Disc Pelletizer
  • Granulating Machine

Technical Parameters:

Model Dia(mm) Height(mm) Slope(°) Speed(r/min) Main Drive Motor Power (kW) Scraper Motor Power (kW) Weight(t)
PQ10 1000 250 35-55 2.5-25 3 1.1×1 0.6
PQ12 1200 250 35-55 2.5-25 4 1.1×1 0.8
PQ16 1600 300 35-55 2-19 7.5 1.5×1 1.4
PQ20 2000 320 35-55 1.5-15 7.5 2.2×1 2.2
PQ22 2200 350 35-55 1.4-14 15 2.2×1 3.8
PQ25 2500 350 45-55 1.2-12 15 2.2×1 5
PQ28 2800 400 45-55 1.2-12 18.5 2.2×1 5.8
PQ32 3200 400 45-55 1.2-12 22 3×1 8.5
PQ36 3600 550 45-55 1-10 30 3×2 9.8
PQ42 4200 550 45-55 1-10 37 4×2 12.5
PQ45 4500 550 45-55 1-9 45 4×2 13.5
PQ50 5000 650 43-53 6-9 55 5.5×2 18
PQ55 5500 650 43-53 5.7-8.5 75 5.5×2 30.2
PQ60 6000 650 43-53 5.7-8.5 90 5.5×2 32.8
PQ70 7000 650 43-53 5.1-7.9 132 5.5×3 45.9
PQ75 7500 650 43-53 5.1-7.9 160 5.5×3 50

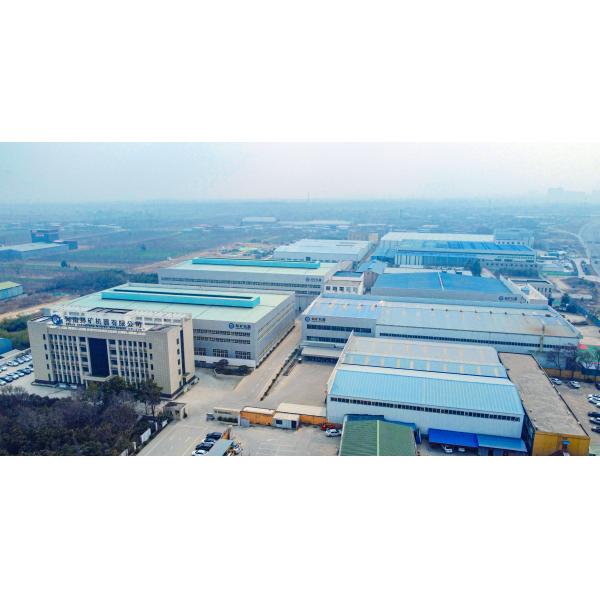

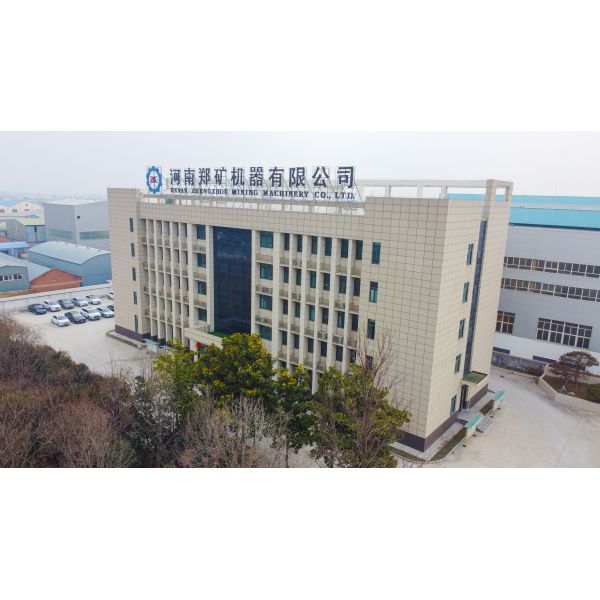

Our Factory:


Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine

Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine

Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine

Dia 6m Large Scale Carbon Powder Disc Pelletizer Granulation Machine
