Horizontal Slaking Calcination 50TPD Rotary Lime Kiln
Horizontal Slaking Calcination 50TPD Rotary Lime Kiln
Specifications
Brand Name :
ZK
Model Number :
Lime Production Line
Certification :
CE ISO Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
10 Set / Sets per Month
Delivery Time :
30 days
Packaging Details :
Export standard container or as customers' requirements
Project Name :
Horizontal Rotary Kiln Calcination And Slaking Of Lime
Capacity :
500 Ton Per Day
Raw Material :
Limestone
Shipping Port :
Shanghai, Qingdao, Tianjin
Spare parts :
Supply all using life
Advantage :
High degree of automation
Lime Activity :
≥360mL
Warranty :
12 Months
Description

500 Ton Per Day Horizontal Rotary Kiln Calcination And Slaking Of Lime

Horizontal Rotary Kiln Introduction

Lime rotary kiln is a key equipment of lime calcination production process. It has the characteristics of wide combustion space and thermal field, which can fully burn the fuel, and has a uniform temperature field as a heat exchange device, which can meet the requirements of limestone calcination. And as a reactor can meet the heat, temperature and time requirements of lime formation.

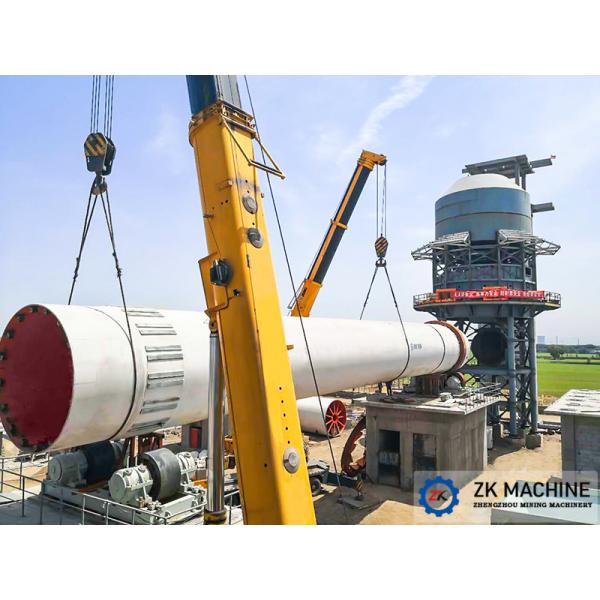

Lime rotary kiln is a vertical preheater rotary kiln. The kiln cylinder is made of high-quality carbon steel plate and the cylinder is on the wheel support device. A large gear ring is fixed in the transmission part of the cylinder, and the cylinder rotation is realized by the frequency conversion speed regulating motor driving the reducer, the pinion gear, and the large gear ring.

Horizontal Slaking Calcination 50TPD Rotary Lime Kiln

Specifications:​

Capacity 200t/d 225t/d 250t/d 300t/d 400t/d 500t/d 600t/d 800t/d
Preheater Shape Hexagon Hexagon Octagon Octagon Octagon Decagon Dodecagon Dodecagon

Qty. Of

Top Silo

 6 6 8 8 8 10 12 12
Qty. Of Hydraulic Pusher 6 6 8 8 8 10 12 12
Preheating Capacity (t) 600 600 800 800 800 1000 1600 1600
Rotary Kiln Size Φ2.8×42m Φ3.0×50m Φ3.2×50m Φ3.3×55m Φ3.6×55m Φ3.8×58m Φ4×60m Φ4.3×56m
Slope 3.50% 3.50% 3.50% 3.50% 3.50% 3.50% 3.50% 3.50%

Rotating Speed

(r/min)

 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8

Calcination Temperature

(℃)

 1350 1350 1350 1350 1350 1350 1350 1350
Cooler Type Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical
Qty Of Temperature Control Area 3 3 3 3 3 3 3 3

Qty. Of

Wind Tower

 4+1 4+1 4+1 4+1 4+1 4+1 4+1 4+1
Size(m) 3.6×3.6 3.6×3.6 3.6×3.6 3.6×3.6 4.1×4.1 4.1×4.1 4.1×4.1 4.7×4.7

Output Temperature

(℃)

 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120
Product Thermal Loss(kcal/kg) 5500 5400 5400 5400 5400 5400 5400 5000
Available Fuel Coke oven gas, mixed gas, natural gas, coal powder, low heating value coal gas

Horizontal Slaking Calcination 50TPD Rotary Lime Kiln

Our Advantages
1. Advanced Technology: The calcination process adopts pre-heater+ rotary kiln+ vertical cooler system, it can reduce the fuel consumption 40%, and increase output capacity 30% due to reuse the waste gas in the system.
2. High Automation Level: The Production line is arranged with temperature and pressure monitoring instrumentation, operating parameters of the computer display, the production line can adopt the advanced computer control, to achieve automatic operation of the entire system.
3. Mature Experience: We have professional engineer team, mature experience, and over 100 successful project cases from home and abroad, to maximize your investment costs and meet the customized solution demand.
