SCZAP Injection Mold Components Oil Free Slide Inclined Pin Holders Adjusting Type
SCZAP Injection Mold Components Oil Free Slide Inclined Pin Holders Adjusting Type
Specifications
Brand Name :
INWAY
Model Number :
SCZAP
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Application :
Injection Mold
Size :
Standard
Standard :
punch
Type :
Adjusting Type
Material :
Bronze with graphite
Shaping mode :
two slide plate
Description

SCZAP Injection Mold Components Oil Free Slide Inclined Pin Holders Adjusting Type

punch Standard Oil-Free Slide Units For Loose Core -Standard/Fixed Type- (Part Numbers)

Features of Oil-free Slide Units for Loose Core

Characteristics


・ Guide parts of SCZN and SCZA series.
Please refer to SCZN and SCZA series X P.659・661 when the slide base is necessary.
・ Space is reduced to process the slide base on mold's body.
・ The neck sliding structure of inclined pin holder enables the automatic center adjustment function, which reduces abrasion and scoring on the guide and slide plates.

Item Components Parts Name R Piece
① Inclined pin holder Inclined Pin Holder SCM440 1
② Slide plate Slide Plate * CAC304＋Solid lubricant 2
③ Key Key S45C 1
④ Adjust rod Adjust Rod S45C 1
⑤ Lock nut Lock Nut S45C 1
* Grade-4 high strength brass (Old JIS: HBsC4)
■

Item Components Parts Name R Piece
① Inclined pin holder Inclined Pin Holder SCM440 1
② Slide plate Slide Plate * CAC304＋Solid lubricant 2
③ Key Key S45C 1

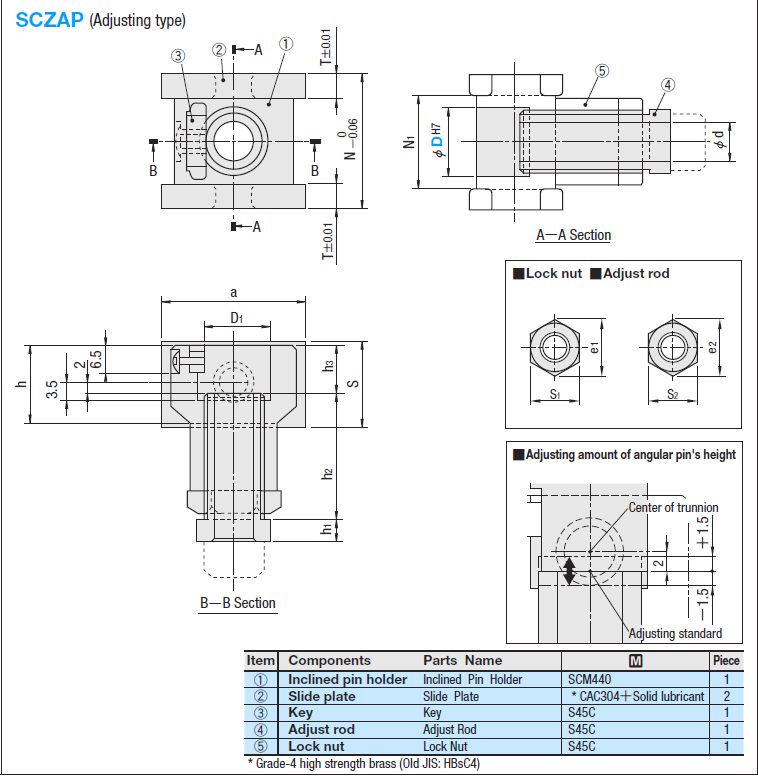

Adjusting Type
　 Part Number ① Inclined pin holder Common with SCZA ② Inclined pin holder ② Slide plate Common with SCZA ③ Slide plate ⑤ Lock nut Common with SCZA ⑥ Lock nut ④ Adjust rod Common with SCZA ⑤ Adjust rod U/Price
Type D D1 d h h1 h2 h3 N N1 S a T S1 e1 S2 e2
SCZAP 　 11 5.5 16 6 33 10 30 17 20 35 6.5 17 19.6 12 13.9
16 15 9 18 6 33 11 33 20 20 40 6.5 21 24.2 16 18.5
20 18 11 22 6 36 13 38 25 24 40 6.5 24 27.7 19 21.9
25 22 11 26 6 39 15 45 31 26 45 7 24 27.7 19 21.9
30 27.5 11 30 6 41 17 51 36 30 55 7.5 24 27.7 19 21.9
V SCZAP is on sale by set of the four components of SCZA i.e. ② angular pin holder, ③ slide plate, ⑤ adjust rod and ⑥ lock nut.
D
