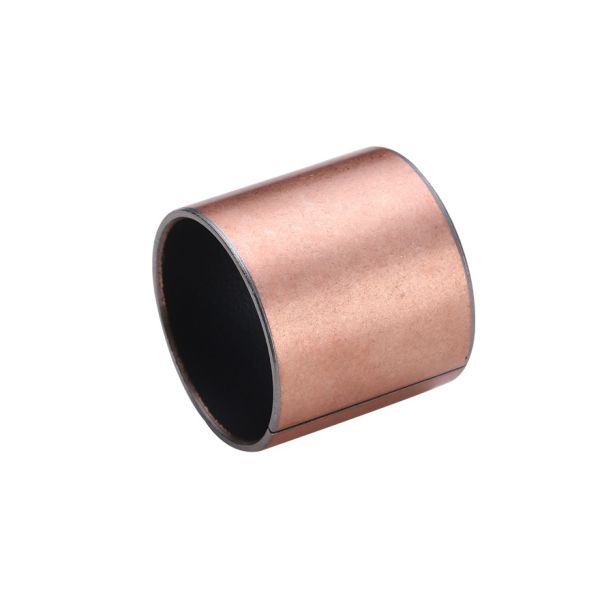

INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE
INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE
Specifications
Brand Name :
INWAY
Model Number :
INW-10W
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Application :
Engine Bearing
Size :
Standard
Standard :
DIN 1494
Material :
Steel+Bronze +PTFE
Type :
with split
Technical :
Dry bushing
Description

INW-10 B Composite Bushings Tin Outside SF-1B Bushing Bronze Base PTFE

STRUCTURE AND COMPOSITION

  • Metal-Polymer Composite Self-lubricating Bushing Material
  • Steel Back + Porous Bronze Sinter +
  • PTFE + Lead

MICROSECTION

Sliding layer

PTFE + Lead

Porous Bronze Sinter

Steel Backing

OPERATING PERFORMANCE
Dry Very Good
Oil lubricated Good
Grease lubricated Fair
Water lubricated Fair
Process fluid lubricated Fair
FOR SUPERIOR / LEAD-FREE PERFORMANCE
Dry DP4 / DP11
Oil lubricated DP4 / DP31
Grease lubricated DP4 / DX
Water lubricated DP4-B
Process fluid lubricated DP4 / DP31

BEARING PROPERTIES

GENERAL Unit Value
Maximum load, p

Static

Dynamic

N/mm2

N/mm2

250

140
Operating temperature

Min

Max

°C

°C

- 200

280
Coefficient of linear thermal expansion

Parallel to the surface

Normal to the surface

10-6/K

10-6/K

11

30
DRY
Maximum sliding speed, U m/s 2.5
Maximum pU factor N/mm2 x m/s 1.8
Coefficient of friction 0.02 - 0.25 *
OIL LUBRICATED
Maximum sliding speed, U m/s 5.0
Maximum pU factor N/mm2 x m/s 5.0
Coefficient of friction 0.02 - 0.12
RECOMMENDATIONS
Shaft surface roughness, Ra

Dry

Lubricated

µm

µm

0.3 - 0.5

≤ 0.05 - 0.4 *
Shaft surface hardness Unhardened acceptable, improved bearing life > 200HB
