INW15-01 Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type
INW15-01 Oil Sintered Bearing CuSn10 Sintered Bronze Bearing FU-1 Powder Metallurgy Sleeve Type
Specifications
Brand Name :
INWAY
Model Number :
INW-1501
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Material :
CuSn10
Lubricating :
Lubricated
Application :
Tyer mould
Size :
Customized
Structure :
Powder Metallurgy
Standard :
JIS
Description

INW15-01 Oil Sintered Bearing CuSn10 Sintered bronze bearing FU-1 Powder Metallurgy

INW-1501 sintered bronze bearing,its bronze powder is pressed under high pressure and sintered under high temperature,after that,it is oil impregnated for better lubrication.It can be used under condition of medium speed and low load.It can work without oil for short time and it is cost effective and high precision in dimension.It is widely used in mini electrical parts,home appliance,electrical tools,textile machines,chemical industry,auto industry and office equipment etc.

Material Features:


INW-1501 series is made of bronze or iron powder, pressed in high pressure by moulds, and sintered in high temperature and then impregnated in oil by vacuum. It's widely used in household appliances, electric tools, textiles machinery, chemical machinery and automobile industry, etc.

Technical Data
　 Bronze Iron 　
Material Unit 90%Cu 99.9% 　
Performance 　 　 　 10%Sn 　 　 　
Density 　 g/cm3 　 6.4-6.8 　 5.7-5.9 　
Static load 　 N/mm2 　 　 　 500 　
Dynamic load 　 N/mm2 　 　 　 　 　
Max linear speed 　 　 　 7 　 5 　
Volume of oil impregnation
Hardness		 ％ 22 22
35		 　
Friction coefficient µ 0.03 0.025 　
Traction resistance 　 10-20 18-26 　
Elongation 　 　 2-4 　
Max thermal temperature
-20-+120 -20-+ 120

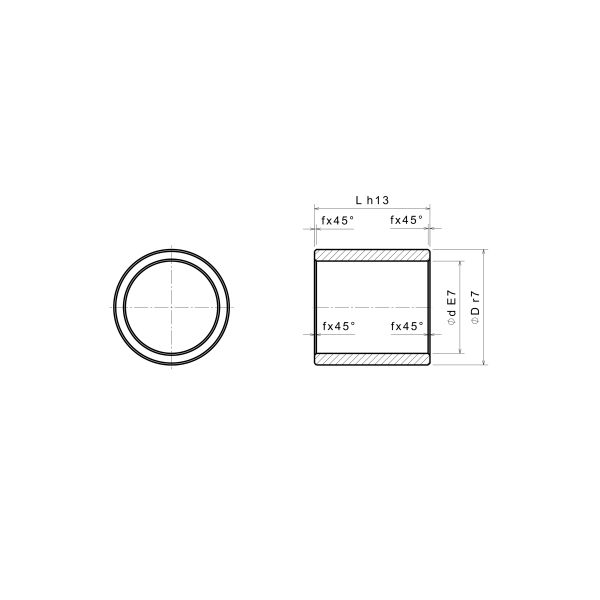

Code No. ID OD L Chamfer f*45°
INW-1501 20-25-25 20 25 25 0,8
INW-1501 20-26-15 20 26 15 0,8
INW-1501 20-26-20 20 26 20 0,8
INW-1501 20-26-25 20 26 25 0,8
INW-1501 20-26-30 20 26 30 0,8
INW-1501 20-28-20 20 28 20 0,8
INW-1501 20-28-30 20 28 30 0,8
INW-1501 20-28-40 20 28 40 0,8
INW-1501 20-40-40 20 40 40 0,8
INW-1501 22-27-15 22 27 15 0,8
INW-1501 30-38-30 30 38 30 0,8
INW-1501 30-38-40 30 38 40 0,8
INW-1501 30-40-15 30 40 15 0,8
INW-1501 30-40-30 30 40 30 0,8
INW-1501 30-40-45 30 40 45 0,8
INW-1501 30-40-60 30 40 60 0,8
INW-1501 30-50-60 30 50 60 0,8
INW-1501 35-41-25 35 41 25 0,8
INW-1501 35-41-35 35 41 35 0,8
INW-1501 35-41-40 35 41 40 0,8
INW-1501 40-50-50 40 50 50 0,8
INW-1501 40-50-60 40 50 60 0,8
INW-1501 40-50-80 40 50 80 0,8
INW-1501 45-51-35 45 51 35 0,8
INW-1501 45-51-45 45 51 45 0,8
INW-1501 45-51-55 45 51 55 0,8
INW-1501 45-55-35 45 55 35 0,8
INW-1501 45-55-45 45 55 45 0,8
INW-1501 45-55-55 45 55 55 0,8
INW-1501 45-55-60 45 55 60 0,8
INW-1501 60-75-90 60 75 90 1
INW-1501 60-85-90 60 85 90 1
INW-1501 65-75-60 65 75 60 1
INW-1501 65-75-90 65 75 90 1
INW-1501 65-80-60 65 80 60 1
INW-1501 65-80-90 65 80 90 1
INW-1501 70-80-60 70 80 60 1
INW-1501 70-80-90 70 80 90 1
INW-1501 70-85-60 70 85 60 1
INW-1501 70-85-90 70 85 90 1
INW-1501 85-95-100 85 95 100 2
INW-1501 85-100-100 85 100 100 2
INW-1501 90-105-80 90 105 80 2
INW-1501 90-110-80 90 110 80 2
INW-1501 100-120-80 100 120 80 2
