Beryllium X-Ray Foil and Window Assemblies
Beryllium X-Ray Foil and Window Assemblies
Beryllium X-Ray Foil and Window Assemblies
Beryllium X-Ray Foil and Window Assemblies
Beryllium X-Ray Foil and Window Assemblies
Beryllium X-Ray Foil and Window Assemblies
Specifications
Brand Name :
JX
Model Number :
Be
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
7-20 DAYS
Packaging Details :
Plywood box and foam shock-absorbing board
Description

Beryllium X-Ray Foil and Window Assemblies Description

We use high-purity beryllium metal vacuum melting, repeated rolling, powder metallurgy, mechanical finishing, chemical alkali washing and other processing, and carry out comprehensive quality inspections, such as dimensional accuracy, X-ray transmittance, surface flatness and mechanical strength.

Features

  • High X-ray transmittance, which decreases with the increase of beryllium window thickness.
  • Beryllium has high strength and hardness, strong impact resistance, and deformation resistance.
  • High melting point, good thermal stability, high thermal conductivity, and good heat conduction.
  • High surface flatness, low roughness, good output quality, and long service life.

Application

Beryllium windows can be widely used in scientific research fields such as X-ray detection equipment, sealed vacuum areas, synchrotron radiation devices, nuclear detection instruments, electron microscopes, material structure analysis, and biomolecular research.

Especially in the X-ray tube, Beryllium X-Ray Foil and Window Assemblies help X-ray emission, maintain a high vacuum state, absorb low-energy X-rays, protect internal components from external environmental pollution, extend the service life of the X-ray tube, and ensure the stability and reliability of the equipment. We need to select a beryllium window of appropriate thickness according to the energy range and sensitivity requirements of the detection to achieve the best detection effect.

Beryllium X-Ray Foil and Window Assemblies Specifications:

Grade Be1
Purity Be≥95%
Diameter 10 mm- 50 mm or Custom
Thickness 0.01-0.05mm
Density 1.85g/cm3
Melting Point 1287℃
Shape Round
Delivery Time About 20 days
Certification ISO9001

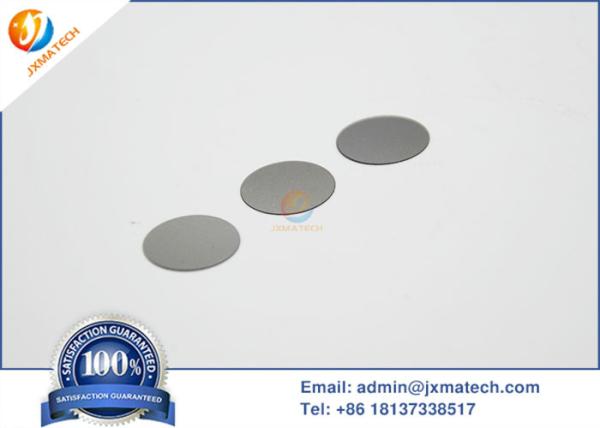

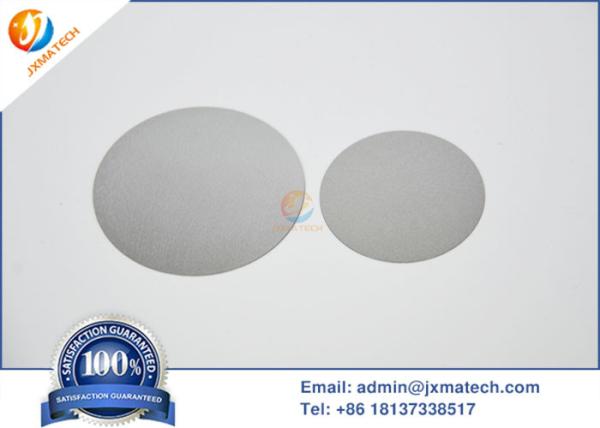

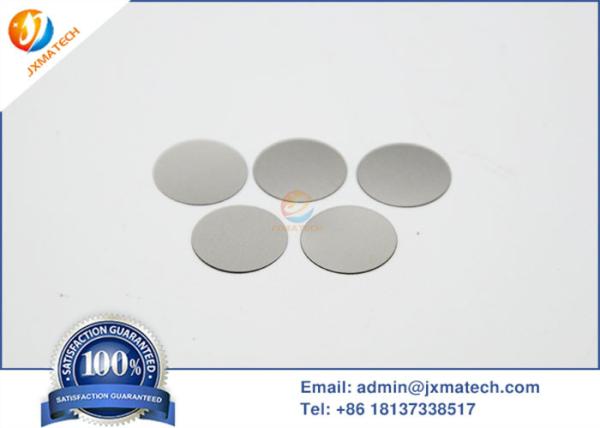

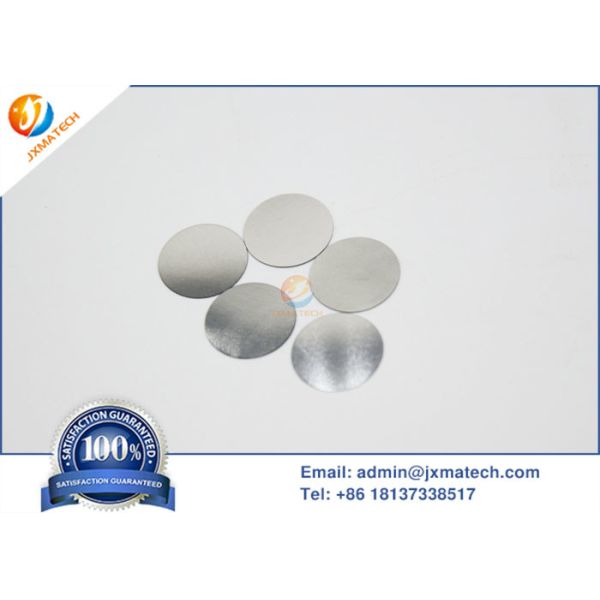

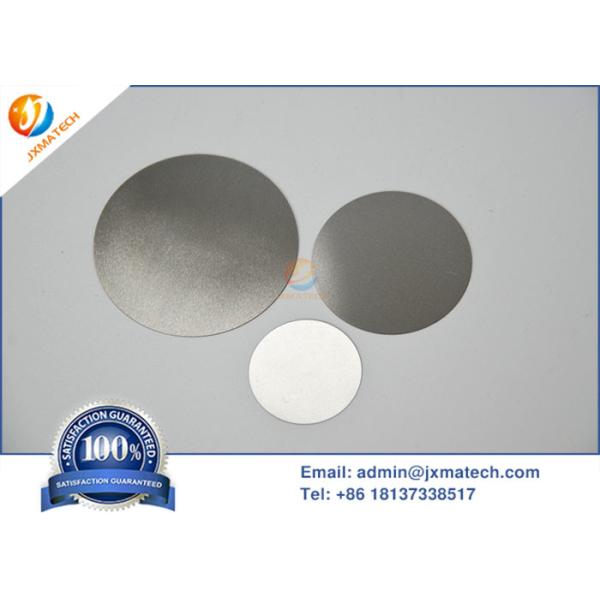

Beryllium X-Ray Foil and Window Assemblies Pictures

Beryllium X-Ray Foil and Window AssembliesBeryllium X-Ray Foil and Window Assemblies
