High Temperature Tungsten W Crucible
High Temperature Tungsten W Crucible
High Temperature Tungsten W Crucible
High Temperature Tungsten W Crucible
High Temperature Tungsten W Crucible
High Temperature Tungsten W Crucible
Specifications
Brand Name :
JX
Model Number :
W1/W2
Certification :
ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
10-20DAYS
Packaging Details :
Plywood box with shock absorbing foam board
Description

High Temperature Tungsten W Crucible Description

Prepare high-purity tungsten powder for compression molding or isostatic pressing, sinter the pre-sintered green body at high temperature, and then carry out mechanical processing such as turning, grinding, drilling, etc. Finally, surface treatment and comprehensive quality inspection will be carried out.

Features

  • High melting point, excellent dimensional stability at high temperatures, and strong resistance to deformation.
  • Good chemical stability and corrosion resistance ensure high purity during melting.
  • Excellent electrical and thermal conductivity allows for uniform heat distribution, enhancing melting efficiency.
  • High strength, hardness, good machinability, and long service life.

Application

  1. Metal smelting: used for high-temperature smelting of rare earth metals and refractory metals.
  2. Semiconductor processing: used to refine high-purity single-crystal silicon to meet the strict requirements of semiconductor devices for silicon.
  3. Electron beam melting: used to uniformly heat and melt metal raw materials,
  4. Optical instruments: used for the growth of laser crystals such as YAG and sapphire for application in optical windows.
  5. Powder metallurgy: used for sintering containers of metal powders to ensure the stability of subsequent processing.

High Temperature Tungsten W Crucible Dimension

Grade W1,W2
Purity >99.95%
Diameter 30-750mm
Density 18.5-19.3g/cm3
Height 10-120mm/50-850mm
Wall Thickness 2-35mm
Surface Black, Polished, Grinding
Standard ASTM B760,GB
Certification ISO 9001

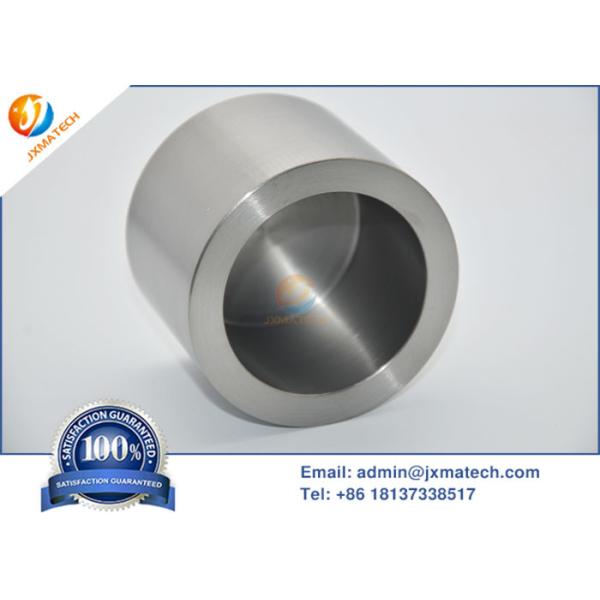

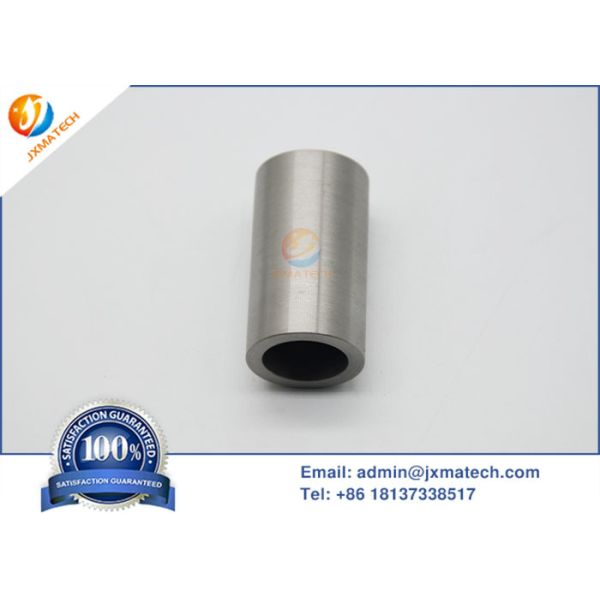

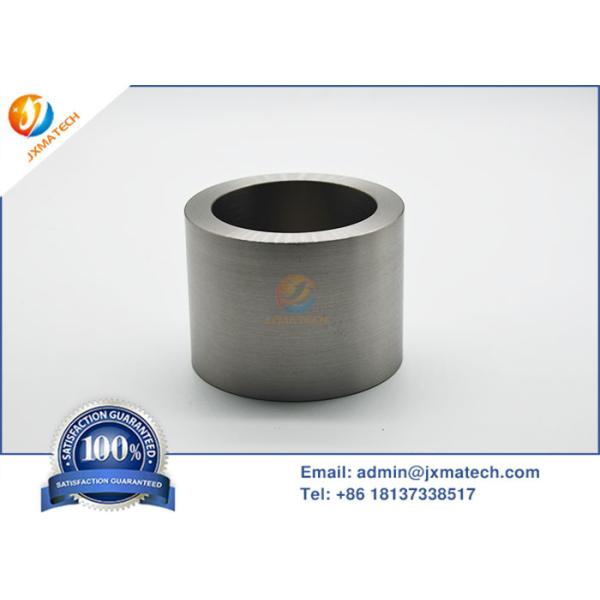

High Temperature Tungsten W Crucible Pictures

High Temperature Tungsten W CrucibleHigh Temperature Tungsten W Crucible
