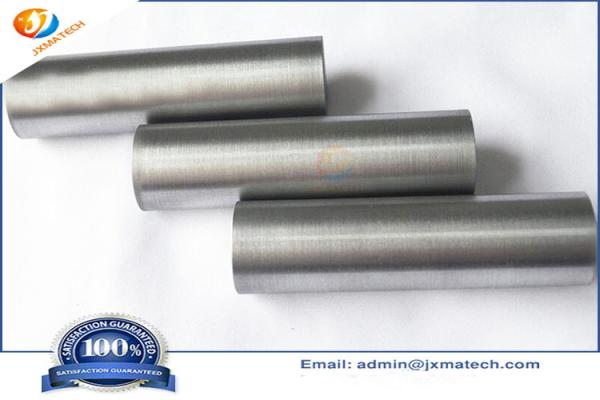

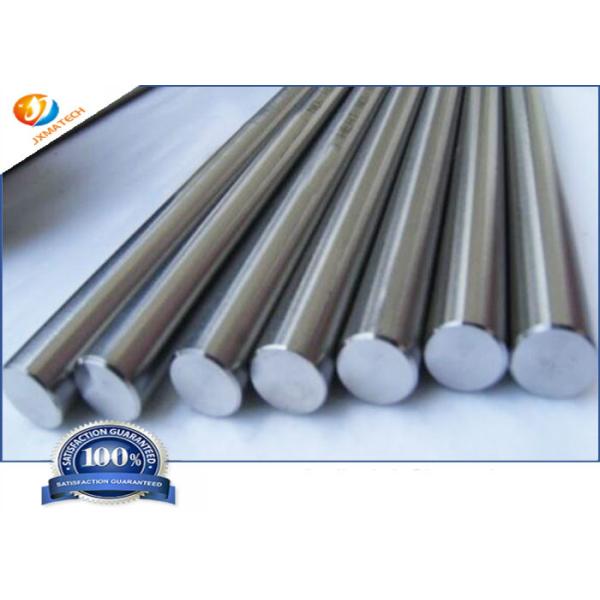

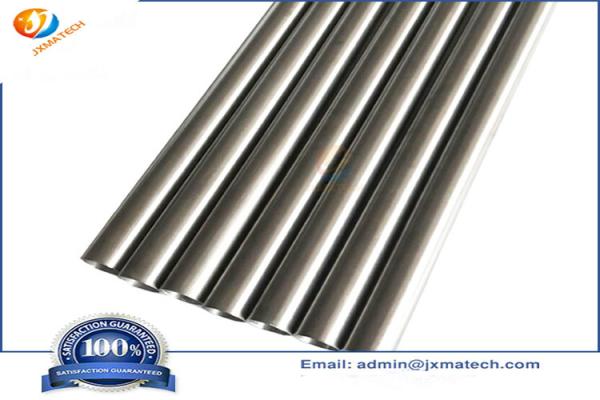

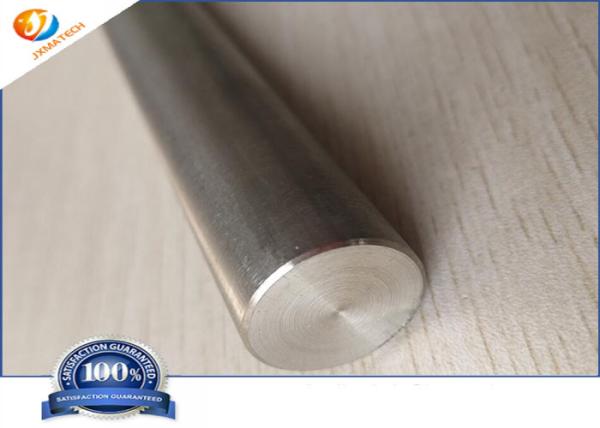

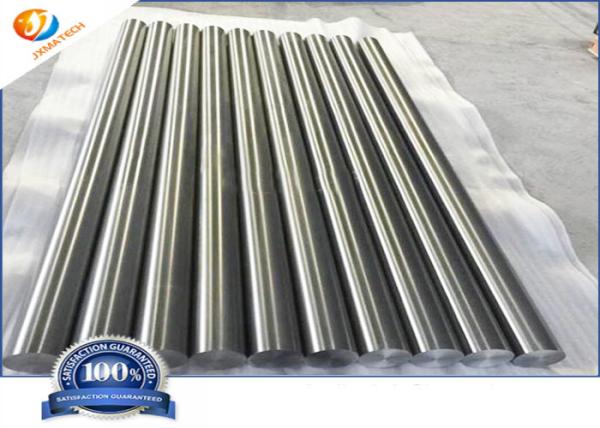

High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
High Purity Polishing Round Zirconium Bar 702 Round Rod
Specifications
Brand Name :
JINXING
Model Number :
Zr702 Zirconium Bars
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
30 kg
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
2000 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Product Name :
High Purity Polishing Zirconium Bars Zirconium Round Bar Zirconium 702 Round Rod
Grade :
Zr702
Density :
6.51g/cc
Diameter :
30-200mm
Purity :
>99.6%
Standard :
ASTM B550-2010
UNS Number :
R60705
Application :
Nuclear Fuel Assembly
Description

High Purity Polishing Zirconium Bars Zirconium Round Bar Zirconium 702 Round Rod

Zirconium Round Bar are a further processed zirconium material. Zirconium metal has excellent nuclear properties due to its small thermal neutron absorption cross section. Nuclear grade zirconium is used as a structural material for nuclear-powered aircraft carriers, nuclear submarines, civilian power reactors and uranium fuel components. Cladding and so on. Nuclear grade zirconium is an important strategic metal in China and is closely related to the development of nuclear industry.

Product Specification Sheet Zirconium Round Bar

Product Name Size(mm) Condition Grade Standard
Zirconium bar/rod/wire Diameter (30~200) x Length 3000 Forging Zr702, Zr705, Zircaloy ASTM B550
ASTM B550M
GB/T21183-2007
Diameter (5~60) x Length 3000 Rolling
Diameter (0.1~3.0) Drawing

High Purity Polishing Round Zirconium Bar 702 Round Rod

High Purity Polishing Round Zirconium Bar 702 Round Rod

Physical & Mechanical Properties Zirconium Round Bar

  • Grade: R60702, R60704, R60705, ZR1
  • Standard: ASTM b550/550M, GB / t21183-2007
  • Density: 6.51g/cm3
  • Melting point: ≥ 1800 ℃
  • Purity: ≥ 99.6%
  • Thermal conductivity: 22 W/(m °C)
  • Elastic bending modulus: 99.3 GPa
  • Thermal expansion: 5.4x10 /°C
  • Surface: bright, no crack, no peeling, no obvious oxidation
  • Surface flatness: ≤3%

Processing technology of Zirconium Round Bar

  1. Forging
  2. Rolling
  3. Drawing
  4. Lathing
  5. polishing

Application of Zirconium bars

  • Nuclear-grade zirconium

It is mainly used as the structural material of nuclear powered aircraft carrier, nuclear submarine and civil power reactor, uranium fuel element cladding and so on. It is an important strategic metal.

  • Industrial-grade zirconium

Industrial zirconium is mainly used in chemical industry, military industry, electronics, pipe valve materials, special high-strength high-temperature alloy materials, electric vacuum, bulb industry getter and other acid and alkali resistant equipment.
