Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Ground W85cu15 Tungsten Cooper Rod High Temperature
Specifications
Brand Name :
JX
Model Number :
Ground W85cu15 Tungsten Cooper Rod
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
Ground W85cu15 Tungsten Cooper Rod
Description

Ground Tungsten Cooper Rod W85cu15

Product Description

Ground Tungsten Cooper Rod are ground to precise shape and size to meet American Welding Society RWMA Class 10 specifications with precise tolerances. Copper tungsten has high wear resistance, electrical and thermal conductivity, and corrosion resistance. Copper-tungsten is a high-strength composite of two metals: 70/30 copper-tungsten. It combines the electrical conductivity of copper with the heat and wear resistance of tungsten.

The manufacturing process is: pressing the refractory metal, sintering it at high temperature, and infiltrating it with copper. All of this is done under very tightly controlled conditions.

Ground Tungsten Cooper Rod specification:

1) WCu (W70Cu, W75Cu, W80Cu, W85Cu, W90Cu, etc)
2) Density:16-18.8g/cm3
3) Size:As your need
Plate: (0.04-50)* W X L
rod-Dia.1.5 - 200 X 300mm Long
4) Flatness tolerance:<4um
5) Roughness:Ra1.6-Ra0.8
6) Surface: polished, ground.

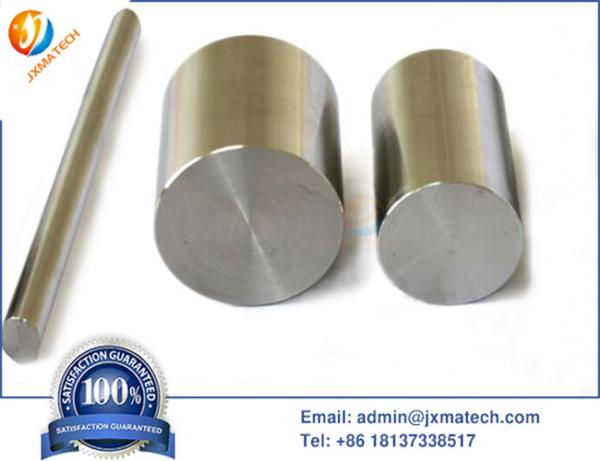

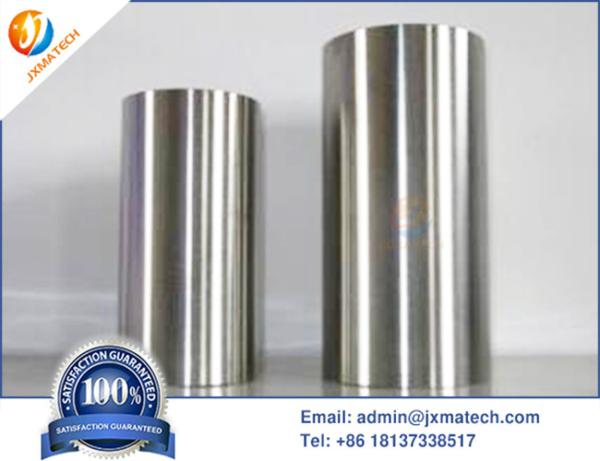

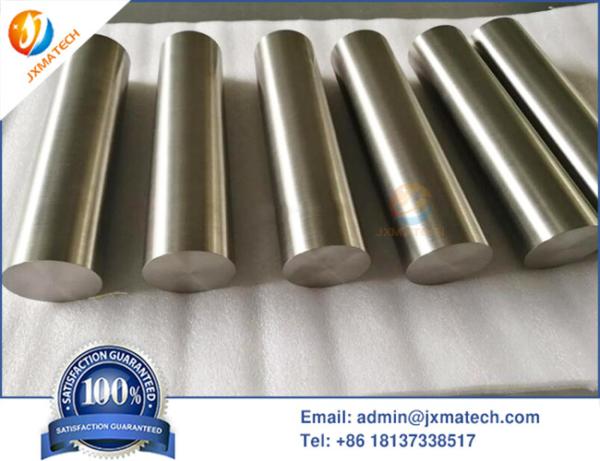

Ground Tungsten Cooper Rod Picture:

Ground W85cu15 Tungsten Cooper Rod High TemperatureGround W85cu15 Tungsten Cooper Rod High Temperature
3.Ground Tungsten Cooper Rod Chemical composition

Material WCu%
Tungsten Content		 Hardness
HB		 g/
Density at 20ºC		 W/M.K
Thermal conductivity at 25ºC		 (10-6/k)
Coefficient of thermal expansion at 20ºC
W90Cu10 90 260 17.0 180-190 6.5
W85Cu15 85 240 16.4 190-200 7.0
W80Cu20 80 220 15.6 200-210 8.3
W75Cu25 75 195 14.9 220-230 9.0
W50Cu50 50 125 12.2 310-340 12.5
