Bar Tungsten Nickel Iron Alloy High Density For Military Equipment
Bar Tungsten Nickel Iron Alloy High Density For Military Equipment
Bar Tungsten Nickel Iron Alloy High Density For Military Equipment
Bar Tungsten Nickel Iron Alloy High Density For Military Equipment
Bar Tungsten Nickel Iron Alloy High Density For Military Equipment
Bar Tungsten Nickel Iron Alloy High Density For Military Equipment
Specifications
Brand Name :
JX
Model Number :
Tungsten Nickel Iron Alloy Bar
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
Tungsten Nickel Iron Alloy Bar
Description

Tungsten Nickel Iron Alloy Bar ,High Density Tungsten Nickel Coppe

Tungsten alloy metals mainly include W-Ni-Fe and W-Ni-Cu, which are widely used in military equipment, machinery manufacturing, aircraft parts, medical shields and sports equipment. Tungsten Heavy Alloy Cylinder Rod

Our Tungsten Nickel Iron Alloy Bar are used in collimators and shielding components to provide protection from x-ray and gamma radiation

Tungsten Nickel Iron Alloy Bar Method

Blending of tungsten powder with other metal powders and a bonding agent, cooling and sieving.

Pressing the blended powder to the required shape (allowing for shrinkage during the final processing), and shaping the green part component.

Pre-sintering the pressed components to remove the bonding agent.

Final sintering in the hydrogen fed furnace to fuse the powder particles together.

Supplied in bar, square, round and rectangle sizes are available in rough oversize, or turned or ground to exact requirements. Components can also be produced to customer drawings.

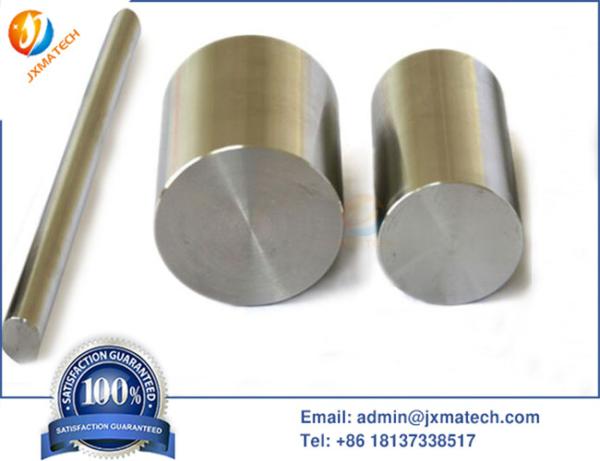

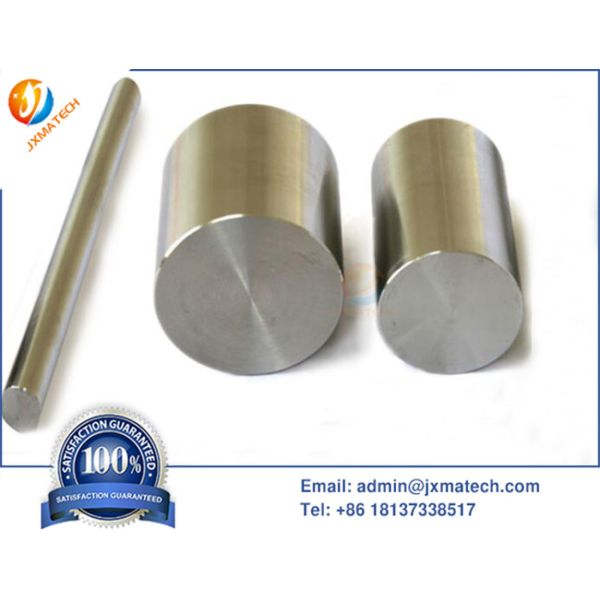

Tungsten Nickel Iron Alloy Bar Picture:Bar Tungsten Nickel Iron Alloy High Density For Military EquipmentBar Tungsten Nickel Iron Alloy High Density For Military Equipment

Technical datasheet for Tungsten Nickel Iron Alloy Bar

Tungsten heavy alloy W-Ni-Fe W-Ni-Cu
Designation 90W 92.5W 95W 97W 90Cu 92.5Cu 97Cu
Density (g/cm3) 17.0 17.6 18.0 18.5 17.0 18.0 18.5
Tensile Strength (MPa) 820 780 820 840 750 650 550
Elongation (%) 10 7.0 7.0 5.0 1.2 1.0 0.5
Hardness (HRC) 25 26 27 28 24 27 28
Young's Modulus (GPa) 310 320 340 365 270 300 320
Thermal expansion coefficients (10-6/K) 4.61 4.62 4.60 4.50 5.60 4.40 4.00
Electrical conductivity (%) 10 13 13 17 17 19 23
Thermal conductivity (W/m.K) 80 90 93 95 110 120 125
