Ion Implantation Parts In Molybdenum For Injection Molding Application

Ion Implantation Parts are an ion beam technology that ionizes an element’s atoms into ions, accelerates them at a voltage of tens to hundreds of kV, and then injects them into the workpiece material placed in the vacuum target chamber after obtaining a high speed. surface.

After ion implantation, the physical, chemical and mechanical properties of the material surface will change significantly. The continuous wear resistance of the metal surface can reach 2 to 3 orders of magnitude of the initial injection depth.

SPECIFICATION & CHEMICAL COMPOSITIONS (NOMINALS)

APPLICATIONS of Ion Implantation Parts

• Precision molds in semiconductor industry, stamping and stamping molds in can industry can significantly improve the working life of these valuable and precision molds;
• The precision nozzle for extruding synthetic fiber and optical fiber can greatly improve its abrasion resistance and service life;
• Hot extrusion and injection mold can reduce energy consumption by about 20% and prolong service life by about 10 times;

Future prospects of Ion Implantation Parts technology

Although plasma implantation technology overcomes the direct problem of traditional ion implantation technology, the problem of shallow implantation layer inherent in ion implantation process always exists, which limits its wide use in industry.

Therefore, in order to obtain a thicker modified layer, plasma based ion implantation technology must be combined with other coating technologies such as PVD and CVD, that is, composite implantation and deposition technology. Composite coating technology is an important development trend at home and abroad, and many lithium battery manufacturers are paying attention to it.

This composite coating technology can be carried out in the same vacuum chamber or in different vacuum systems; Injection and deposition can be carried out simultaneously or sequentially.

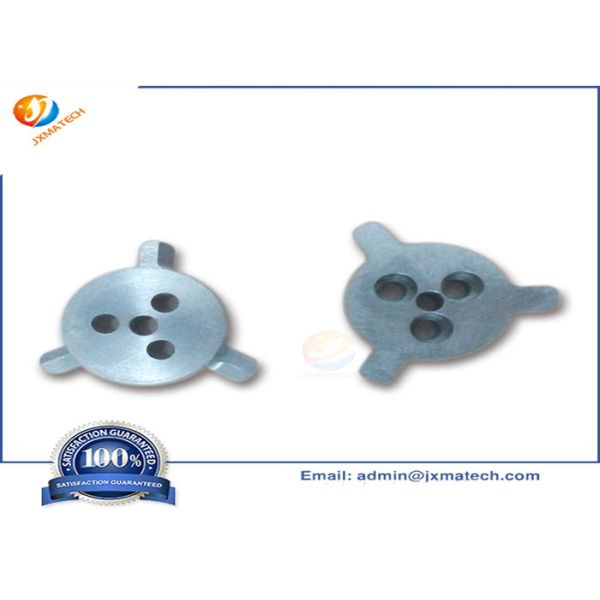

Ion Implantation Parts Picture:
