AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife
Specifications
Brand Name :
JINXING
Model Number :
Tungsten Nickel Iron Alloy W95nife
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000kgs/M
Delivery Time :
10~25 work days
Packaging Details :
Plywood Case
Material :
Tungsten Nickel Iron Alloy W95nife/ WNiCu
Surface :
Bright Ground finished
Standard :
ASTM B777 , AMS-T-21014
Density :
17~18.5 g/cm3
Dimensions :
Customized
Application :
Balance weight, Ball bearing, Aerospace
Description

Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife

Tungsten Nickel Iron Alloy has higher density (16.5-18.75g/cm3), higher strength (tensile strength 700-1000Mpa), larger thermal conductivity (5 times that of die steel), and smaller linear expansion coefficient ( Only 1/2-1/3 of iron or steel), good electrical conductivity and plasticity, excellent weldability and processing performance. Our W-Ni-Fe alloy is used in collimators and shielding components to provide protection against x-ray and gamma-ray radiation. A product made of tungsten, nickel and copper, distinguished by its non-magnetic properties. This material is used to avoid magnetic fields.

Tungsten nickel iron alloy has excellent physical and chemical properties and is widely used in information, energy, metallurgy, aviation, aerospace, national defense, military industry, nuclear industry and other fields. The main products are counterweights, counterweights, radiation shielding, gyroscope rotors, armor-piercing bullet cores, switch contacts, etc.

type Density(g/cm³) Tensile strength(MPa) Elongation(%) Hardness(HRC)
85W-10.5Ni-4.5Fe 15.8~16.0 700-980 20-33 20-28
90W-7Ni-3Fe 16.9~17.15 700-980 20-33 24-32
90W-6Ni-4Fe 16.8~17.0 700-980 20-33 24-32
91W-6Ni-3Fe 17.1~17.3 700-980 16-25 25-32
92W-5Ni-3Fe 17.3~17.5 700-980 18-24 25-32
92.5W-5Ni-2.5Fe 17.4~17.6 700-980 24-30 25-32
93W-4Ni-3Fe 17.5~17.6 700-980 15-25 26-30
93W-4.9Ni-2.1Fe 17.5~17.6 700-980 18-28 26-30
93W-5Ni-2Fe 17.5~17.6 700-980 15-25 26-30
95W-3Ni-2Fe 17.9~18.1 600-750 8-15 28-35
95W-3.5Ni-1.5Fe 17.9~18.1 600-750 8-13 28-35
96W-3Ni-1Fe 18.2~18.3 600-750 6-10 30-35
97W-2Ni-1Fe 18.4~18.6 550-750 8-14 30-35
98W-1Ni-1Fe 18.5~18.7 550-750 2-5 30-36

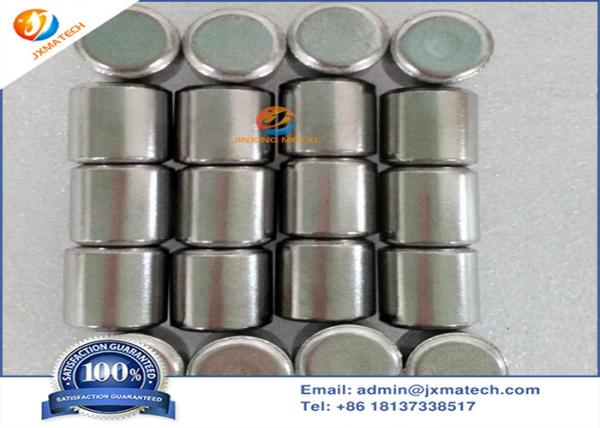

Tungsten Nickel Iron Alloy W95nife Picture:

AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nifeAMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife

AMS-T-21014 Tungsten Heavy Alloy Tungsten Nickel Iron Alloy W95nife

Tungsten Heavy Metal Alloy Bar advantage:

-density

-Excellent mechanical properties, such as high vibration damping ability and high Young's modulus.

Excellent radiation protection characteristics

-High thermal conductivity, low thermal expansion coefficient

-High temperature strength, good thermal shock resistance

-High anti-oxidation and corrosion resistance

Excellent radiation protection characteristics

-High thermal conductivity, low thermal expansion coefficient

-High temperature strength, good thermal shock resistance

-High anti-oxidation and corrosion resistance
