W90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
W90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
W90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
W90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
W90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
W90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
Specifications
Brand Name :
JX
Model Number :
W90cu10 Tungsten Copper Alloy Products Copper Tungsten Parts
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
W90cu10 Tungsten Copper Alloy Products Copper Tungsten Parts
Description

W90cu10 Tungsten Copper Alloy Products Copper Tungsten Parts

Basic Info.

Model NO.
Customized
Certification
ISO9001: 2000
Delivery
in About 20-25 Days
Grade
W50-90
OEM
Offered
Sizes
Made as Per Customers′ Designs
W Content
50% - 90%
Cu Content
10% - 50%
Tolerance
+/-0.05mm
Transport Package
Standard Export Package, Neutral Packing Available
Specification
ISO
Trademark
JX
Origin
P. R. China
HS Code
81019910
Production Capacity
200t/Month

Product Description

Tungsten copper alloy is the composite of Tungsten and Copper, which own the excellent performances of Tungsten and Copper, such as heat-resistant, ablate-resistant, high-intensity, excellent thermal and electrical conductivity. Tungsten copper alloy is easy to be machined. Tungsten copper alloy is used widely in such industries as engine, electrical power, electron, metallurgy, spaceflight and aviation. Using CIP formation, sintered tungsten skeleton and infiltrating copper (silver) technology, large size and special shape products of WCu composites with 6-90 percent of copper are produced, such as electric contacts, electrode, refractory parts, heat sinks and parts of rocket, We can also produce Tungsten copper alloy sheet material, tubing, plate and other small products by mould pressing, extrusion pressing and MIM.

Specifications of WCu Alloy:
Code No. Chemical Composition % Mechanical properties
CU Impurity W

Density(g/cm 3 )
Hardness
HB		 RES( cm)
Conductivity
IACS/ %
TRS/ Mpa
CuW(50) 50 + 2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45 + 0.5 Balance 12.3 125 3.5 49
2
CuW(60) 40 + 2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35 + 2.0 0.5 Balance 13.3 155 3.9 44
CuW(70) 30 + 2.0 0.5 Balance 13.8 175 4.1 42 790
CuW(75) 25 + 2.0 0.5 Balance 14.5 195 4.5 38 885
CuW(80) 20 + 2.0 0.5 Balance 15.15 220 5 34 980
CuW(85) 15 + 2.0 0.5 Balance 15.9 240 5.7 30 1080
CuW(90) 10 + 2.0 0.5 Balance 16.75 260 6.5 27 1160

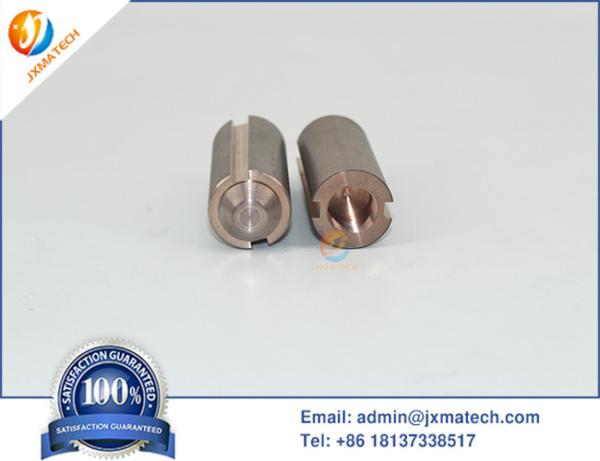

Tungsten Copper Alloy Parts Pictures:

W90cu10 Tungsten Copper Alloy Products Polishing Ablate ResistantW90cu10 Tungsten Copper Alloy Products Polishing Ablate Resistant
