Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Specifications
Brand Name :
JX
Model Number :
Molybdenum Tube purity 99.95% Molybdenum alloy Tzm Tube
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10kg
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
500 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Product Name :
Molybdenum Tube purity 99.95% Molybdenum alloy Tzm Tube
Grade :
Mo
Density :
10.2 g/cm3
Purity :
>=99.95%
Tensile Strength :
>320 MPa
Elongation :
<21%
Standard :
ASTM B387-2010
Application :
Semiconductor Industry
Description

Molybdenum TubeMolybdenum Tube Molybdenum Tube purity 99.95% Molybdenum alloy Tzm Tube

Molybdenum tubes specification:
1) Purity≥99.95%
2) Density:10.2g/cm3
3) Size:As your need, OD140-180mm, ID125-135mm, Length<300mm
4) Flatness tolerance:<4um
5) Roughness:Ra1.6-Ra0.8
6) Surface: polished, ground.

1. Purity: Mo>= 99.95%
2. Standard: GB/T 4182 or ASTM
3. Property specification
1) high melting point, high strength, 2) smooth and clean surface, 3) good conductions, small linear expansion coefficient and good heat-resistance.
Molybdenum Tube Chemical composition

Content of molybdenum Content of all other elements Content of each element
≥99.95% ≤0.05% ≤0.01%

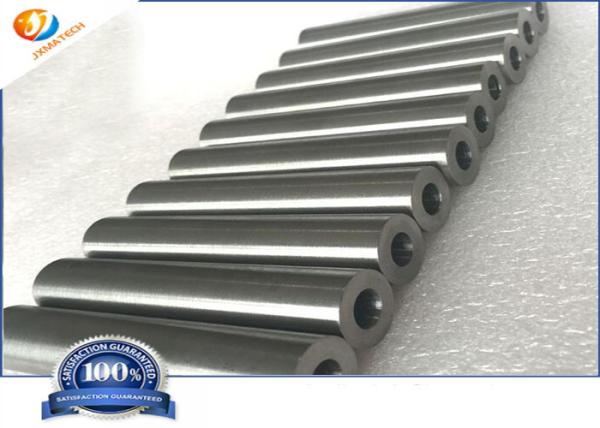

Molybdenum Tube Picture:
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3

5. Molybdenum tube diameter:

Diameter Wall thickness
Length
30-50 2~10 <1300
50-100 3~15
100-150 3~15
150-200 5~20
200-300 8~20
300-400 8~30
400-450 8~30
450-500 8~30


6. Application of Molybdenum tube
It is mainly used in high temperature instruments, thermocouple protection tube, heat pipe, sintering pipe, protection tube, etc. and used in vacuum high temperature industry, electronic industry, sapphire thermal field and industrial production
