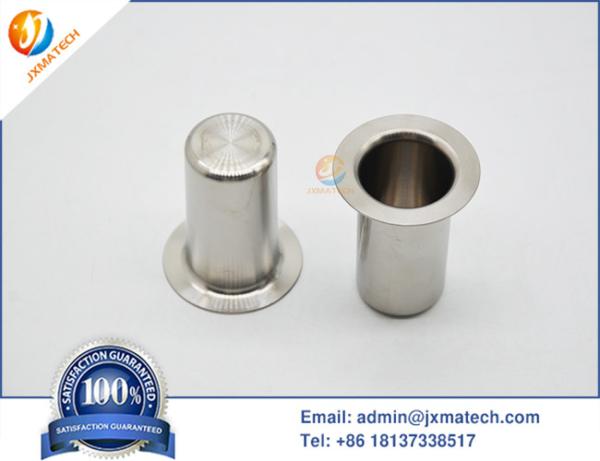

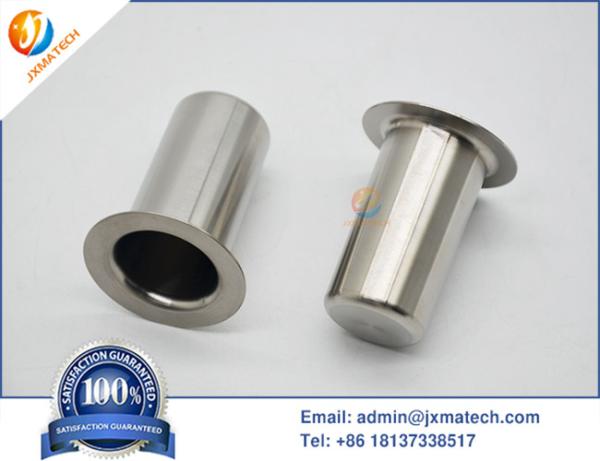

High Strength Titanium Alloy Crucibles Grade 5/Grade 7
High Strength Titanium Alloy Crucibles Grade 5/Grade 7
High Strength Titanium Alloy Crucibles Grade 5/Grade 7
High Strength Titanium Alloy Crucibles Grade 5/Grade 7
High Strength Titanium Alloy Crucibles Grade 5/Grade 7
High Strength Titanium Alloy Crucibles Grade 5/Grade 7
Specifications
Brand Name :
JX
Model Number :
Titanium Alloy
Certification :
ISO9001
Place of Origin :
CHINA
Delivery Time :
25 Days
Packaging Details :
plywood cases
Description

High Strength Titanium Alloy Crucibles Grade 5/Grade 7 Description

Grade 5 Titanium alloy, also known as Ti-6Al-4V, is mainly composed of 6% aluminum, 4% vanadium, and 90% titanium. It maintains good performance in high temperature and low temperature environment, is not easy to deform or damage, and is the most commonly used material in the manufacture of high-quality mechanical parts and aerospace equipment.
Grade7 Is an alloy material composed of titanium and palladium metal elements, in which the addition of a small amount of palladium elements significantly improves the corrosion resistance of the alloy in the reducing medium, and improves the gap corrosion resistance in the high chloride ion concentration medium.
High Strength Titanium Alloy Crucibles Is made of titanium alloy material through powder metallurgy and casting process, mainly used for melting, solidification and refining sapphire growth furnace, quartz glass smelting furnace, rare earth smelting furnace and other industrial furnace single crystal. High Strength Titanium Alloy Crucibles Is a necessary smelting container for high temperature processing industry, with a series of advantages such as high specific strength, good size stability, high plasticity, wear resistance, corrosion resistance, high damping, high tensile strength, high temperature resistance, non-toxic, high purity and long service life. It should be noted that the crucible will be subject to high temperature and chemical corrosion and wear in a long time of use, requiring specific methods for maintenance and maintenance.

Specifications:

Grade Grade 5,Grade7
Material Ti-6Al-4V,Ti≥95%,Pd:0.12-0.25%
Diameter 10mm-30mm
Depth 20mm-80mm
Tensile Strength 650-1200MPa
Density 4.43g/cm3
Shape Square,Round,Hexagonal,Flat,Strip
Surface Polishing,Ground
Standard AMS,GB,ASTM
Certification ISO9001

Pictures

High Strength Titanium Alloy Crucibles Grade 5/Grade 7High Strength Titanium Alloy Crucibles Grade 5/Grade 7
