CuW 70/30 Copper Tungsten Electrodes
CuW 70/30 Copper Tungsten Electrodes
CuW 70/30 Copper Tungsten Electrodes
CuW 70/30 Copper Tungsten Electrodes
CuW 70/30 Copper Tungsten Electrodes
CuW 70/30 Copper Tungsten Electrodes
Specifications
Brand Name :
JX
Model Number :
CuW
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
500kg per month
Delivery Time :
25 Days
Packaging Details :
plywood cases
Material :
CuW70,CuW75
Density :
14.75-17.65g/cm3
Size :
Customised
Coefficient of thermal expansion :
7.0-7.5(10-6K)
Thermal conductivity :
165-200 W/(mK)
Surface :
Polish,Ground
Description

CuW 70/30 Copper Tungsten Electrodes Features & Application

Copper-tungsten alloy is composed of tungsten and copper two-phase monomer evenly mixed metal sweating materials, in the high-temperature industry, electronics and aerospace industry occupies an important position. CuW 70/30 Copper Tungsten Electrodes are mainly made of mixed powder, pressed, sintered, fused and cold processed. Special attention should be paid to alloy composition and density during processing. Its common products are bars, plates, fasteners and embedded electrodes, which can be selected according to the actual application field. CuW 70/30 Copper Tungsten Electrodes have the advantages of high melting point, good plasticity, strong heat dissipation, resistance to arc ablation, good electrical conductivity, low electrode loss, low coefficient of thermal expansion, long service life, etc. It is suitable for TIG welding,MIG welding, resistance welding and EDM. It can reduce material loss and improve welding quality at the same time.

CuW 70/30 Copper Tungsten Electrodes Specifications:

Material CuW50,CuW60,CuW70,CuW80,CuW90
Technique Extruding,Forging,Rolling,Sintering,Hot Isostatic Pressure,Machining
Purity Cu:10%-50%
Width 5mm-300mm
Length <2000mm
Density 14.75g/cm3
Surface Grinding,Polishing
Delivery Time 25 days
Standard GB/T3875.ASTM B760
Certification ISO9001:2008

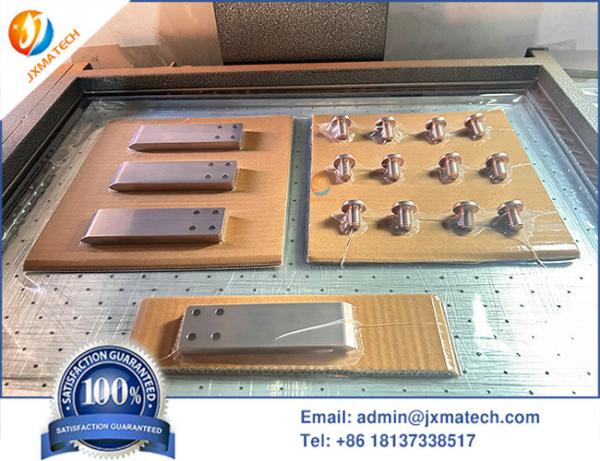

CuW 70/30 Copper Tungsten Electrodes Pictures:

CuW 70/30 Copper Tungsten ElectrodesCuW 70/30 Copper Tungsten Electrodes
