Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
Wear Resistance Textile Alumina Ceramic Rod for Machinery
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

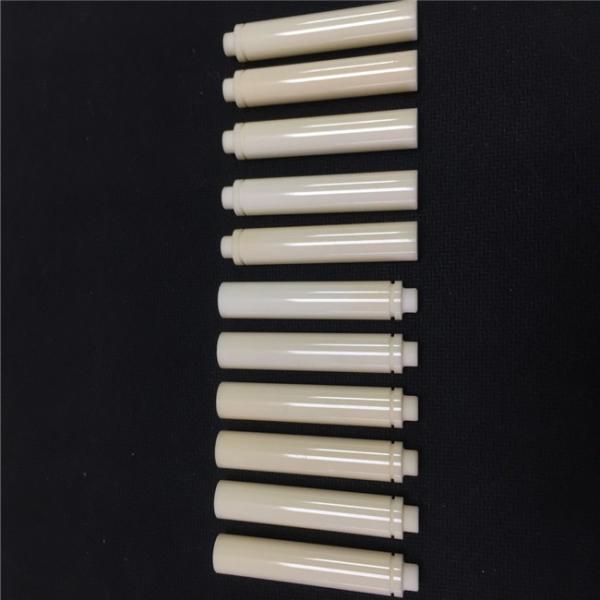

Wear Resistance Textile Alumina Ceramic Rod for Machinery


Description:

Alumina or aluminum oxide (Al2O3) in its various levels of purity is used more often than any other advanced ceramic material.

This material has very high hardness, very high stiffness, very good corrosion resistance to chemicals at high temperature, and very high refractoriness or use temperature.

The applications for alumina advanced ceramics are heavy-duty forming tools, substrates and resistor cores in the electronics industry, tiles for wear protection and ballistics, thread guides in textile engineering, seal and regulator discs for valves, heat-sinks for lighting systems, protection tubes in thermal processes or catalyst carriers for the chemicals industry.

Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm
15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1.Withstand high temperature: with high melting point, high boiling point characteristics, can be used under high temperature is not affected.
2.Not easy to corrode: not affected under strong acid, strong alkali, inorganic and organic salt conditions.
3.Antimagnetic: Because the product material is non-magnetic, it does not absorb dust, which can reduce surface peeling.
4.Electrical insulation: it is an insulator at room temperature with high resistivity, which can be used in equipment requiring insulation.


Application:

1. mining industry.

2. Cement industry.

3. Coal handling industry.

4. Steel industry.

5. Port industry.

6. Power plant.

7.Textile.


Why Choose Us?

1.5 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service.

More pictures:

Wear Resistance Textile Alumina Ceramic Rod for Machinery

Wear Resistance Textile Alumina Ceramic Rod for Machinery

Wear Resistance Textile Alumina Ceramic Rod for Machinery

Wear Resistance Textile Alumina Ceramic Rod for Machinery

Wear Resistance Textile Alumina Ceramic Rod for Machinery
