Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Specifications
Brand Name :
Manyoung
Model Number :
Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Place of Origin :
Suzhou,China
MOQ :
10pcs
Price :
$10.00 - $1,000.00 / Piece
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
20days
Packaging Details :
standard pack, carton box、wooden box
height range :
1-200mm / customized
Diameter range :
1-400mm / customzied
Flexural Strength :
1250 MPa
Advantage :
Long Working Life
Item :
Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Density :
6.0g/cm3
Bibulous Rate :
<0.01%
Surface :
Smooth
Heat Expansion rate (10-6K-1) :
10
color :
black,yellow,white
Description

Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube

Description:

Unlike traditional ceramics that tend to be hard and brittle, Zirconia Ceramic offers high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Zirconia is a very strong technical ceramic with excellent properties in hardness, fracture toughness, and corrosion resistance; all without the most common property of ceramics – high brittleness. Its unique resistance to crack propagation and high thermal expansion make it an excellent material for joining ceramics with metals like steel.

Technical Parameters:

Performance

Unit

Typical value

Density

g/cm3

>6.0

HV Hardness

Kg/mm2

>1300

Compressive Strength

MPa

 5500

Flexural Strength

MPa

 1250

Modulus of Elasticity

Gpa

200

Thermal Conductivity

W/(m.k)

3(20-400℃)

Thermal Expansivity Cofficient

10^-6K^-1

 10

Facture Toughness

Mpa.m0.5

 8

Grain Size

 um 0.5


Principal characteristic

1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...

2. Hardness Strength Up To Mohs 9.0; HRA 80-90, Wear Resistance wear rate 0.68 mm3·m-2·h-1
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...

Application :


Zirconia tubes and and rods are used in shaft, plunger, sealing structure, automobile industry, oil drilling equipment, Insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.

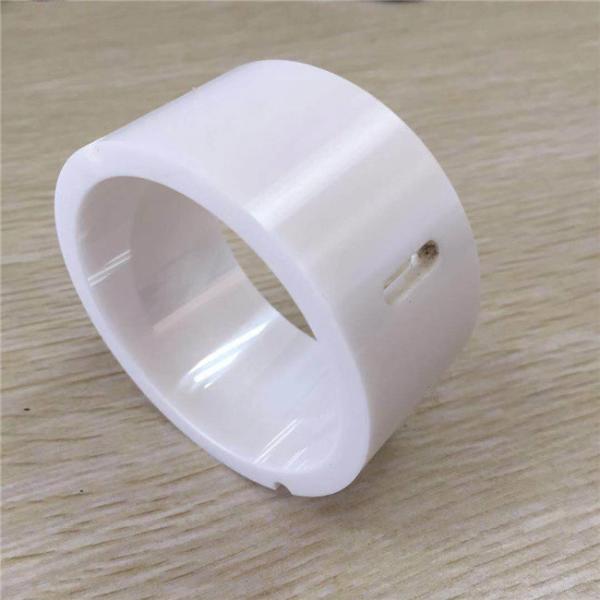

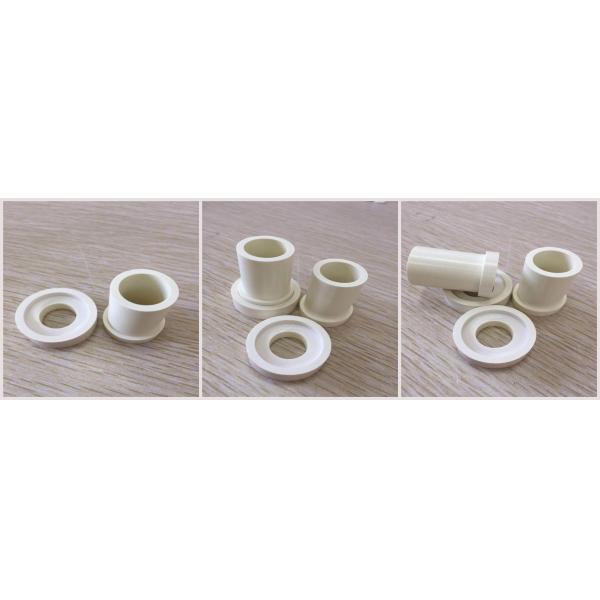

More pictures:

Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube

Packaging:

Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
