High Precision White Zirconia Ceramic Plate
High Precision White Zirconia Ceramic Plate
High Precision White Zirconia Ceramic Plate
High Precision White Zirconia Ceramic Plate
Specifications
Brand Name :
Manyoung
Model Number :
High Precision White Zirconia Ceramic Plate
Place of Origin :
Suzhou,China
MOQ :
10pcs
Price :
$10.00 - $1,000.00 / Piece
Payment Terms :
T/T
Supply Ability :
1000 Piece/Pieces per Month for High Precision White Zirconia Ceramic Plate
Delivery Time :
20days
Packaging Details :
standard pack, carton box、wooden box
width range :
1-200mm / customized
Length range: :
1-200mm / customzied
Thickness range :
0.5-20mm / customzied
Advantage :
Long Working Life
Item :
High Precision White Zirconia Ceramic Plate
Density :
6.0g/cm3
Bibulous Rate :
<0.01%
Surface :
Smooth
Heat Expansion rate (10-6K-1) :
10
color :
White, yellow
Description

High Precision White Zirconia Ceramic Plate

Description:

Zirconia ceramic parts are made of zirconium oxide ceramics which is a kind of strongest technical ceramic material with exceptional strength, high toughness, and superb reliability. These outstanding characteristics result in excellent resistance to wear and corrosion.

We supply kinds of extreme products according to customers requirements. Such as ultra-precision ceramics or other materials require tolerace 0.01MM or less or mirror facet etc.

Technical Parameters

Performance

Unit

Typical value

Density

g/cm3

>6.0

HV Hardness

Kg/mm2

>1300

Compressive Strength

MPa

 5500

Flexural Strength

MPa

 1250

Modulus of Elasticity

Gpa

200

Thermal Conductivity

W/(m.k)

3(20-400℃)

Thermal Expansivity Cofficient

10^-6K^-1

 10

Facture Toughness

Mpa.m0.5

 8

Grain Size

 um 0.5

Name: High Purity ceramic burning plate as fired for furnace Surface: Polishing
Dimension: According Your Request Technology: Machining
Material: Zirconia Alumina ceramic MOQ: 5PCS
Size: Customized Shipping: DHL EMS UPS FEDEX TNT
Item: Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines OEM: Yes And welcome

Principal characteristic

1. High hardness and High density
2. Low thermal conductivity
3. Chemical inertness
4. Good Wear resistance
5. High fracture toughness
6. Good insulation performance
7.High temperature resistance

Application

1.Semiconductor manufacturing equipment parts.
2.LCD manufacturing equipment parts.
3.Vacuum equipment parts.
4.Analyzer parts.
5.Insulation parts.

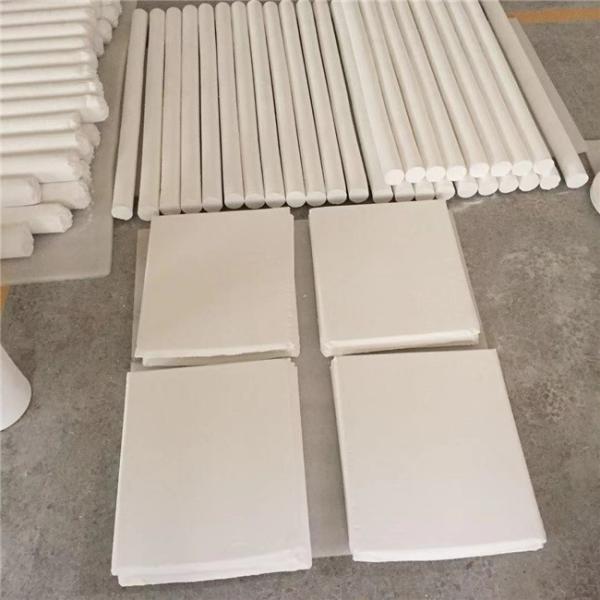

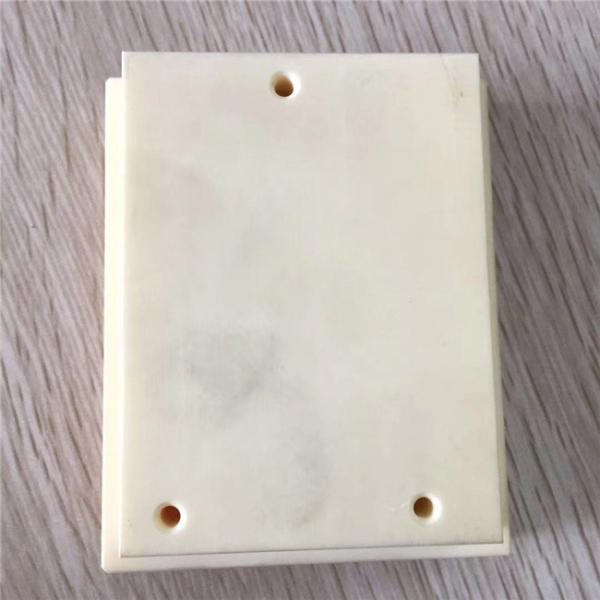

More pictures:

High Precision White Zirconia Ceramic Plate

High Precision White Zirconia Ceramic Plate

High Precision White Zirconia Ceramic Plate

High Precision White Zirconia Ceramic Plate

High Precision White Zirconia Ceramic Plate

Why Choose Us?

1. 5 years of professional production industrial ceramics factory.
2. High quality products with low price.
3. High precision parts with lowest tolerance.
4. Short time for production.
5. Has a group of experienced, professional and efficient R&D team.
6. Has a good reputation in China and abroad.
7. MOQ is not limited, small quantity is welcome.
8. Vigorous team and good after-sales service.
