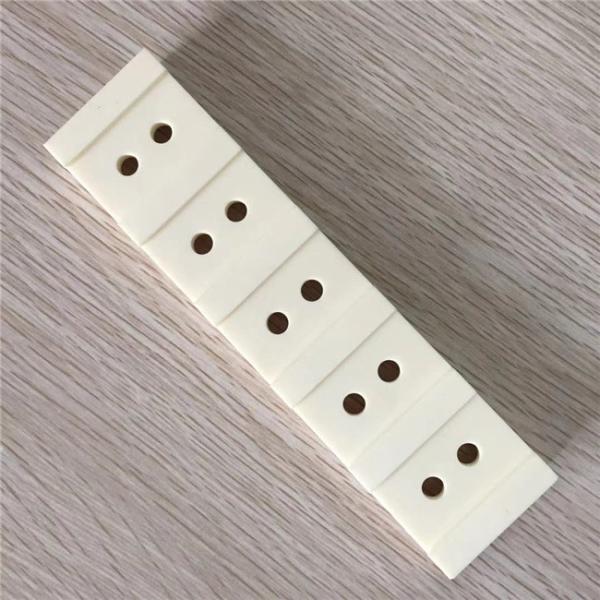

High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate
High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate
High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate
High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
Customize High Temperature Industrial 99% Alumina Ceramic Plate
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

Customize High Temperature Industrial 99% Alumina Ceramic Plate

Description:

Alumina ceramic plates are formed by tape casting, dry pressed or Isostatic pressed and sintered under high temperature to be a strong and dense ceramic part. We can produce different grades of materials to custom specifications by request, in addition to custom compositions for commercial and research applications and new proprietary technologies.
In order to reach some special application, like enhance the insulation strength, dielectric, precision assembly, we always proceed with these ceramic alumina plates with the secondary process with our in-housing manufacturing types of equipment, including diamond polishing, glazed surface, high precision dimensions, and super flat surface and metalized.

Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1. High purity:Good resistance of high temperature and abrasive.
2.Tight Tolerance. we can machine the alumina seal ring to make tight tolerance, good surface roughness and flatness.
3.Various processing methods, casting, preesing, grinding etc.
4.Inspection: each single alumina ring will be checked before shipping.
5.Low transportation cost : We have long time cooperated shipping agency, which can provide very low prices.

Application:

Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.Physical properties.

More pictures:

High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate

High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate

High Temperature 3700Mpa Alumina Ceramic Parts Industrial 99% Alumina Ceramic Plate
