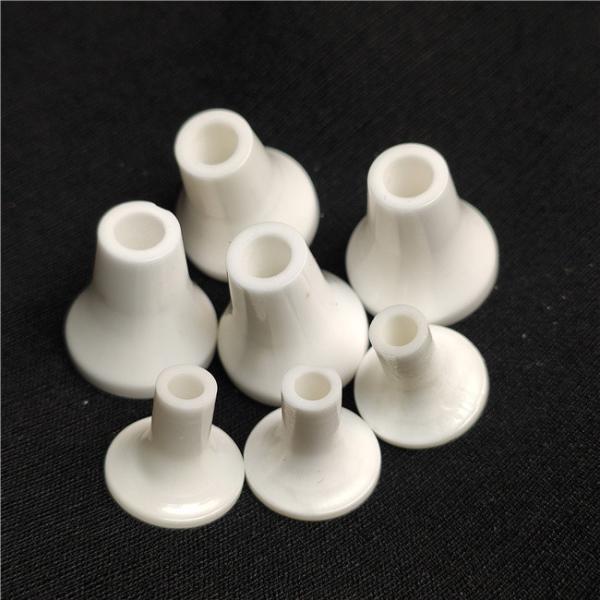

Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C
Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C
Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C
Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Product name :
Polished High Precision Technical Zirconia Ceramic Nozzle
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

Polished High Precision Technical Zirconia Ceramic Nozzle

Description:

Zirconia ceramic parts are made of zirconium oxide ceramics which is a kind of strongest technical ceramic material with exceptional strength, high toughness, and superb reliability. These outstanding characteristics result in excellent resistance to wear and corrosion.

With our production capability through CNC, precision grinding machines, we are able to provide many different level precision zirconia ceramic parts to meet customers' high precision assembly needs.

Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1.High density: over 6 g/cm3, which makes it the densest body of the ceramic products.
2.High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth surface finish.
3.High toughness: over 1200 MPa, approx. 4 times in comparison with 95% alumina.
4. Excellent wear resistance, it's much better than aluminum oxide ceramics with longer life cycle.

Application:

1. Insulation parts in electrical equipment.

2. High-pressure cleaning machines.

3. Sealing structure.

4. Auto mobile industry.

5. Oil drilling equipment.

More pictures:

Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C

Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C

Polished High Precision Zirconia Ceramic Nozzle 15kv/Mm 1550C 2600C
