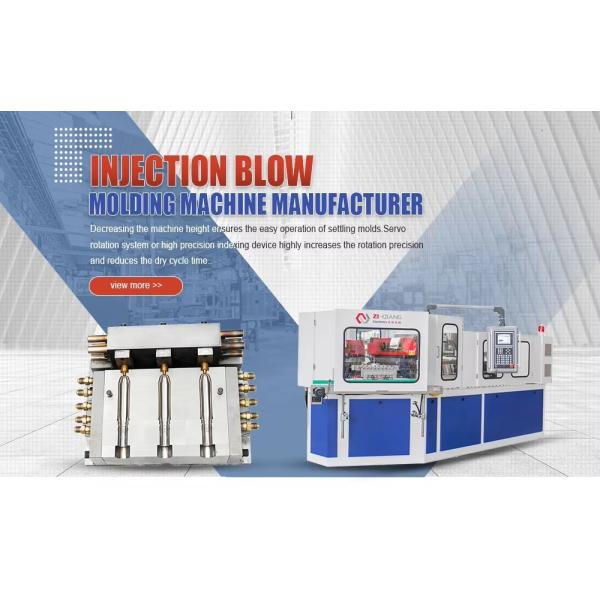

Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke
Specifications
Brand Name :
ZI QIANG
Model Number :
ZQ 110
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
95000USD
Payment Terms :
T/T
Supply Ability :
15 SET/MONTH
Delivery Time :
45 work day
Suitable Material :
HDPE, PP
Max. Opening Stroke :
200-1000 mm
Transport Package :
Film Packing
Blow Unit :
Single
Stripping Stroke :
260 mm
Blow Moulding Type :
Injection Blow Moulding
Heating Power :
30kw

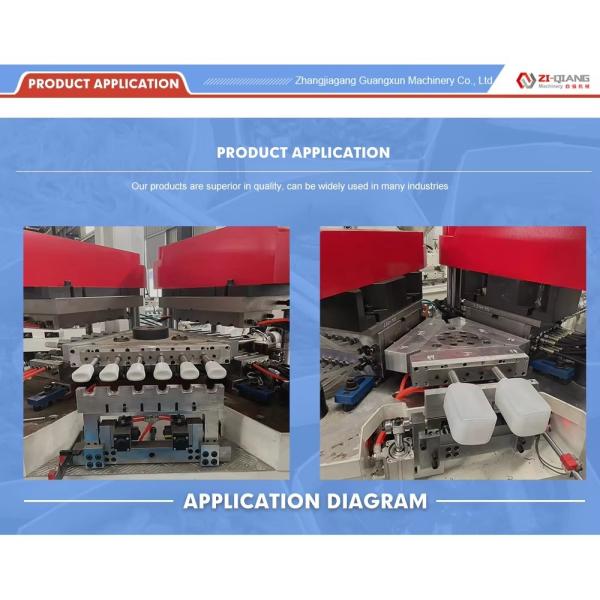

More Application :
Milk & Yogurt Bottle
Injection Clamping :
600KN
Blow Mold Stroke :
120 mm
Production Capacity :
As Per Samples
Station :
Three In One
Injection Clamping Force :
1100 KN
Color :
White
Description

Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke

Item

Unit

ZQ110

Injection System

Screw Diameter

mm

65

Screw L/D

%

22:1

Injection weight

g

415

Heating power

KW

22

Number of barrel zone

6+N

Injection stroke

mm

200

Clamping System

Clamping force of injection

KN

1100

Opening stroke for injection

mm

140

Clamping force of blowing

KN

150

Opening stroke for blowing

mm

140

Lifing height of rotary table

mm

70

Mould

Max.Platen size(L*W)

mm

1100*460

Mold thickness

mm

280

Dia.of bottle

mm

120

Bottle height

mm

220

Suitable bottle height

mm

1-1000

Stripping stroke

mm

260

Hydraulic system

Hydraulic Pressure

Map

14

Motor power

KW

37+37

Dry cycle

S

4

Total Power

KW

90

Operating power

%

52-70

Others

Min.Air pressure of compressed air

MPa

0.7-1.2

Compressed air capacity

M³/min

0.7

Water flowage

M³/h

4

Cooling water pressure

MPa

0.3-0.4

Dimension(L*W*H)

M

5*1.8*2.2

Net weight

Ton

15
