ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles
Specifications
Brand Name :
ZIQIANG
Model Number :
ZQ110
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
95000USD
Payment Terms :
T/T
Supply Ability :
15 SET/MONTH
Delivery Time :
45 work day
Warranty :
1 year
Injection Unit :
Single/Double
Model No :
IBM35D
Screw Diameter :
40mm
Machine Appearance Color :
Customization
Head Heating Power :
5.7kw
Application :
Household Products \ Food Packaging
Frequency :
50/60Hz
Controlling System :
Act Technologies
Voltage :
Customized According To Customer Needs
Logo Customized :
Yes
Hydraulic Pressure :
14 Map
Motor Power :
35KW
Operating Power :
52-70%
Applications :

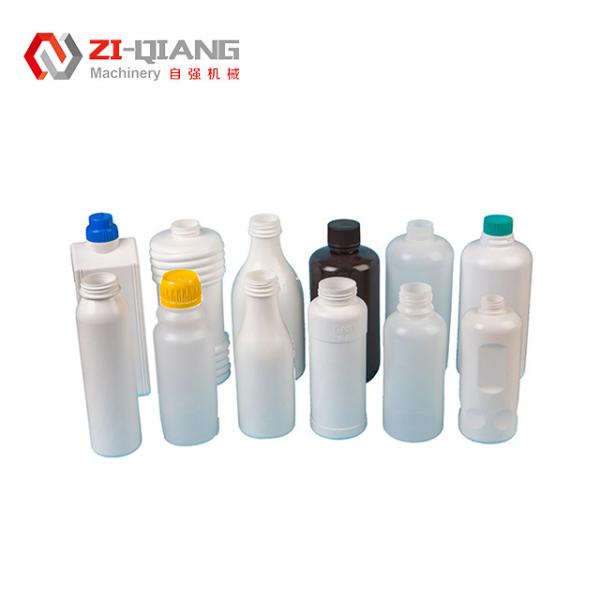

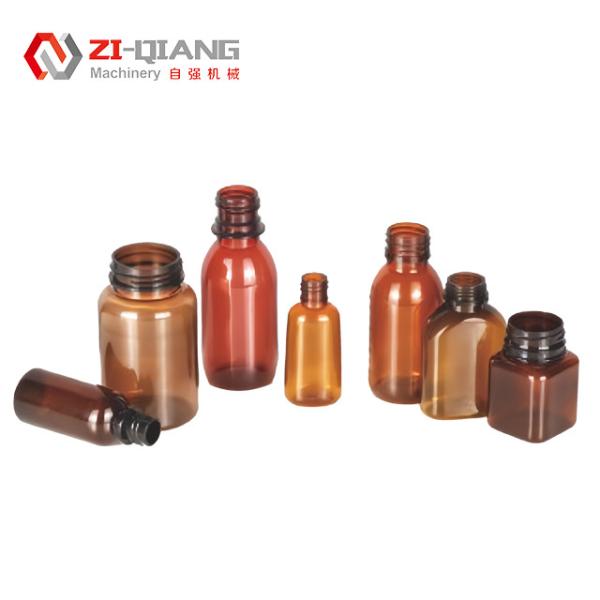

5ml to 1L small plastic bottles
Description

Item

Unit

ZQ110

Injection System

Screw Diameter

mm

65

Screw L/D

%

22:1

Injection weight

g

415

Heating power

KW

22

Number of barrel zone

6+N

Injection stroke

mm

200

Clamping System

Clamping force of injection

KN

1100

Opening stroke for injection

mm

140

Clamping force of blowing

KN

150

Opening stroke for blowing

mm

140

Lifing height of rotary table

mm

70

Mould

Max.Platen size(L*W)

mm

1100*460

Mold thickness

mm

280

Dia.of bottle

mm

120

Bottle height

mm

220

Suitable bottle height

mm

1-1000

Stripping stroke

mm

260

Hydraulic system

Hydraulic Pressure

Map

14

Motor power

KW

37+37

Dry cycle

S

4

Total Power

KW

90

Operating power

%

52-70

Others

Min.Air pressure of compressed air

MPa

0.7-1.2

Compressed air capacity

M³/min

0.7

Water flowage

M³/h

4

Cooling water pressure

MPa

0.3-0.4

Dimension(L*W*H)

M

5*1.8*2.2

Net weight

Ton

15
