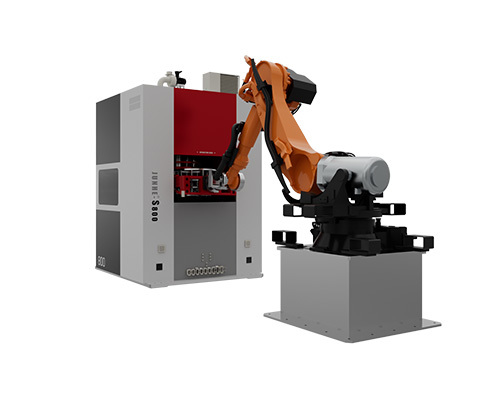

JUNHE® TDST0800R Auto Dip Spin Coating Machine
JUNHE® TDST0800R Auto Dip Spin Coating Machine
Specifications
Brand Name :
JUNHE
Model Number :
TDST0800R
Certification :
ISO 9001 TS16949
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set 2 month
Delivery Time :
2-3 month
Description

1.Product Profile

JUNHE® TDST0800R auto dip spin double basket mechanical hand coating machine is compatible with various materials such as zinc-aluminum micro-coatings, topcoats, sealants, and Teflon, meeting the high yield requirements for coating and batch
control of automotive blind hole fasteners and hardware parts. Low-speed uniform material distribution, high-speed centrifu gation and tilting centrifugation, uniform coating without dead corners, with less effusion and high yield,safety and environ- -
mental friendly, anti-mixing of materials, double basket,low operating cost, informatization,intelligent and IOT upgrade.

2.Functional Property
1,Module standardization: lation,intelligent and IOT optional,easy upgrade,matching with JUNHE® standard curing furnace. modular,standardized design,connect with electric cabinet,whole machine assembly,easy instal-
2,High efficiency: liquid retention in blind-hole parts, robotic dual-basket handling for higher efficiency. Low-speed material homogenization,high-speed centrifugation, tilted tumbling for uniform coating, less
3,Excellent safety and environmental friendly: air,suitable for water-base and solvent-base paint. Anti-splashing coating, overall enclosed, centralized collection of exhaust
4,Excellent batch management: automatic operation,can monitor the whole process. No risk of parts stuck. each batch of workpiece weighing according to the process requirements,the whole process
5,A wide range of module options are available: module, unloading module, paint constant temperature module, paint control and detection module, exhaust gas treatment coating machine module, loading module, weighing module, anti-collision
module, standardization and modularization of vulnerable parts. Plug-and-play between modules enhances flexibility and
3.Technical Parameter

Basket diameter

Ø800×450mm

Max loading capacity

180kg/basket

Shortest production cycle

180s

Capacity

M10x50mm full-thread bolts)

Max centrifugal speed

320r/min

Exhaust gas collection rate

95%

Max tilting angle

60°

Effusion rate control

＜5‰

Machine size

2550×2250×3280mm

Total power

≤30kw(excluding the robot)

Suitable furnace

Junhe mesh belt curing furnace,stepping tray-type curing turnace

Suitable paint

All types water-base and solvent-base paint

Suitable workpieces

≤200mm external and internal hexagon bolts,cross bolts,nuts,stamping parts
