TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Specifications
Brand Name :
Ziitek
Model Number :
TIS800K
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Color :
Beige
Thickness range(inch/mm) :
0.006/0.152
Density :
2.4g/cc
Keywords :
Thermal Conductive Insulating
Construction & Compostion :
Ceramic Filled Silicone Elastomer / Polyimide Film
Thermal Conductivity :
1.3W/mK
Continuous use temp :
-60~180℃
Application :
Power Semiconductors
Description

TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

TIS®800K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance. The TIS®800K model is designed for screw-mounted applications on device openings, with the composite polyimide film providing superior dielectric insulation. Its soft thermal coating enhances gap-filling capability and improves handling during assembly.

Features

>Relatively soft surface,good thermal conductivity
>High voltage insulation, low thermal resistance
>Tear-resistant and puncture-resistant

Applications

>Power supplies and automotive battery packs
>Power semiconductor devices
>Audio-visual products
>Charging stations

Typical Properties of TIS®800K series
Product Name TIS®806K TIS®808K TIS®810K Test Method
Color Light Amber Visual
Polyimide Film Thickness(inch/mm) 0.001"/0.025mm ASTM D374
Total Thickness 0.006"/0.152mm 0.008"/0.203mm 0.010"/0.254mm
Density (g/cc) 2.0 ASTM D297
Tensile Strength (Mpa) 10 ASTM D412
Recommended Operating Temperature (℃) -45 to 160℃ ***
Dielectric Breakdown Voltage (VAC) 6500 7000 7500 ASTM D149
Dielectric Constant 3.8 ASTM D150
Volume Resistivity(Ohm-cm) 3.5X10¹³ ASTM D257
Flame Rating 94 V0 equivalent UL
Thermal conductivity 1.3 W/mK 　

Standard Thickness: 0.006" (0.152 mm), 0.008" (0.203 mm), 0.010" (0.254 mm)
For other thickness options, please contact us.

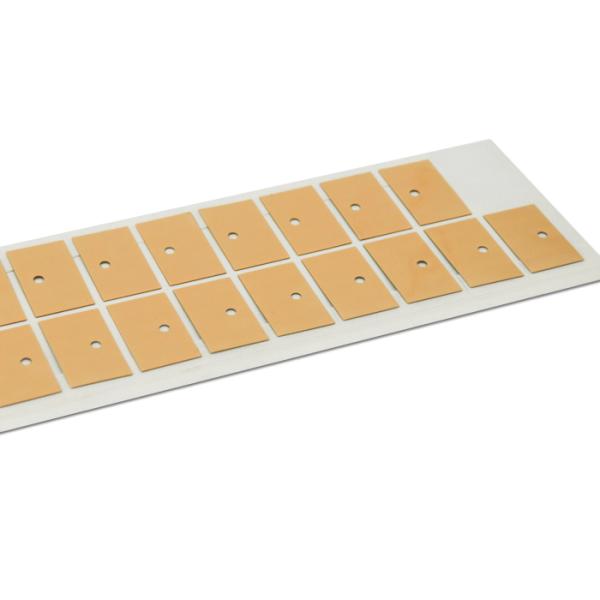

Standard Size: 10" x 100' (254 mm x 25.4 m).The TIS®800K series can be die-cut into various shapes for supply.

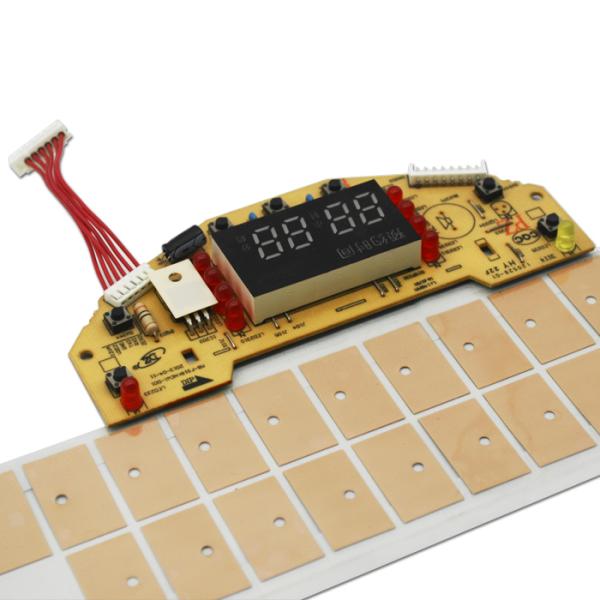

TIS800K Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
