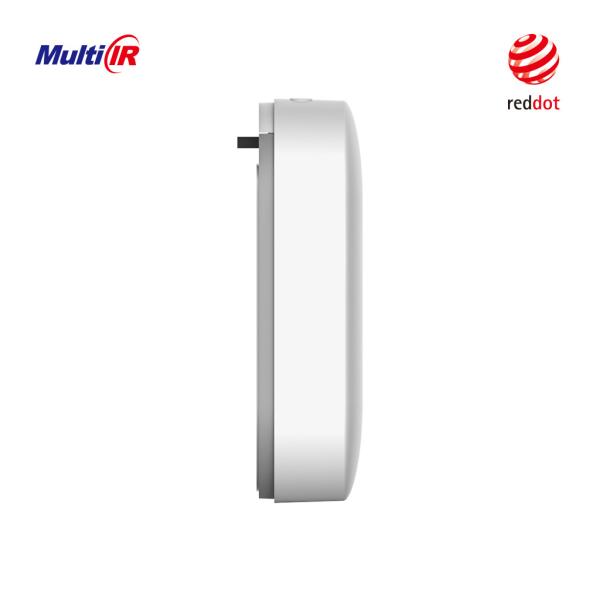

CE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily Installation
CE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily Installation
CE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily Installation
CE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily Installation
Specifications
Brand Name :
Multi IR
Model Number :
MIR-MC100
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen, China
MOQ :
Standard packing 200pcs. OEM packing 2000pcs
Price :
Negotiable
Payment Terms :
T/T in advance
Supply Ability :
5000pcs/day
Delivery Time :
25 working days
Packaging Details :
160PCS/CTN, Carton size: 315*275*260mm
Product Type :
Zigbe Door Sensor
Communication protocol :
Communication protocol
Transmission Frequency :
2.4GHz
Transmission Power :
≤15dBm
Communication Distance :
100m (open air)
Working Voltage :
DC 3V (CR2032)
Alarm Distance :
≥20mm
Low battery indication :
2.6V±0.2V
Standby current :
≤10uA
Working current :
≤30mA
Working temperature :
-10℃～+55℃
Battery life :
1 year(20 times a day)
Description

Tuya Wireless Smart Home Zigbee Door Sensor, CR2032 Battery, Zigbee Door Window Sensor

Function description

  • 【Zigbee Protol】 The Zigbee door and window sensor have to connect to a Zigbee hub to report the alarm timely. It works more stable than the WiFi door sensor.

  • 【Easy to Install】 With a 3M sticker, users just stick it on any door jamb or window frame.

  • 【App Control】Users can check Zigbee door sensor historical records and open/close status on Smart Life App.

  • 【Real-time Door Open Detection】 When the door/window opens, the Door and Window Sensor will send an alert push notification to the user's App on the smartphone and activate the local alarm on the Hub. Users can connect to a Zigbee siren to make an on-site alert.


Technical parameters

Communication protocol Zigbee
Transmission Frequency 2.4GHz
Transmission Power ≤15dBm
Communication Distance 100m (open air)
Working Voltage DC 3V (CR2032)
Alarm Distance ≥20mm
Low battery indication 2.6V±0.2V
Standby current ≤10uA
Working current ≤30mA
Working temperature -10℃～+55℃
Battery life more than a year(20 times a day)
Dimension

Mainbody:
52.5mmx26.5mmx13.8mm
Magnet:
25.5mmx12.5mmx13mm

CE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily InstallationCE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily InstallationCE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily InstallationCE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily InstallationCE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily InstallationCE ROHS Smart Home Door Window Sensor 3V With 3M Sticker Easily Installation
