Specifications
Brand Name :
ZHYQ
Model Number :
N70 N80 N90
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
display range: :
0001-9999Mpa (radix point alterable)
precision: :
0.2%FS+/-1bit relay alarm pressure indicator
pressure signal output: :
output: 2mV/V,3.3mV/V,0~10mA,0~20mA,4~20mA,0~5V,1~5V,
sampling speed: :
20 times/second
Description

One Half 20 Hydraulic Pressure Oil Plastics Latex Digital Pressure Controller

Description

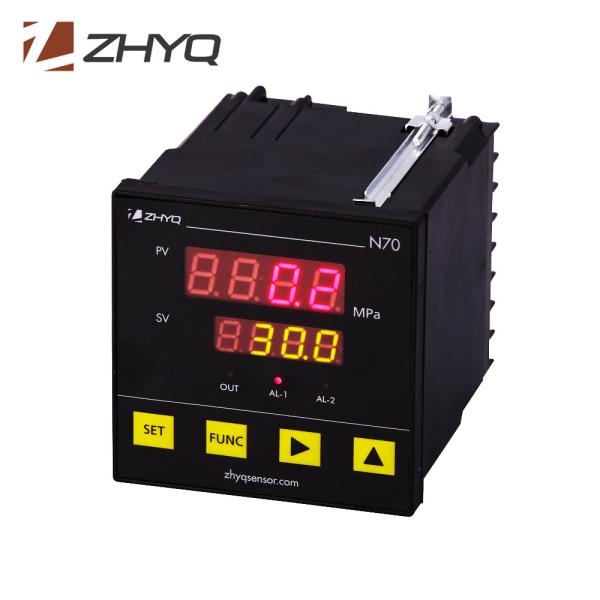

N70 N80 N90 Digital Pressure Instruments with different output is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power.

This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, , ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.

Specification

Name panel Digital pressure indicator
(1) Display Dual 4-digit Green and Red LEDs
(2) Resolution 0.2% FSO ± 1
(3) LEDs Out, Alarm-1, Alarm-2, CALibration
(4) Input Sensibility

2.5mv/V or 3.3 mv/V (automatic selection)

4-20mA , 0-5V ,0-10V optional
(5) Sampling Speed 20 per second
(6) Excitation Voltage +9 VDC (output to transducer)
(7) All Output Relays Relay 220V 1A
(8) Retransmission 4~~20 mA standard current loop
(9) Communication RS-485 MODBUS( PY500 Only)
(10) Alarm Range 0001 – 9999 PSI or Bar (configurable)
(11) Temperature 0 - 55°C
(12) Humidity <= 80% RH
(13) Calibration 80% FSO (Full Scale Output)
(14) Power Supply 110/220VAC or +24VDC (designated while purchasing)
(15) Size 96mm x 96mm x 100 mm (W x H x D)
(16) Panel Cutout 92mm x 92mm
(17) Weight 400(Maximum) grams


One Half 20 Digital Pressure Controller Hydraulic Pressure Oil Plastics LatexOne Half 20 Digital Pressure Controller Hydraulic Pressure Oil Plastics Latex
