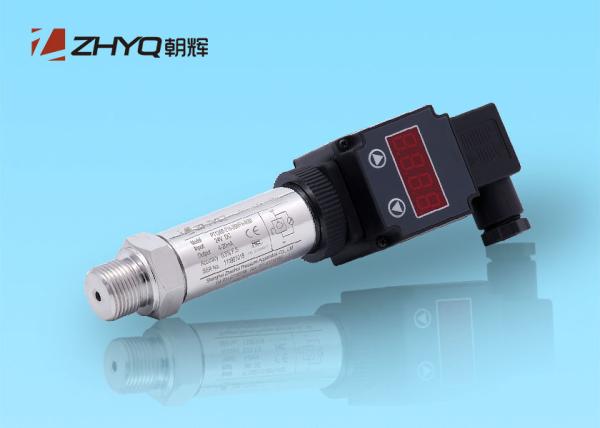

LCD Display Industrial Pressure Transmitter , Oil Fuel Water Air Pressure Sensor 4-20mA
LCD Display Industrial Pressure Transmitter , Oil Fuel Water Air Pressure Sensor 4-20mA
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-216
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
-1 ~ 0~2000bar
Accuracy :
0.5%FS; 0.25%FS
Output :
4-20mA,0-10V, 0-5V, 0.5-4.5V
Input voltage :
24V DC
Operate Temperature :
-20~80℃
Overload pressure :
150%FS
Medium material :
Stainless steel (SS304 or SS316)
Electric connector :
Hirschman（DIN）, M12,4pin, 5pin connector, grand cable
Description

LCD display oil fuel water air pressure sensor transmitter 4-20ma

Adopting global advanced electron ceramic technology, PT124B-216 (LED display) with low range has the character of overload resistance, high impact resistance, excellent linearity, lasting high stability, wide temperature range, corrosion proof, etc. This series can be applied in Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields.

Application
Defense industry, Scientific research, Space industry
Petroleum, Chemical industry
Electric power ,Ocean and other fields

Feature
Pressure Range:-1~0~2000bar
LED local display
High accuracy, stable capability, little temp-draft
Cverload resistance ,high impact resistance,excellent linearity
Lasting high stability
Wide temperature range, corrosion proof

Specification

Range: -1~ 0~2000bar
Accuracy: 0.5%FS
Nonlinearity: 0.2%FS
Reliability: 0.05%FS
Output: 4-20mA(2 Wire), alarm optional
Input voltage: 24(12~36)VDC (Amplify signal )
Operat Temperature: -40~80℃
Compensated temperature: 0~70℃
Overload pressure: 150%FS
Medium material: stainless steel
Electric connector: Hirschman(Big DIN)
Process connector: G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design)

Ordering Guide

Model Range(bar) Output Screw Thread Electric connection Other requirement
PT124B-216 --- --- --- --- ---
Example: PT124B-216-50Bar-4/20mA-G1/2-Hirschmann
