Engineered for highly intricate hollow plastic parts, our Complex Multi-Piece Cast Aluminum Rotomolding Mold System is built to solve difficult tooling challenges involving complex undercuts, internal channels, side ports, and tight-tolerance geometries.

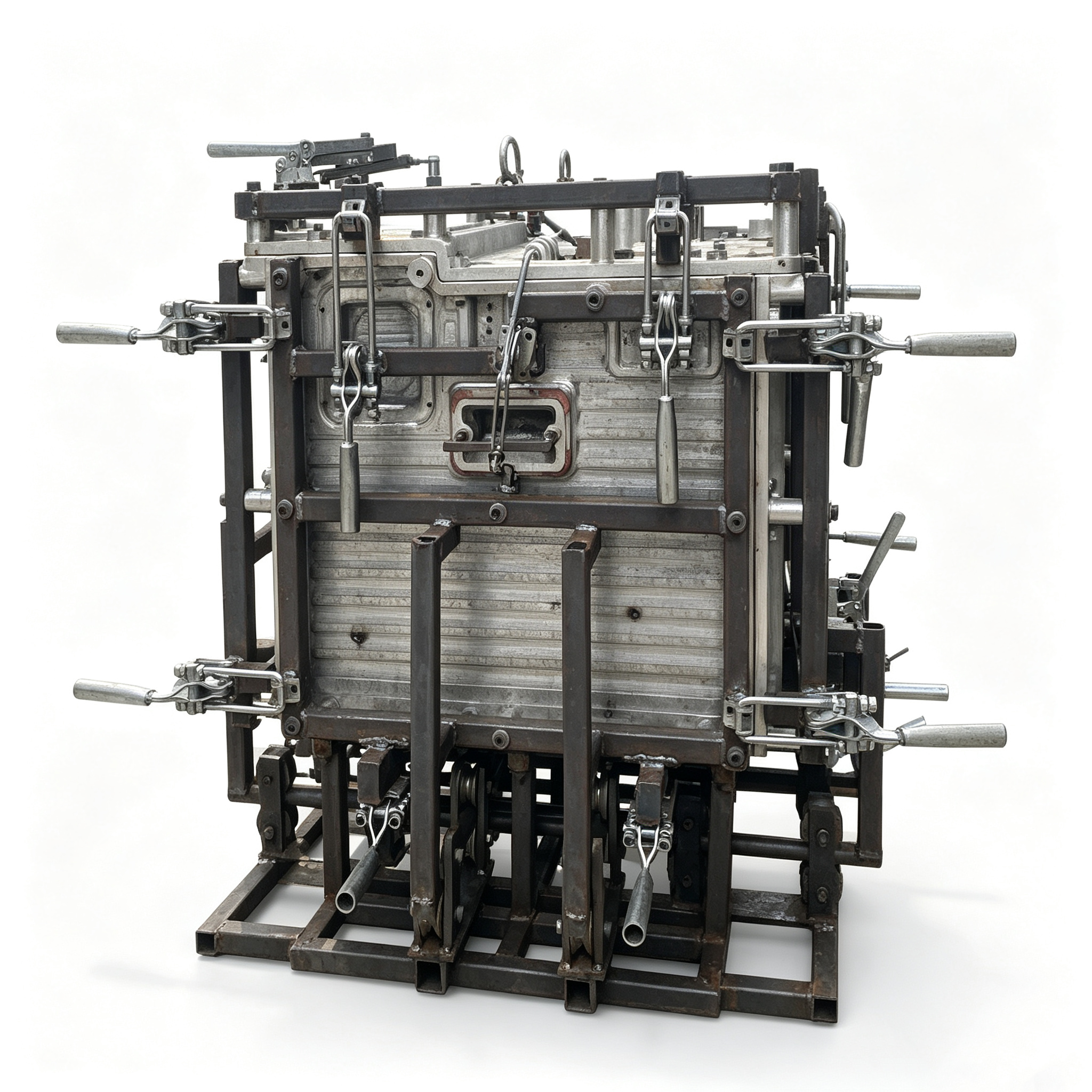

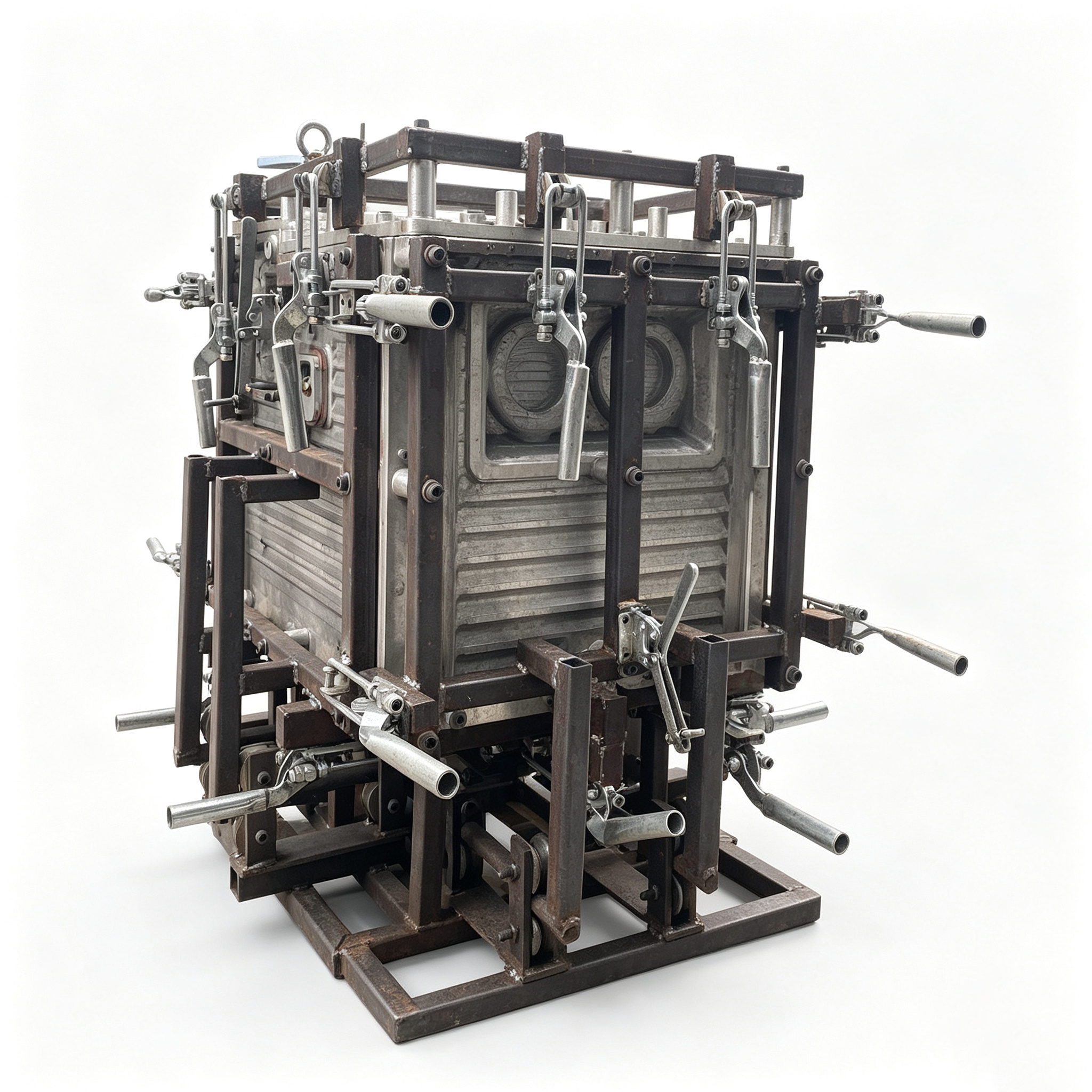

Constructed from CNC-machined, high-density aluminum alloy castings, this advanced mold features a multi-split cavity design integrated with manual/mechanical side slides and perimeter toggle clamps. The entire assembly is housed within a rigid structural steel frame equipped with a bottom-mounted linkage ejection system, ensuring fluid mold opening, effortless part release, and flawless surface replication without damage to delicate part features.

Ideal for demanding applications such as heavy equipment fluid tanks, medical device housings, and automotive air ducts, our multi-action rotomolding tooling delivers consistent thermal performance, reduced manual labor, and long-term operational durability under thermal stress.

• Multi-Action Side-Core Design: Engineered with precision side slides and multi-angle split lines to handle complex part undercuts, inserts, and lateral ports easily.
• Integrated Mechanical Ejection: Bottom linkage ejection system facilitates rapid and smooth demolding of deep-draw plastic parts, reducing scrap rates.
• 3D Structural Steel Cage: High-rigidity external framework guarantees accurate alignment of multi-piece mold cavities during extreme heat cycles.
• Optimal Thermal Efficiency: Premium cast aluminum cavity provides quick, uniform heat transfer to ensure precise wall thickness throughout complex geometries.
• Comprehensive Custom Engineering: Full turnkey OEM/ODM services, including mold flow analysis, shrinkage calculation, and custom machine mounting design.
