Specifications
Place of Origin :
Hunan, China
Brand Name :
EHRLE
Model Number :
EC500
MOQ :
1
Design :
Two Post
Type :
two post car lift
Warranty :
One year warranty
Drive Mode :
Hydraulic
Lifetime :
10 Years
Maximum Lift Height (in.) :
1800mm
Weight Capacity (tons) :
5T
Maximum lifting weight :
5.0T
Lifting height :
1800mm
Minimum height :
90mm
Overall height :
3720mm
Inner width of column :
2840mm
Overall width :
3500mm
Short arm :
555-935mm
Long arm :
895-1360mm
Power :
2.2KW
Power supply :
3P\380V\50hz
Description
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

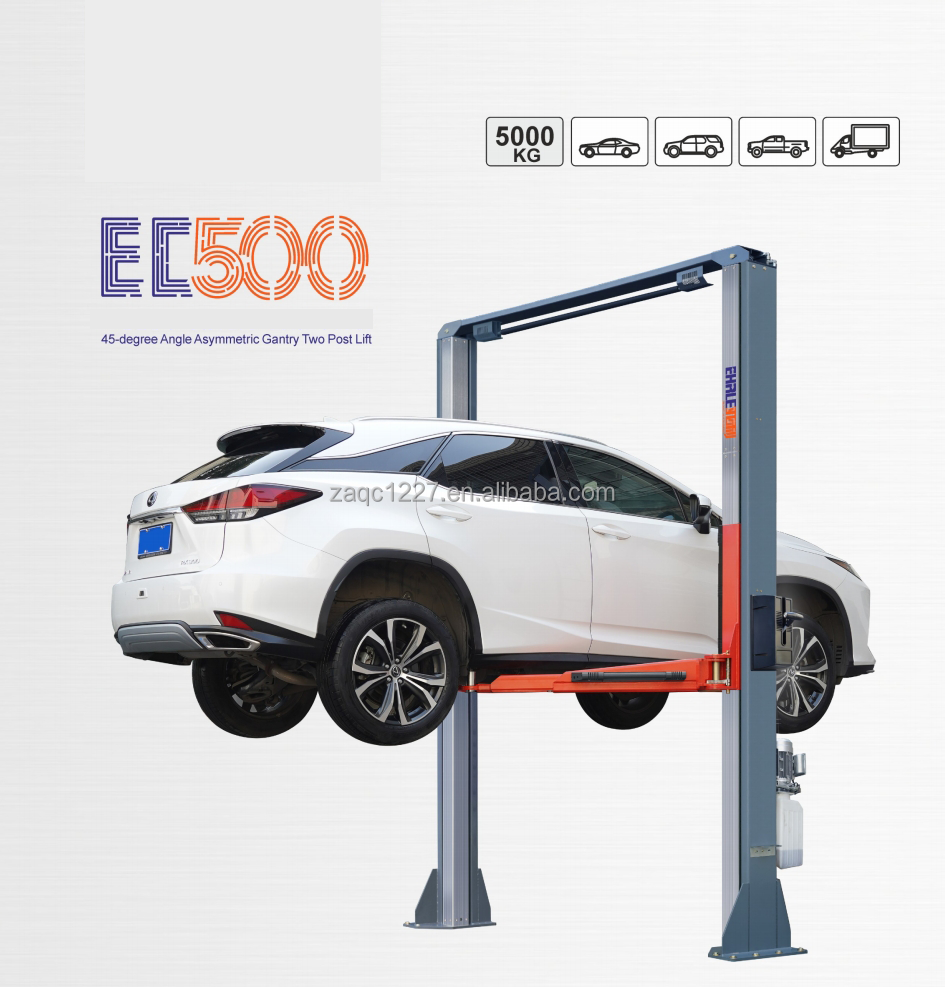

Product Overview

HYDRAULIC LIFT - Available in 5500kg/5000kg/4500kg/4000kg capacities

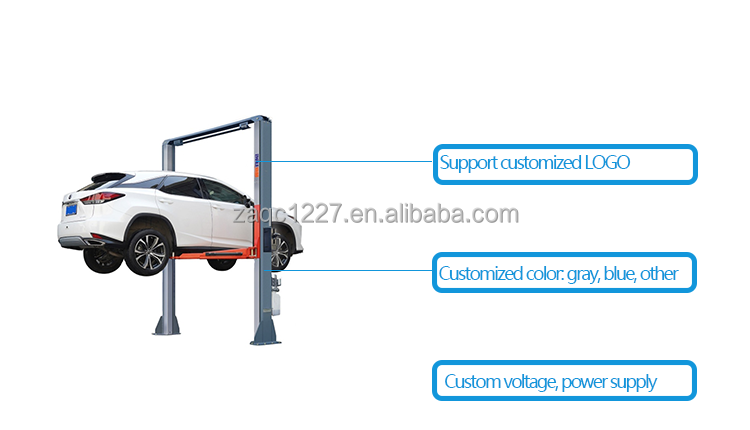

Factory wholesale in stock. Support customized LOGO, color, power, voltage, and power supply. MOQ: 1 piece

  • Rated load of 5000KG, suitable for sheet metal, machine repair, tire replacement and other workstations
  • 45-degree asymmetric column design saves workstation space while allowing wider door opening angles
  • Three-section and two-section arm design accommodates different chassis models

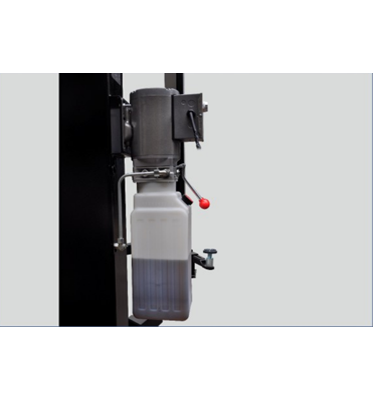

  • Aluminum shell copper wire motor for fast heat dissipation and high efficiency
  • Comprehensive safety features including door anti-collision pads, limit switches, foot guards, and protective cloth
  • Fully electric operation with 24V safe operating voltage
  • Double safety insurance with mechanical locks and hydraulic explosion-proof valves
  • Italian imported sealing rings reduce oil leakage rates
  • Modular ABS waterproof, oil-proof control box with imported brand buttons
  • Electrostatic powder spraying process for durable, attractive finish
  • Tested with 120% dynamic loading and 150% static loading
  • Complies with CE standards
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

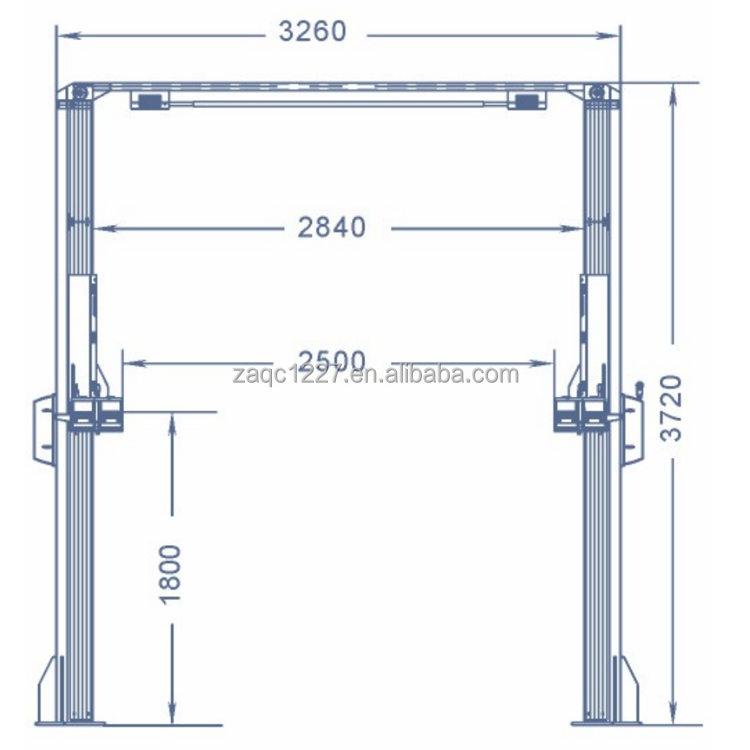

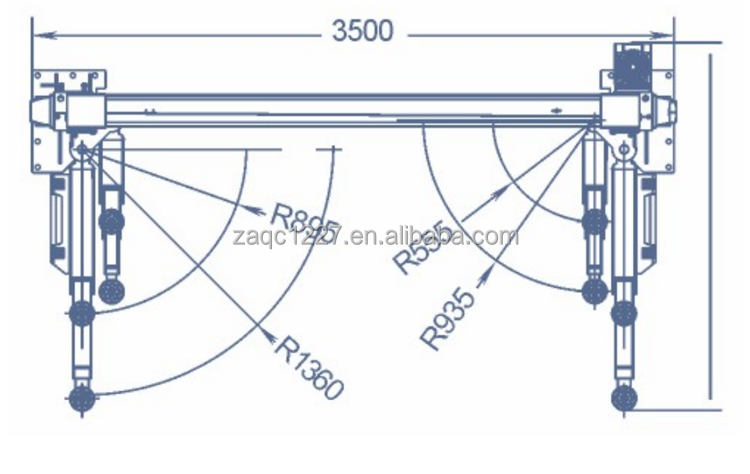

Technical Specifications
Maximum lifting weight5.0T
Lifting height1800mm
Minimum height90mm
Overall height3720mm
Inner width of column2840mm
Passing width2500mm
Overall width3500mm
Lifting time55S
Short arm555-935mm
Long arm895-1360mm
Power2.2kw/3.0kW
Foundation requirement>200mm grade C2530.11
Power supply3P380V50hz
Key Features & Advantages
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

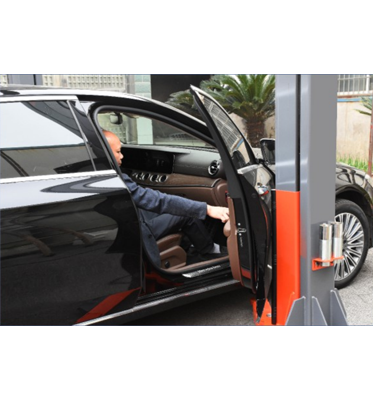

Safety Anti-Collision Strip
Specially designed vehicle door opening safety anti-collision strip for safer operation
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

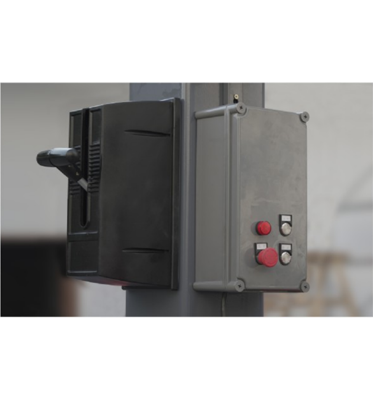

Electronic Control System
Uniquely designed system for safer raising, locking, and lowering operations
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

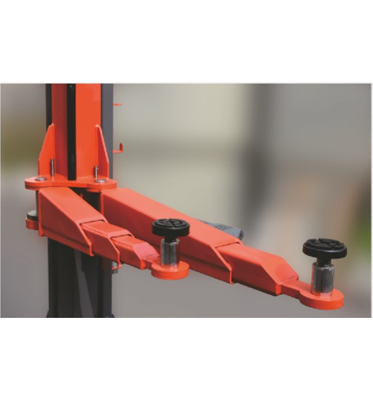

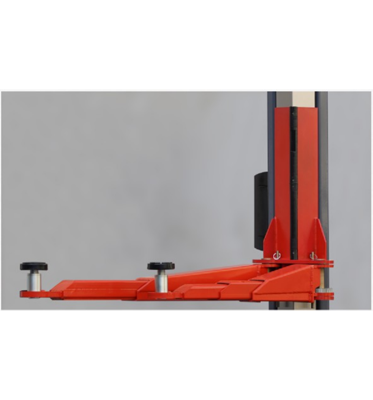

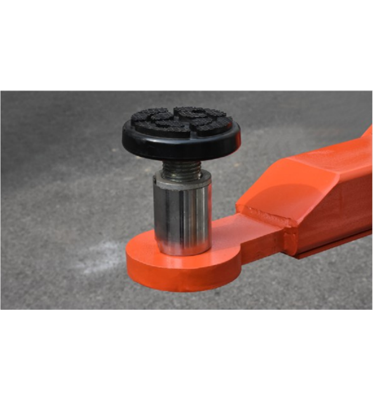

Adjustable Arm Support
Adjustable support arm feet suitable for vehicles with different chassis heights
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine
Single-Side Electronic Control
Single-sided electric-controlled lowering design for convenient and safe operation
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine
Metal Oil Pipes
Durable metal oil pipes that resist breaking and aging
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

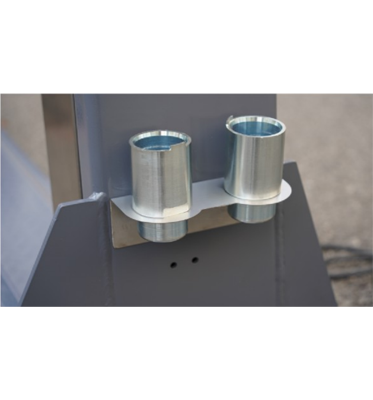

Integrated Tool Rack
Increased tool rack for organized tool placement during operation
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine
Multi-Section Arm Design
Three-section and two-section arm design accommodates different vehicle models
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

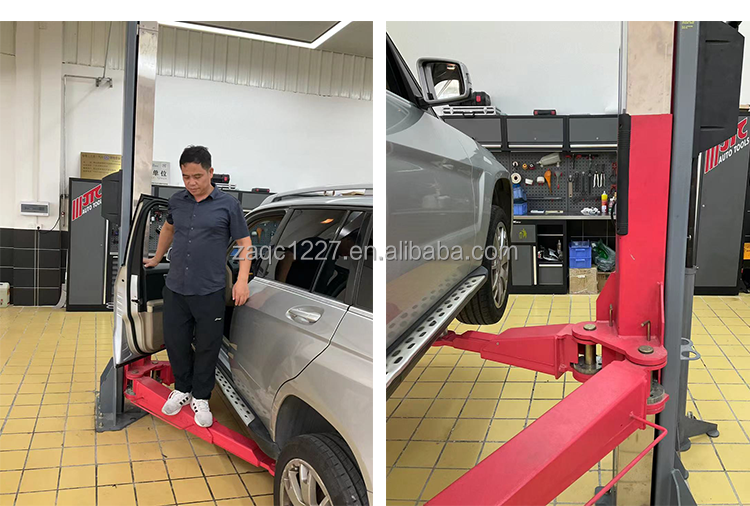

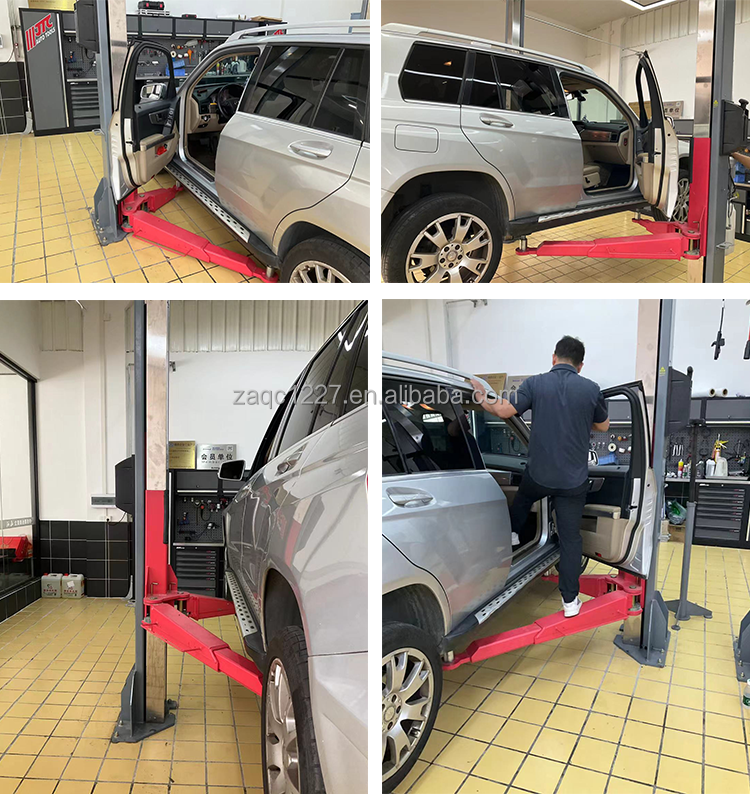

45-Degree Asymmetric Design
Allows more space for door opening when vehicle is lifted
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

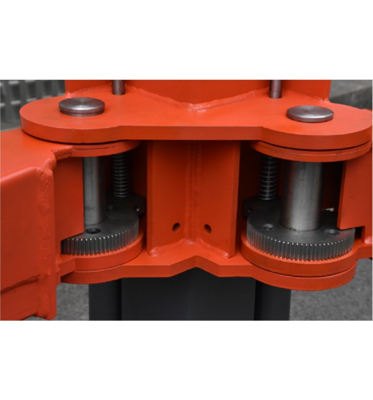

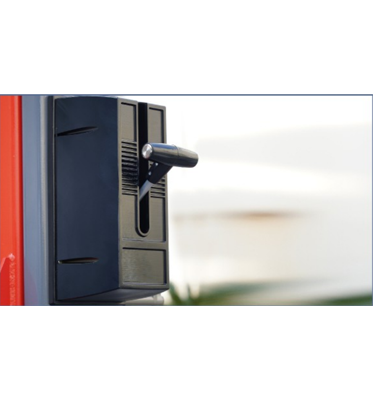

360° Arm Safety Lock
Comprehensive safety locking system with no dead angles
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine

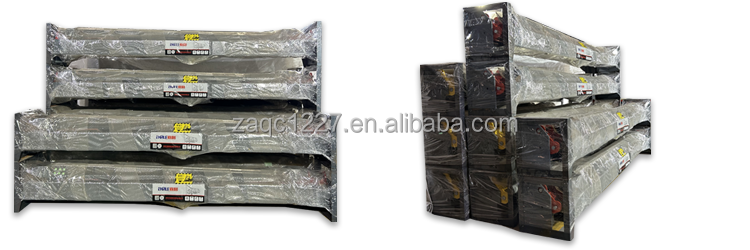

Package Information

5000KG Hydraulic Car Lift Package

Frame3700*580*580mm
Hydraulic station820*250*305mm
Weight750kg
Two Post Hydraulic Auto Lift 5000kg Capacity 1800mm Lift Height Car Lifting Machine
