FKW18 Load Breaker
FKW18 Load Breaker
Specifications
Unit :
s
Items :
Rated active load breaking current
Price :
Negotiate
Data :
50
Packaging Details :
Carton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-10 Days
Place of Origin :
China
Description

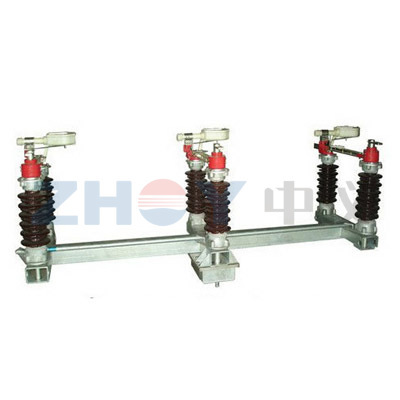

FKW18 Outdoor Load Break Switch

The FKW18 Outdoor load break switch is engineered for high-performance in outdoor 12/24/36kV three-phase AC 50/60Hz power systems. It is robustly composed of a disconnect blade, arc extinguishing chamber, and a precision-engineered operating mechanism.

High Voltage Compatibility: Supports 12kV, 24kV, and 36kV systems.
Robust Construction: Integrated arc extinguishing chamber for safety.
Versatile Operation: Suitable for 50/60Hz power networks.

Technical Specifications

Items Unit Data
Rated voltagekV12,24,36
Rated frequencyHz50,60
Rated currentA630
Rated active load breaking currentA630
Rated loop breaking currentA630
5% rated active load breaking currentA31.5
Rated power transformer breaking currentA1250
Rated short-circuit making currentkA50
Rated short-circuit durations4
