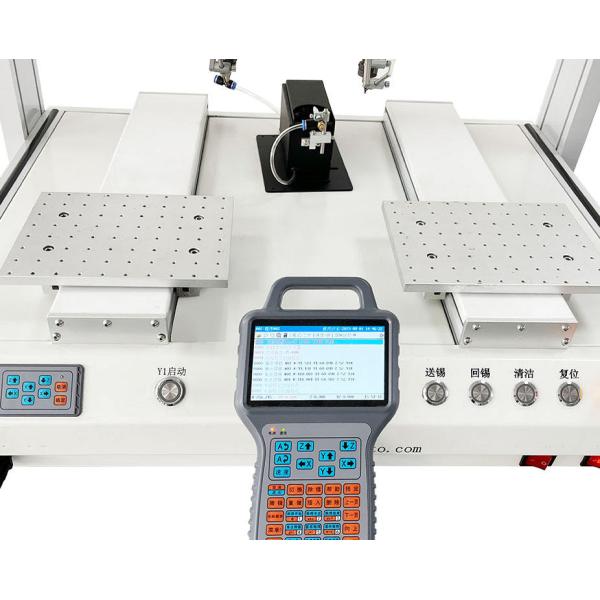

Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Specifications
Certification :
CE, ISO, RoHS
MOQ :
1
Price :
4200
Voltage :
AC 110~230V
Current :
5A
Power :
680W
Weight :
85Kg
Dimensions :
1000*750*850mm
Solder Wire :
0.6~1.5mm
Temperature Accuracy :
±3°
Solder Feeding Speed :
1~50mm/s
Repeat Accuracy :
±0.02mm
Heating Temperature Range :
0-550ºC
Machine Axis Number :
5axis
X Axis :
400mm/2X
Y Axis :
300mm/2Y
Z Axis :
100mm
R Axis :
360°
Description
Professional Automatic PCB Soldering Machine
Advanced electric iron solder machine for precision PCB assembly and manufacturing applications.
Product Parameters
Name Automatic Soldering Robot Place of Origin ShenZhen, China
Applicable Industries Manufacturing Plant, SMT, DIP Key Selling Points Automatic
Video outgoing-inspection Provided Weight 85Kg
Marketing Type New Product 2024 Voltage 220/110V 50~60Hz
Warranty period 1 Year Dimensions 1000*750*850mm
Warranty of core components 3 Years Solder Wire 0.6~1.5mm solder wire
Core Components PLC Temperature Accuracy ±3°
Power 680W Solder Feeding Speed 1~50mm/s
Current 5A Repeat Accuracy ±0.02mm
Technical Specifications
Model ZT-HXJ041R ZT-HXJ441-R ZT-HXJ4411-02 ZT-HXJ4411-02R Fixture Customization
Solder Power 200W 200/400w 600W 200/400W 200/400/600W Need
Heating Temperature Range 0-550ºC
Machine Axis Number 4axis 4axis 4axis 5axis Max moving speed
X Axis 400mm 400mm 400mm 400mm/2X 600mm/s
Y Axis 300mm 300mm/2Y 300mm/2Y 300mm/2Y 600mm/s
Z Axis 100mm 100mm 100mm 100mm 400mm/s
R Axis 360° 360° 0 360° ±0.05° Error
Temperature Errors ±2°
Tin Wire Diameter φ0.6mm-1.5mm
Teaching File Capacity 256MB, up to 999 files, single file up to 1000 points
Air Pressure 4-5kg/cm²
Weight(Kg) 58Kg 68Kg 75Kg 85Kg Customized
Size(mm) 600*750*850 800*750*850 850*750*850 1000*750*850 To order
Product Images
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Manufacturer Profile
Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics sales of accessories.
Products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Our Advantages
  • We are factory manufacturers
  • Reduce overall cost
  • Improve automation level
  • Improve information level
  • Improve product yield
  • Provide customers with the most advanced system solutions for automation equipment
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Packing & Shipping
Professional Automatic PCB Soldering Machine Electric Iron Solder Machine Professional Automatic PCB Soldering Machine Electric Iron Solder Machine
Customer Services
Pre-Sale In Sale After Sale
  • Product Introduction
  • Technical Communication
  • Remote consulting service
  • Show the product
  • Explain in detail how to use the product
  • Answer the questions raised by customers
  • Support video service
  • The whole equipment is guaranteed for 1 year
  • The guide rail/motor/control parts is guaranteed for 3 years
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, start from 2015, There are total about 11-50 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
What can you buy from us?
Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.
Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board. More details please contact me.
May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
