Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Specifications
Certification :
CE, ISO, RoHS
MOQ :
1
Price :
4200
Model NO. :
ZT-HXJ4411-02R
Voltage :
AC 110~230V
Current :
5A
Power :
680W
Weight :
85Kg

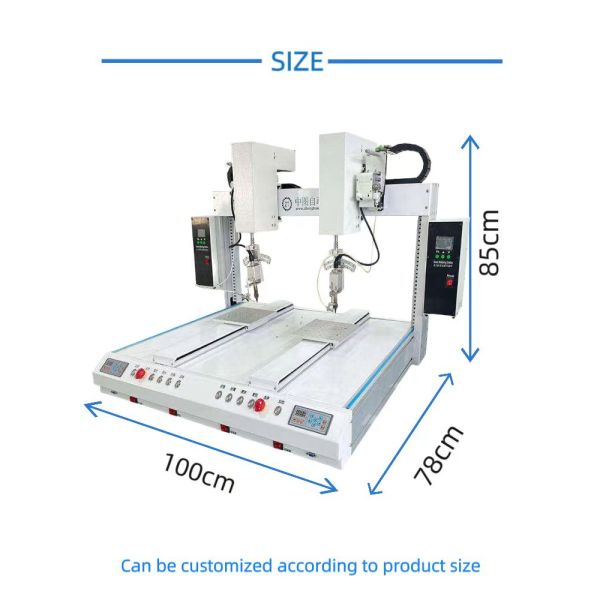

Dimensions :
1000*750*850mm
Temperature Accuracy :
±3°
Solder Feeding Speed :
1~50mm/s
Repeat Accuracy :
±0.02mm
Heating Temperature Range :
0-550ºC
Machine Axis Number :
5axis
X Axis Length :
400mm/2X
Y Axis Length :
300mm/2Y
Z Axis Length :
100mm
R Axis Rotation :
360°
Description
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Product Overview

Advanced automatic soldering robot designed for precision soldering applications in manufacturing plants, SMT, and DIP processes.

Parameter Specification
Name Automatic Soldering Robot
Place of Origin Shenzhen, China
Applicable Industries Manufacturing Plant, SMT, DIP
Key Selling Points Automatic Operation
Weight 85Kg
Marketing Type New Product 2024
Voltage 220/110V 50~60Hz
Warranty Period 1 Year
Dimensions 1000*750*850mm
Warranty of Core Components 3 Years
Solder Wire 0.6~1.5mm solder wire
Core Components PLC
Temperature Accuracy ±3°
Power 680W
Solder Feeding Speed 1~50mm/s
Current 5A
Repeat Accuracy ±0.02mm
Technical Specifications
Model ZT-HXJ041R ZT-HXJ441-R ZT-HXJ4411-02 ZT-HXJ4411-02R Fixture Customization
Solder Power 200W 200/400w 600W 200/400W 200/400/600W Need
Heating Temperature Range 0-550ºC
Machine Axis Number 4axis 4axis 4axis 5axis Max moving speed
X Axis 400mm 400mm 400mm 400mm/2X 600mm/s
Y Axis 300mm 300mm/2Y 300mm/2Y 300mm/2Y 600mm/s
Z Axis 100mm 100mm 100mm 100mm 400mm/s
R Axis 360° 360° 0 360° ±0.05° Error
Temperature Errors ±2°
Tin Wire Diameter φ0.6mm-1.5mm
Teaching File Capacity 256MB, up to 999 files, single file up to 1000 points
Air Pressure 4-5kg/cm²
Weight(Kg) 58Kg 68Kg 75Kg 85Kg Customized
Size(mm) 600*750*850 800*750*850 850*750*850 1000*750*850 To order
Product Images
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Manufacturer Profile

Shenzhen Zhongtu Automation Technology Co., Ltd. is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.

The company specializes in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, and non-standard automation equipment design and manufacturing.

Our products are successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing fields.

Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Our Advantages
We are factory manufacturers
Reduce overall cost
Improve automation level
Improve information level
Improve product yield
Provide advanced system solutions for automation equipment
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Packing & Shipping
Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine Two Heads Automatic Soldering Equipment Rotation Axis Soldering Iron Machine
Customer Services
Pre-Sale In Sale After Sale
  • Product Introduction
  • Technical Communication
  • Remote consulting service
  • Show the product
  • Explain in detail how to use the product
  • Answer customer questions
  • Support video service
  • Whole equipment guaranteed for 1 year
  • Guide rail/motor/control parts guaranteed for 3 years
Frequently Asked Questions
Who are we?

We are based in Guangdong, China, established in 2015, with 11-50 professionals in our office.

How can we guarantee quality?

Always provide pre-production samples before mass production; Always conduct final inspection before shipment.

What can you buy from us?

Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.

Why should you buy from us?

We provide ultra professional service and skills to deliver high performance equipment at competitive prices. Customer success is our success.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.

What is your warranty policy?

We provide 1 Year Warranty for unit machine and 3 years warranty for main board. Contact us for more details.

Can I buy samples?

Yes! You are welcome to place sample orders to test our superior quality and service.

Are you a trading company or factory?

We are professional manufacturers of automation machines since 2015.
