Specifications
Certification :
CE, ISO, RoHS
MOQ :
1
Price :
4200
Model NO. :
ZT-HXJ4411-02
Voltage :
AC 110~230V
Current :
5A
Power :
680W
Weight :
85Kg
Dimensions :
1000*750*850mm
Solder Wire :
0.6~1.5mm
Temperature Accuracy :
±3°
Solder Feeding Speed :
1~50mm/s
Repeat Accuracy :
±0.02mm
Heating Temperature Range :
0-550ºC
Machine Axis Number :
4axis
X Axis :
400mm
Y Axis :
300mm/2Y
Z Axis :
100mm
Description

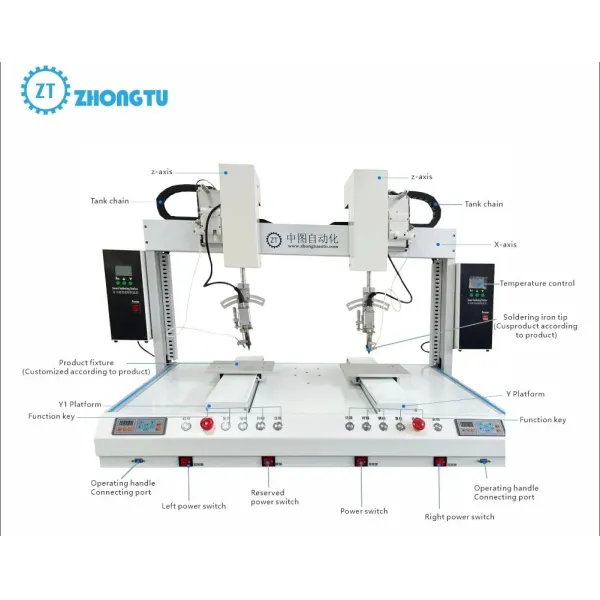

Automatic Soldering Machine Overview
Double Station Table Double Head Rotary Soldering Machine for PCB assembly with advanced automation capabilities.
Product Specifications
Parameter Value
Name Automatic Soldering Robot
Place of Origin ShenZhen, China
Applicable Industries Manufacturing Plant, SMT, DIP
Key Selling Points Automatic
Video Outgoing Inspection Provided
Weight 85Kg
Marketing Type New Product 2024
Voltage 220/110V 50~60Hz
Warranty Period 1 Year
Dimensions 1000*750*850mm
Warranty of Core Components 3 Years
Solder Wire 0.6~1.5mm solder wire
Core Components PLC
Temperature Accuracy ±3°
Power 680W
Solder Feeding Speed 1~50mm/s
Current 5A
Repeat Accuracy ±0.02mm
Technical Specifications by Model
Model ZT-HXJ041R ZT-HXJ441-R ZT-HXJ4411-02 ZT-HXJ4411-02R Fixture Customization
Solder Power 200W 200/400w 600W 200/400W 200/400/600W Need
Heating Temperature Range 0-550ºC
Machine Axis Number 4axis 4axis 4axis 5axis Max moving speed
X Axis 400mm 400mm 400mm 400mm/2X 600mm/s
Y Axis 300mm 300mm/2Y 300mm/2Y 300mm/2Y 600mm/s
Z Axis 100mm 100mm 100mm 100mm 400mm/s
R Axis 360° 360° 0 360° ±0.05° Error
Temperature Errors ±2°
Tin Wire Diameter φ0.6mm-1.5mm
Teaching File Capacity 256MB, up to 999 files, single file up to 1000 points
Air Pressure 4-5kg/cm²
Weight(Kg) 58Kg 68Kg 75Kg 85Kg Customized
Size(mm) 600*750*850 800*750*850 850*750*850 1000*750*850 To order
Product Images
Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB
Manufacturer Profile
Shenzhen Zhongtu Automation Technology Co., Ltd. is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service with advanced design concepts and technologies.
The company specializes in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, and non-standard automation equipment design and manufacturing.
Products are successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing fields.
Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB
Our Advantages
  • We are factory manufacturers
  • Reduce overall cost
  • Improve automation level
  • Improve informatization level
  • Improve product yield
  • Provide customers with the most advanced system solutions for automation equipment
Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB
Trade Exhibitions
Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB
Packaging & Shipping
Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB Automatic Soldering Machine Double Station Table Double Head Manufacturers Rotary Soldering Machine for PCB
Customer Services
Pre-Sale In Sale After Sale
  • Product Introduction
  • Technical Communication
  • Remote consulting service
  • Show the product
  • Explain in detail how to use the product
  • Answer customer questions
  • Support video service
  • Whole equipment guaranteed for 1 year
  • Guide rail/motor/control parts guaranteed for 3 years
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2015, with 11-50 employees in our office.
How can we guarantee quality?
Always provide pre-production samples before mass production and conduct final inspection before shipment.
What can you buy from us?
Soldering machines, precision spot welding machines, glue dispensers, screw machines.
Why should you buy from us?
We provide ultra professional service and skills to deliver high performance equipment at competitive prices.
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your warranty policy?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.
Can I buy samples?
Yes! You are welcome to place sample orders to test our superior quality and service.
Are you a trading company or factory?
We are professional manufacturers of automation machines since 2015.
