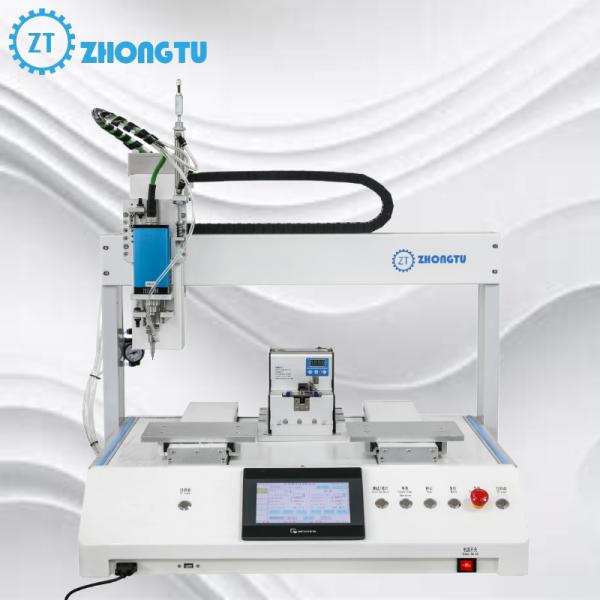

Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Specifications
MOQ :
1
Price :
6000
Controlsystem :
PLC Control
Lock Screw Machine :
4 Axis screw locking machine
Screwdiameterrange :
2mm - 6mm
Model No :
ZT-LSJ4411-LD
Safetyfeatures :
Emergency Stop Button, Safety Cover
Screwdriver Voltage :
DC 12V
Screwdriver Head :
Single/Double
Production Capacity :
100000
Machinetype :
Automatic
Program Storage :
1000 sets
Screw Feeder Type :
Vibration Plate
Control System :
PLC control
Description

Professional automated screw tightening, locking, and fastening solution for manufacturing applications.
Product Specifications
Product NameScrew Locking Machine
ConditionNew
Applicable IndustriesManufacturing Plant, Household Appliances Factory
VoltageAC 110-220V 50/60HZ
Dimensions800 * 700 * 850mm (W*D*H)
Adjustable Torque Range0.5~20Nm
Weight85kg
Positioning Accuracy±0.02mm
Locking Screw SpecificationsScrew M0.8 to M5
Work Efficiency1.2-1.5 seconds per piece
Percent of Pass≥99.5%
Model Specifications
ModelZT-LSJ041ZT-LSJ0441-01TZT-LSJ0441-02TZT-LSJ4411-BKBFixture Customization
Screw FeedingPick and Place, MagneticAs Needed
Working Air Pressure0.4~0.6MPA
Adjustable Torque Range0.8-20Nm
Machine Axis Number3 axis4 axis4 axis4 axisMax moving speed
X Axis400mm400mm400mm400mm/2X600mm/s
Y Axis300mm300mm/2Y300mm/2Y300mm/2Y600mm/s
Z Axis100mm100mm100mm100mm400mm/s
Weight (Kg)50Kg65Kg65Kg85KgCustomized
Size (mm)600*750*850800*750*850850*750*8501000*750*850To order
Product Features
  • High precision positioning (±0.02mm)
  • Wide torque adjustment range (0.5-20Nm)
  • High efficiency (1.2-1.5 seconds per piece)
  • Excellent pass rate (≥99.5%)
  • Multiple screw feeding options
  • Advanced microcontroller with touch panel control
  • USB and RS232 communication ports
  • High safety level design
Product Images
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Manufacturer Profile
Shenzhen Zhongtu Automation Technology Co., Ltd. integrates advanced design concepts and technologies as an automation equipment enterprise specializing in R&D, design, manufacturing, debugging, and after-sales service.
Company Capabilities
  • Tooling fixtures and hardware jigs manufacturing
  • Machining and non-standard mechanical parts processing
  • Production line optimization solutions
  • Automated production line equipment transformation
  • Non-standard automation equipment design and manufacturing
  • Automatic loading and unloading manipulator systems
Our products are successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing fields.
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Our Advantages
  • Factory direct manufacturers
  • Reduce overall operational costs
  • Improve automation and information levels
  • Enhance product yield and quality
  • Provide advanced system solutions for automation equipment
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Packaging & Shipping
Multi-axis 3D Space Automatic Screw Locking Machine Custom Non-standard Screw Fastening Equipment for Complex Workpiece Assembly
Customer Services
Pre-Sale ServicesIn-Sale ServicesAfter-Sale Services
  • Product Introduction
  • Technical Communication
  • Remote Consulting Service
  • Product Demonstration
  • Detailed Usage Instructions
  • Customer Query Resolution
  • Video Technical Support
  • 1-Year Full Equipment Warranty
  • 3-Year Warranty on Guide Rail/Motor/Control Parts
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2015, with 11-50 professionals in our office.
How do we guarantee quality?
Pre-production samples before mass production; final inspection before shipment.
What products do we offer?
Soldering machines, Precision spot welding machines, Glue dispensers, Screw machines.
Why choose us over other suppliers?
Ultra-professional service and expertise to provide high-performance equipment at competitive prices.
What services do we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your warranty policy?
1-Year Warranty for unit machine and 3-year warranty for main board.
Can I purchase samples?
Yes! Welcome to place sample orders to test our superior quality and service.
Are you a trading company or manufacturer?
We are professional automation machine manufacturers since 2015.
