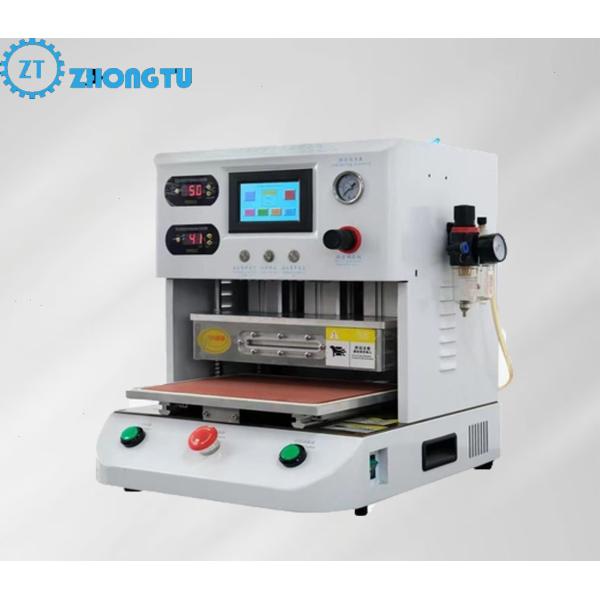

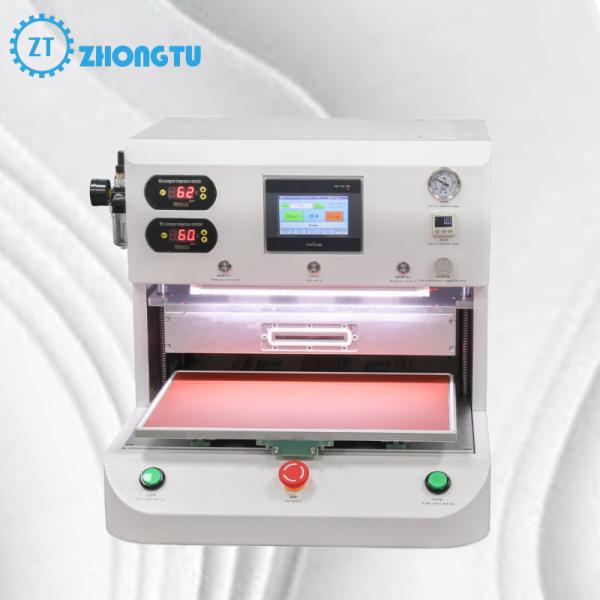

Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Specifications
Power :
1200W
Temperature range :
0-180 degrees
Size :
510*640*500mm
MOQ :
1
Packaging Details :
wood case
Laminating plate size :
9 inches
Operating Air Pressure :
4-8KGF/C ㎡
Function :
Lamina Glass With LCD Screen by Vacuum
Payment Terms :
T/T
Vacuum value :
99%
Vacuum Range :
0~150Kpa
Supply Ability :
1000set/month
Weight :
35KG
Model Number :
ZT-ZQBY310
Model NO. :
ZT-ZQBY310
Brand Name :
ZhongTu
Operation mode :
Automatic
Dimensions :
40*40*50cm
Production capacity :
1000
Price :
1200
Lamination Precision :
±0.1mm
Certification :
CE, ISO, RoHS
Voltage :
220V / 110V 50/60HZ
Place of Origin :
China
Processing time :
15 seconds
Description
15 inch OCA Vacuum Lamination Machine For PCB Dry Film Exposure Laminating
Product Overview
The vacuum screen press, also known as mobile phone screen press, is a specialized device for replacing mobile phone LCD monitors.
It operates by creating a vacuum state to achieve a tight fit of the mobile phone screen.
Key Features
  • High Precision Vacuum Lamination (-0.095MPa) – Bubble-free, 99% yield for LCD/OLED bonding.
  • Fast 15s Lamination Cycle – 2–4x efficiency vs traditional machines.
  • 0–180°C Dual Independent Heating – PID control ±2°C for OCA/SCA curing
  • Adjustable Pressure (0–0.6MPa) & Time – Multi-stage settings for diverse products.
  • Rigid Frame & Anti-Rotation Rods – ±0.02mm parallelism, stable pressing quality.
  • Compact Desktop Design – Small footprint, easy integration into production lines
  • PLC + Touch Screen Control – One-click auto operation, 100 programs storage
  • 4–32 Inch Wide Compatibility – For mobile/tablet LCD, OLED, touch screen repair
  • CE Certified & Imported Components – Reliable performance, low maintenance.
  • 1-Year Warranty & Customization – Global support, OEM/ODM available.
Technical Specifications

Model

ZT-ZQBY510(9inch)

ZT-ZQBY310(15inch)

ZT-THJ036(32inch)

Equipment Application

Used for vacuum lamination of various precision products, especially suitable for lamination of electronic display products such as mobile phones and tablets. It can achieve bubble-free and high transmittance lamination effect, and can also adapt to the lamination needs of various types of products such as curved surfaces and flat surfaces

Applicable Industries

Electronic manufacturing, optical component processing and other industries

Power

Approx. 850W

Approx. 1200W

Approx. 2200W

Input Voltage

AC 110-240V/50-60HZ

Overall Machine Dimensions (L/W/H)

400 × 500 × 500mm

510mm × 640mm × 500mm

930mm × 1400mm × 1350mm

Effective Platform Dimensions (L/W/H)

290 × 220 × 45mm

400mm × 640mm × 50mm

700mm × 490mm × 50mm

Transmission Method

Pneumatic transmission, upper and lower pressing type

Precision Guide Rail

Taiwan HIWIN/TBI Brand

Lamination Precision

±0.1mm (meets the precision requirements of precision lamination equipment)

Control System

Touch screen + PLC,enabling precise parameter setting and control

Vacuum Range

0~150Kpa, adjustable according to operation needs to ensure bubble-free lamination

Upper and Lower Platforms

Heatable, temperature adjustment range 0~85℃

Parameter Settings

Adjustable pressing force and holding time, to suitable different products

Communication Method

USB + R232

Operating Environment Humidity

20-90%

Operating Air Pressure

4-8KGF/C ㎡

Operating Vacuum

Need used with the dedicated vacuum pump ( configured by customer)

weight

30KG

35KG

350KG


Product Images

Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly

Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly
Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly

Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly










Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly

Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly



Desktop Vacuum Laminator Adjustable Temp Pressure Vacuum Lamination Equipment For Small Assembly

✅ Why Zhongtu


10+ years in automation R&D & manufacturing
In-house machining & assembly
CE/RoHS compliant
1-year warranty +3 years core components warranty+ 24h after-sales support
