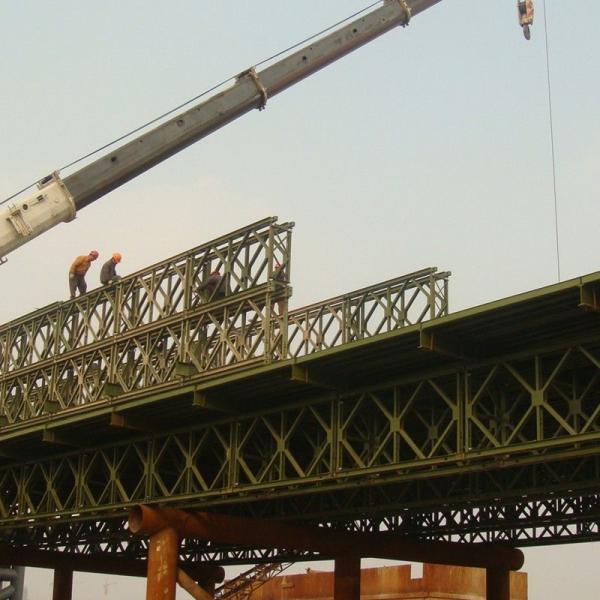

Galvanized Steel Structures Bailey Bridge/stainless Steel Light Calbe Bailey Bridge

The core products of Jiangsu Zhonghai Bridge Equipment Co., Ltd. mainly include the following categories:

Bailey bridge related products
- **Prefabricated highway steel bridge (Bailey bridge)**: This is the company's core product, which is widely used in domestic and foreign infrastructure construction, national defense preparedness, emergency rescue and other fields. Bailey bridges are processed and manufactured according to the standards of the "Technical Specifications for Highway Bridge and Culvert Construction" (JTJ041-2008) issued by the Ministry of Transport.
- **Bailey sheet**: Can be used for highway bridges, assembled gantry cranes, guide beams, bridge erection machines, hanging baskets, etc.
- **Bailey beam**: Used to support and construct bridge structures.
- **Bridge deck**: Used for laying the deck of Bailey bridges.
- **Steel trestle**: A temporary or permanent bridge structure used to cross rivers, valleys, etc.
- **Bailey frame**: A temporary structure used to support and build bridges.

Other bridge accessories and equipment
- **Support frame**: Used to support bridge structures and ensure stability during construction.
- **Strengthening chords**: used to enhance the strength and stability of bridge structures.
- **Steel bridge accessories**: include a variety of accessories used in steel bridge construction.
- **Right angle screws**: fasteners used to connect and fix bridge structures.
- **Steel support**: used for support structures in bridge construction.

Special products
- **Robots**: The company also produces robots for processes such as welding.

Jiangsu Zhonghai Bridge Equipment Co., Ltd. has established a good reputation in the field of bridge equipment manufacturing with its high-quality products and technological innovation.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
