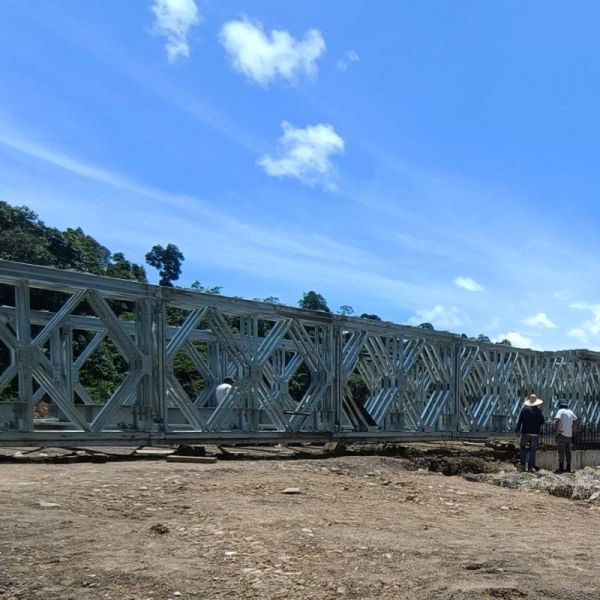

Skywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35m
Skywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35m
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Lane :
Single lane 4.2m，Double Lane 7.35m
Surface Finish :
Painted or Galvanized
Name :
Bailey Bridge
Net Width :
3.15m,4.2m,7.35m 10.5m
Material :
Steel
Transportation :
Can be transported by truck or helicopter
Description

Steel Skywalk Pedestrian Bridge/steel Structure Skywalk Pedestrian Bridge


According to the search results, the new Bailey bridge being developed by Jiangsu Zhonghai Bridge Equipment Co., Ltd. is expected to become the company's core competitiveness in the next 5 to 10 years. The company is committed to developing a 450-type Bailey bridge with a span of 83 meters and a load of 90 tons, and its performance will surpass similar foreign products. At present, the new Bailey bridge has simultaneously applied for certification of three sets of standards in China, the United States and Europe, with the goal of further expanding the global market.



Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Skywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35m

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Skywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35m

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Skywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35mSkywalk Steel Pedestrian Bridge Single Lane 4.2m Double Lane 7.35m

​



Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
