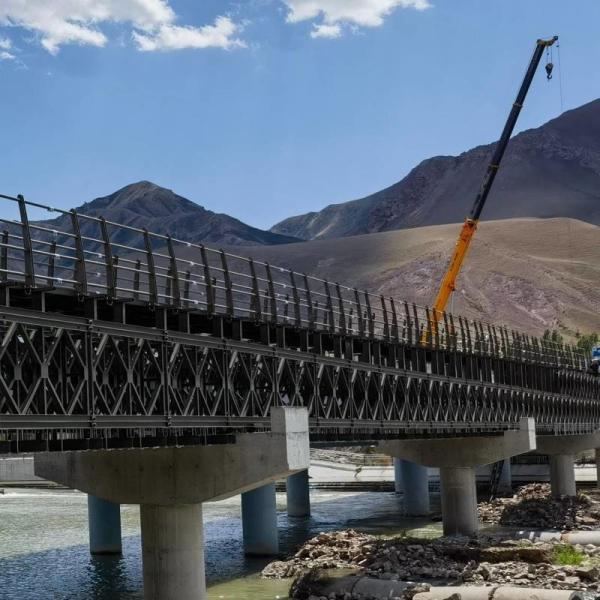

Panel Stand Portable Bailey/emergency Panel Bridges

For Bailey bridges with slightly cracked bridge decks, the inspection frequency should be determined according to the specific use and environmental conditions of the bridge. Generally speaking, the recommended inspection cycle is as follows:

1. **Daily inspection**: If the Bailey bridge is in high-frequency use (such as a busy traffic section), it is recommended to conduct an inspection once a week. This can timely detect whether the minor cracks have a tendency to expand and ensure the safety of the bridge.

2. **Regular inspection**: For Bailey bridges in general use, it is recommended to conduct a comprehensive inspection once a month. Focus on checking whether the cracked parts of the bridge deck have signs of further development, and check whether other components also have potential problems.

3. **Special environment inspection**: If the Bailey bridge is in a harsh environment (such as high humidity, strong wind, heavy rain, etc.), the inspection frequency should be appropriately increased. For example, after a heavy rain, an inspection should be carried out immediately to ensure that the cracks in the bridge deck have not been aggravated by rain erosion.

During the inspection, if it is found that the minor cracks have a tendency to expand or affect the normal use of the bridge, repair measures should be taken immediately. At the same time, establish detailed inspection records to record the time of each inspection, problems found and treatment measures, so as to better track the condition of the bridge.

Specifications:

​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
