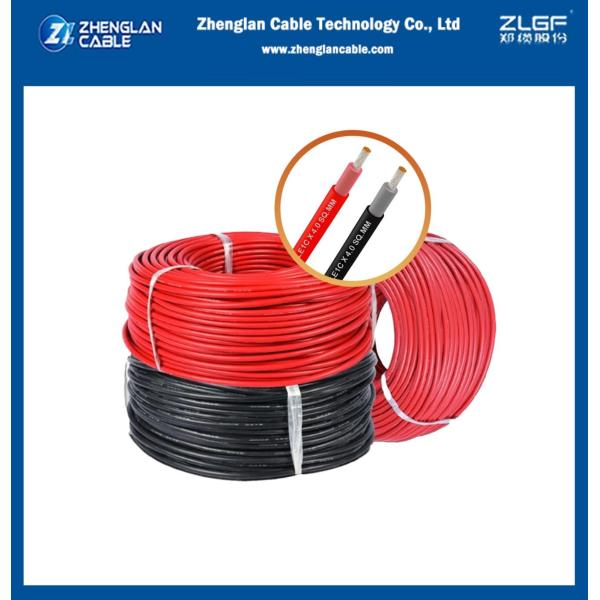

Solar Cable DC1.5KV Tinnd Copper/xlpo/xlpo 1x6mm2 Black & Red Photovoltaic Solar Cable H1Z2Z2-K
Solar Cable DC1.5KV Tinnd Copper/xlpo/xlpo 1x6mm2 Black & Red Photovoltaic Solar Cable H1Z2Z2-K
Solar Cable DC1.5KV Tinnd Copper/xlpo/xlpo 1x6mm2 Black & Red Photovoltaic Solar Cable H1Z2Z2-K
Solar Cable DC1.5KV Tinnd Copper/xlpo/xlpo 1x6mm2 Black & Red Photovoltaic Solar Cable H1Z2Z2-K
Solar Cable DC1.5KV Tinnd Copper/xlpo/xlpo 1x6mm2 Black & Red Photovoltaic Solar Cable H1Z2Z2-K
Solar Cable DC1.5KV Tinnd Copper/xlpo/xlpo 1x6mm2 Black & Red Photovoltaic Solar Cable H1Z2Z2-K
Specifications
Brand Name :
Zhenglan Cable
Model Number :
Solar cable 6mm2 Black&Red
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
China
MOQ :
10000meters single color
Price :
Negotiable
Payment Terms :
T/T, L/C, ,Western Union
Supply Ability :
80000M/DAY
Delivery Time :
7-15DAY
Packaging Details :
200m/roll, 500m/roll, 1000m/drum

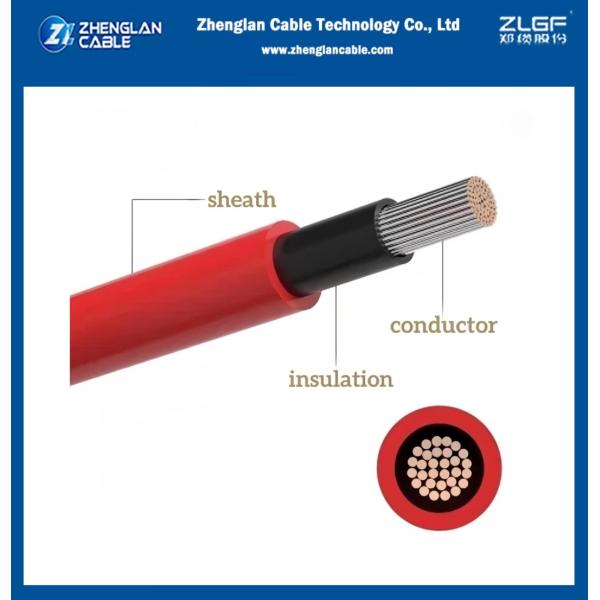

Material :
Tinned Copper
Insulation :
cross linkedin polyolefin
Outer sheath :
cross linkedin polyolefin
Size :
6mm2
Standard :
H1Z2Z2-K
Voltage :
DC 1.5KV
Description

APPLICATION

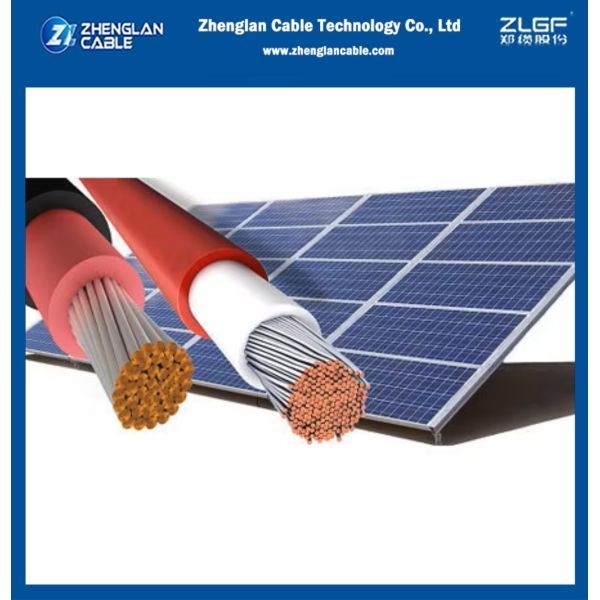

Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.

CHARACTERISTICS

Voltage Rating Uo/U

AC: 1000/1000V

DC: 1500/1500V

Maximum Voltage (Umax)

1800V

Test Voltage

6.5kV AC

Temperature Rating

Fixed: -40°C to +90°C

Minimum Bending Radius 5 x overall diameter

Maximum Conductor Temperature

+120°C (for 20000h)

type Cross Sectional Area(mm2) Conductor structure( Strand /mm) diameter(mm) insulation thickness(mm) sheat thickness(mm) cable diameter(mm) DC resistance at 20°C(Ω/km)
PV1-F 6 84/0.3 3.2 1.0 0.9 7.0 3.11
